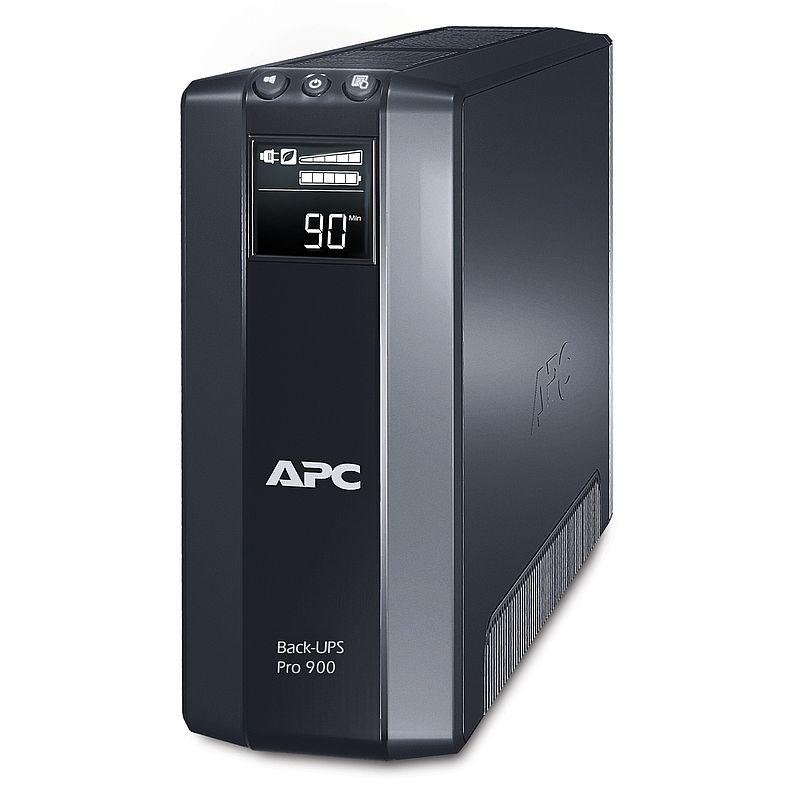

Stromsparende APC-Back-UPS Pro 900, 230 V
BR900GI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Rated power in W | 540 W |
| Rated power in VA | 900 VA |

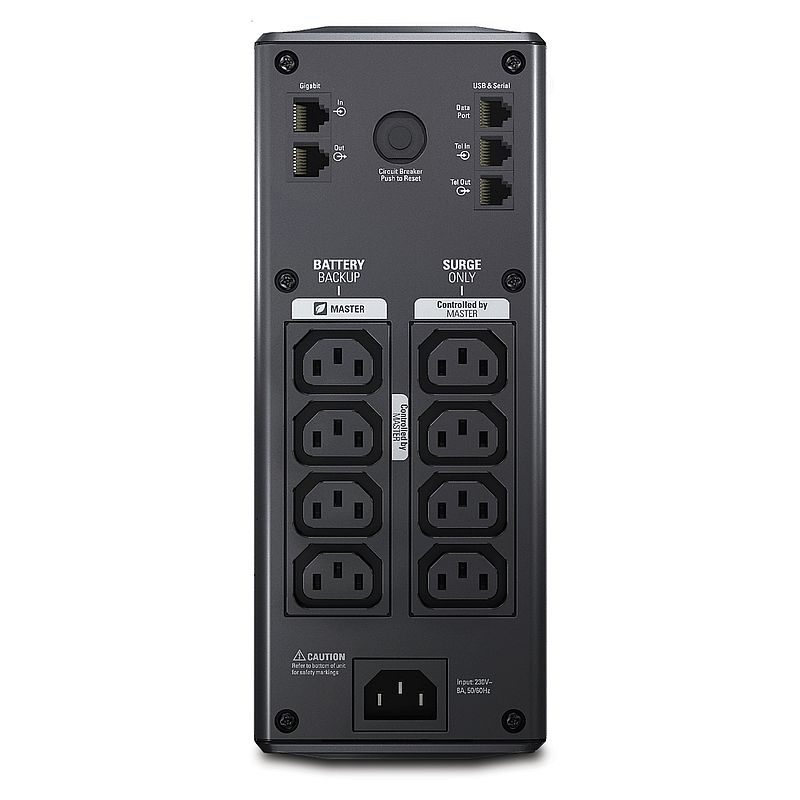

| Output connection | 4 IEC 60320 C13 4 IEC 60320 C13 Spitze 2 IEC-Steckbrücken |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Efficiency at full load | 156 - 300 V einstellbar 176 - 294 V |
| Maximum input current | 8 A |
| Switching current capacity | 10 A |
| Maximum configurable power in W | 540 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation 50/60 Hz +/-1 Hz nicht synchronisiert |
| Crest factor | 3:1 |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Bypass type | Integrierter Bypass |
| Maximum configurable power in VA | 900 VA |
| Transfer time | 8 ms typisch, 10 ms max. | Zusatzmerkmale |
| Number of cables | 1 |
| Redundant | No |
| Color | Schwarz |
| Height | 25 cm |
| Width | 10 cm |
| Depth | 38,2 cm |
| Product weight | 10,72 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Battery capacity | 7,0 AH |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Surge energy rating | 613 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 10 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: unverzögert |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Range of product | Back-UPS Pro | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 8 h |
| RBC quantity | 1 |
| Battery voltage | 24 V |
| Battery charging power | 20 W bewertet |
| Battery life | 3…5 Jahre |
| Battery graph comment | Dieses Diagramm basiert auf gemessenen Autonomiezeitangaben. Alle Messungen wurden mit neuen, vollständig geladenen Batterien bei ohmscher Ausgangslast (LF = 1,0) durchgeführt. Die tatsächliche Autonomiezeit kann von den Werten in diesem Diagramm abweichen. Die tatsächliche Autonomiezeit ist abhängig von verschiedenen Variablen wie Alter der Batterie, Batterieladezustand, Umgebungsbedingungen und Eigenschaften der angeschlossenen Last | Montage |
| Product certification | A-Tick C-Tick CE |
| Marking | GS-Zeichen |
| Equipment protection policy | Kompletter Nutzungszeitraum: 200.000 AUD Kompletter Nutzungszeitraum: 150.000 Euro Kompletter Nutzungszeitraum: 75.000 GBP |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 9842 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…14999,8 m |
| Acoustic level | 45 dBA | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 11,7 kg |
| VPE 1 Höhe | 33,7 cm |
| VPE 1 Breite | 22,5 cm |
| VPE 1 Länge | 48,7 cm |
| SCC14 | 10731304279591 |
| VPE 2 Menge | 20 |
| VPE 2 Art | P12 |
| VPE 2 Höhe | 117 cm |
| VPE 2 Breite | 80 cm |
| VPE 2 Länge | 120 cm |
| VPE 2 Gewicht | 278,6 kg |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BR900GI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
| Austauschbare Batterie | Nein |
