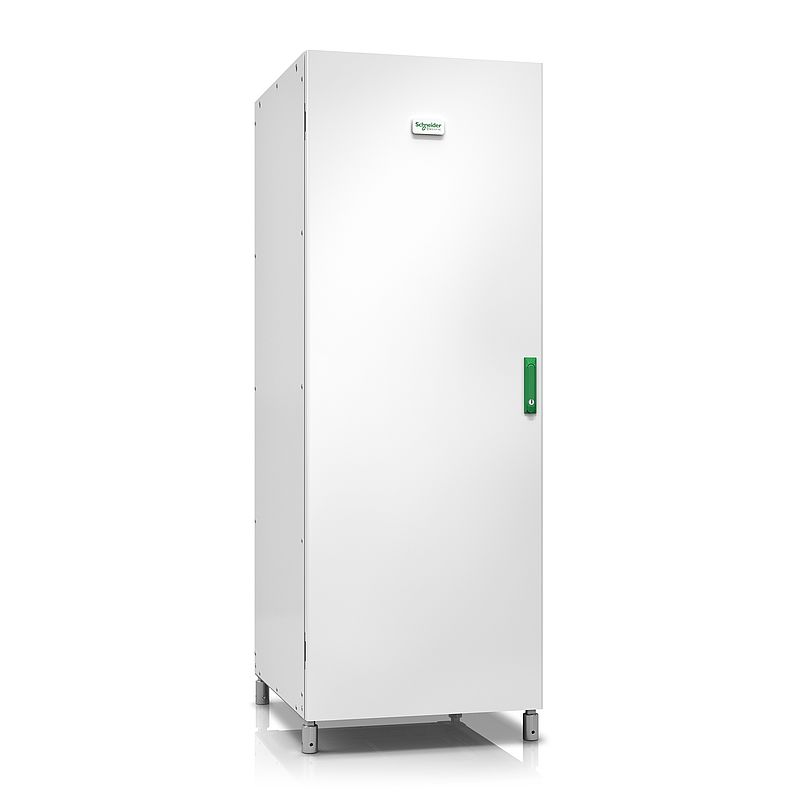

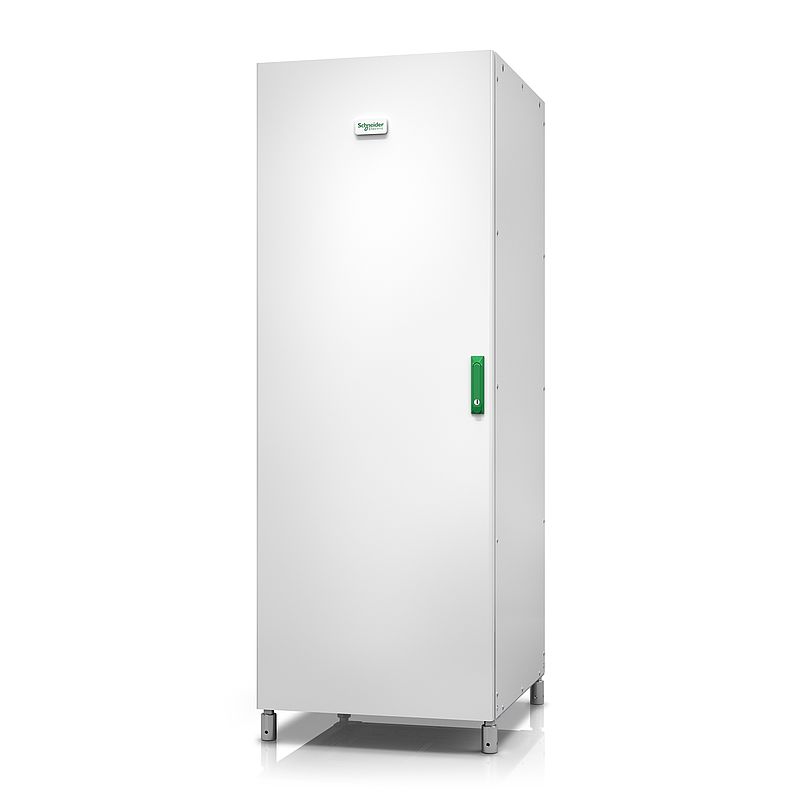

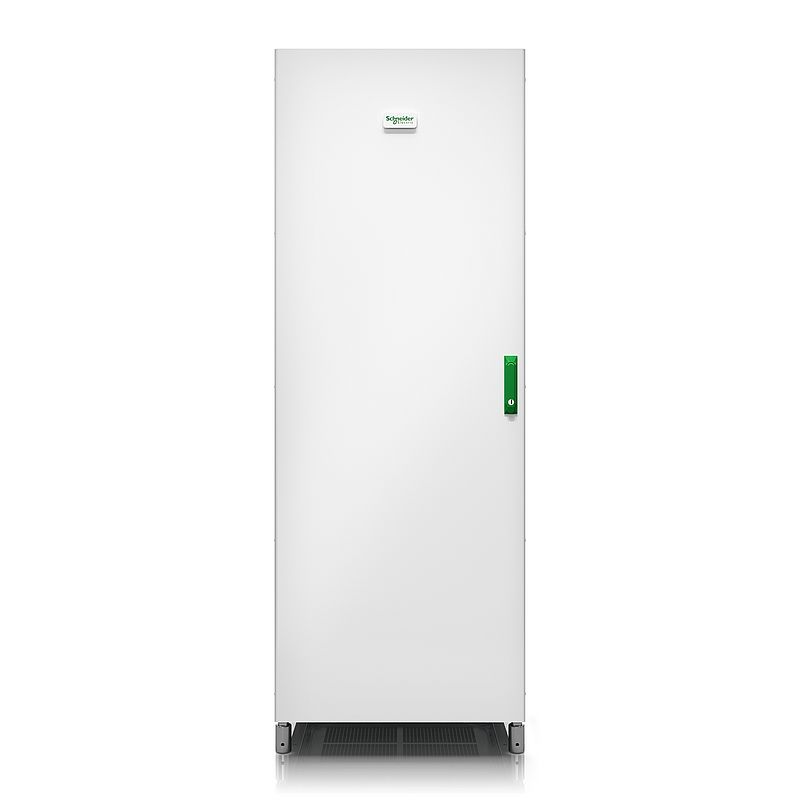

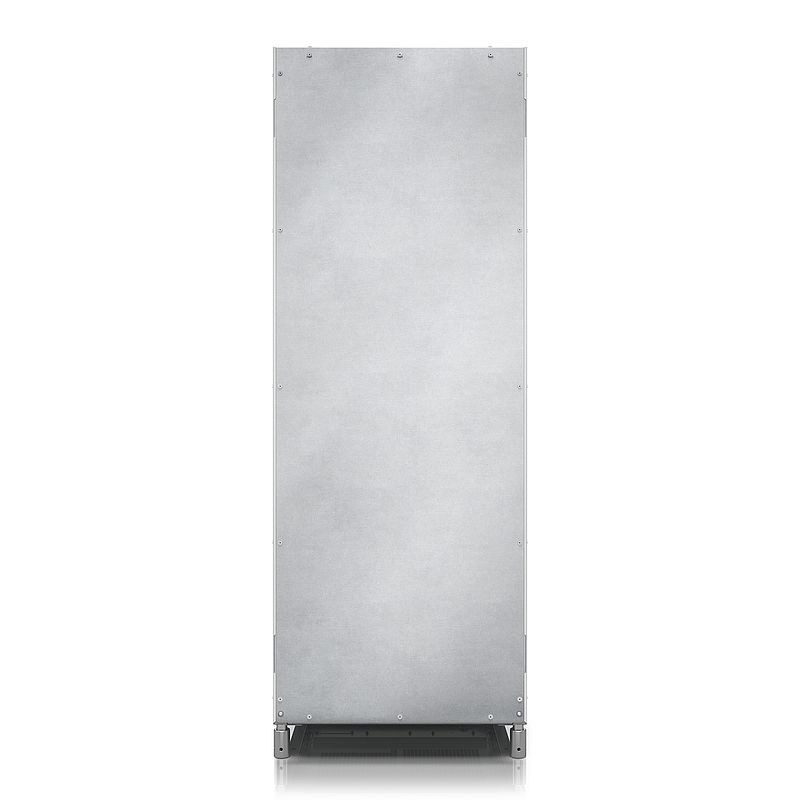

Klassischer Batterieschrank, IEC, 700mm breit, Konfiguration E, Galaxy VS/VL und Easy UPS 3-Phase Modular
GVSCBC7E
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Declaration of conformity
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Specification guide
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Catalog
|
Download |
Dieses Produkt ist kompatibel mit
: Kompatible Produkte
(1)
Spezifikationen
| Übersicht | |
|---|---|

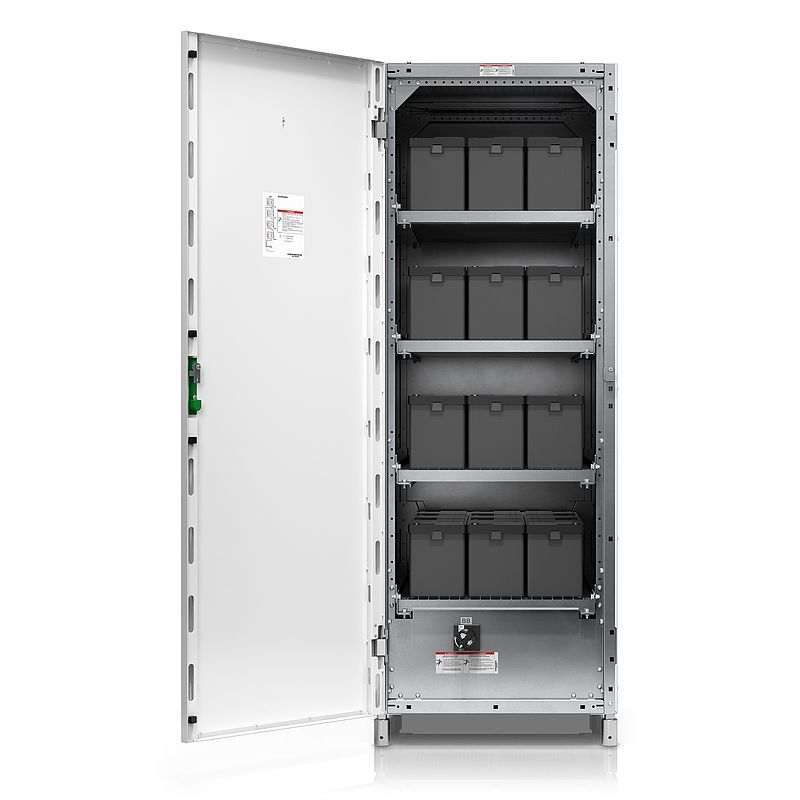

| Ausführung | Battery cabinet that includes batteries and battery breaker. |
| Lieferzeit | Sonderbestellung - Lieferzeit auf Anfrage | Hauptmerkmale |
| Batterietyp | VRLA |
| Geliefertes Zubehör | Installationsanleitung |
| Produkt- oder Komponententyp | Battery cabinet |
| Kompatible Produktfamilie | Galaxy VS |
| Baureihe | Galaxy VS | Abmessungen |
| Farbe | Weiß |
| Höhe | 190 cm |
| Breite | 71 cm |
| Tiefe | 84,5 cm |
| Produktgewicht | 790 kg | Umgebung |
| Umgebungstemperatur bei Betrieb | 0…40 °C |
| Relative Luftfeuchtigkeit | 0…95 % nicht kondensierend |
| Umgebungstemperatur bei Lagerung | -15…40 °C | Batterien und Überbrückungszeit |
| Anzahl der gefüllten Batterieschächte | 46 |
| Gehäusevariante | Geschlossener Batterieschrank | Vertragliche Gewährleistung |
| Gewährleistung | 18 Monate | Verpackungseinheiten |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 1 Höhe | 190 cm |
| VPE 1 Breite | 71 cm |
| VPE 1 Länge | 84,5 cm |
| VPE 1 Gewicht | 790 kg |
Nachhaltigkeit
Environmental data
EU-RoHS-Richtlinie
|
Konform EU-RoHS-Deklaration |
| REACh frei von SVHC | Ja |
| SCIP-Nummer | 7547f066-9302-46d9-96e9-461928dd6901 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | No |
