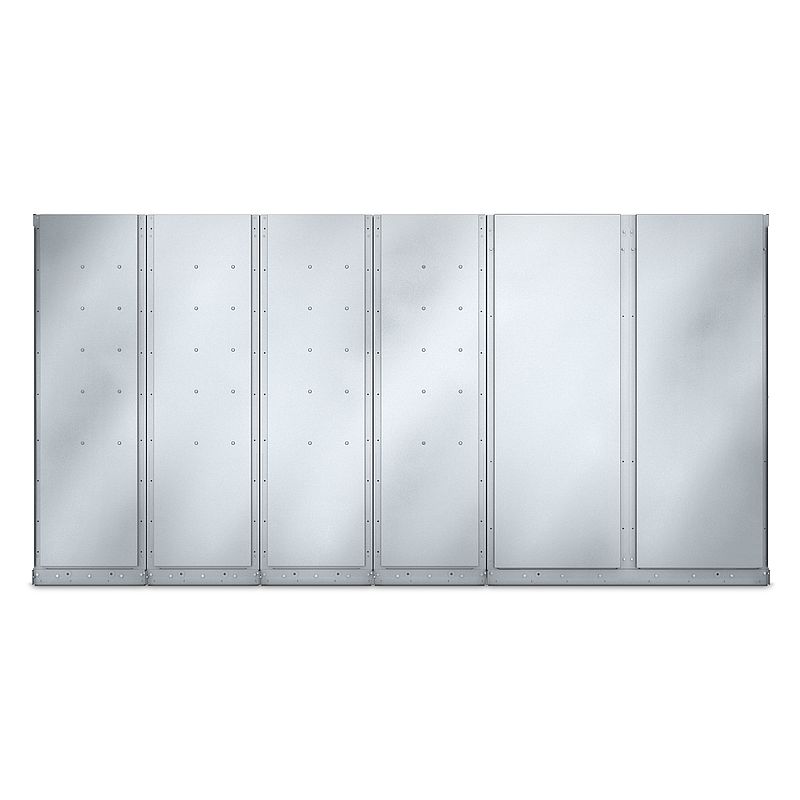

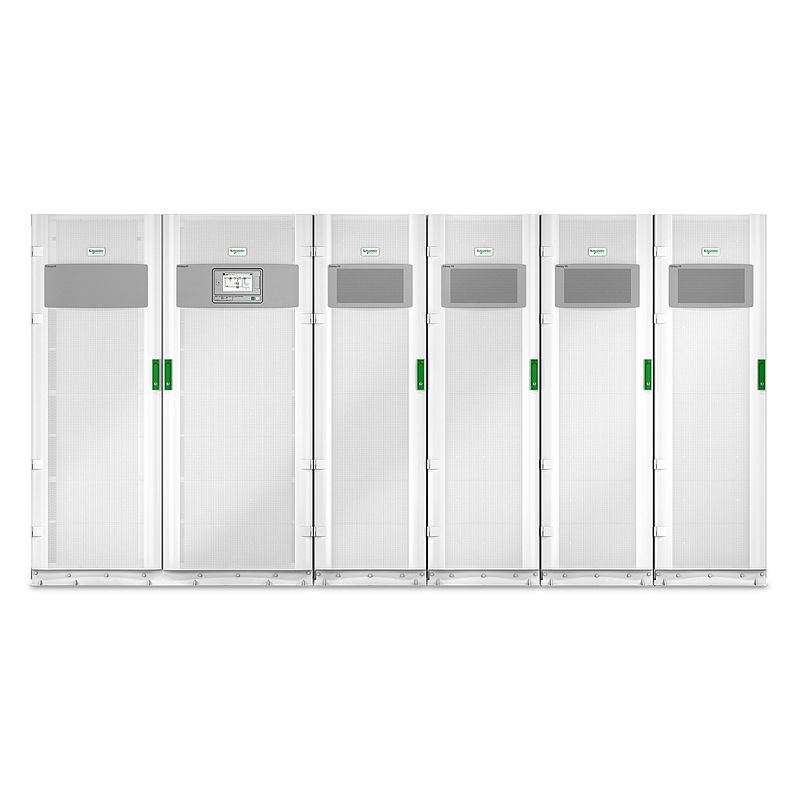

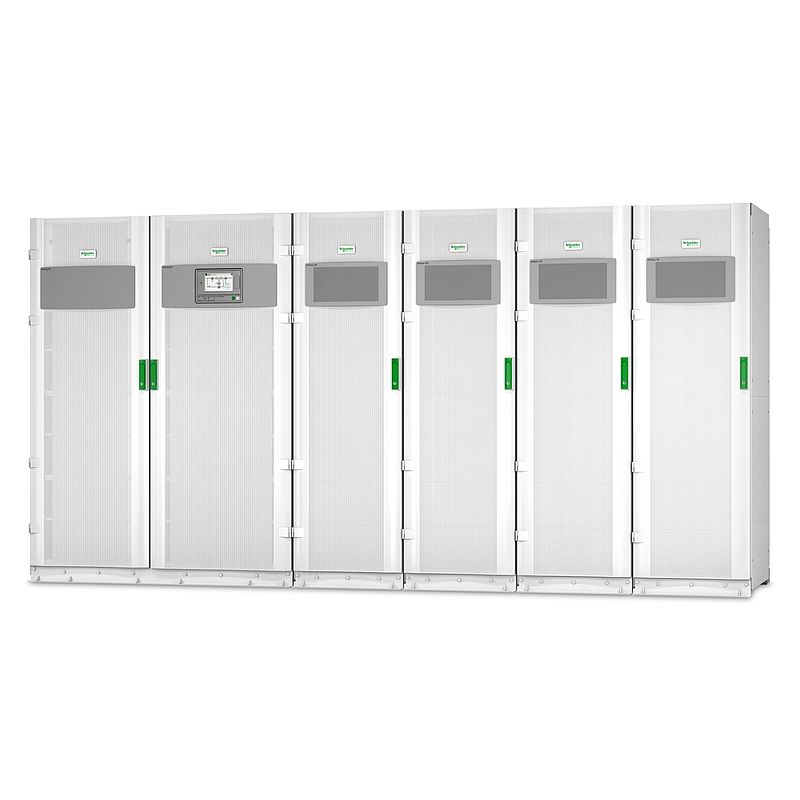

Galaxy VX, 750 kVA, N+1 Redundanz, 400 V, Start-up-Service 5 x 8
GVX1000K750HS
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Certificate of Origin
|
Download |
|
Certificate
|
Download |
|
Declaration of conformity
|
Download |
|
Brochure
|
Download |
Dieses Produkt ist kompatibel mit
Batterien Smart Slots: Kompatible Produkte
Smart Slots (2)
Ersatzteil-Kits: Kompatible Produkte
Ersatzteil-Kits (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Hoch effiziente, skalierbare dreiphasige USV mit verschiedenen Betriebsmodi für große Installationen, Datacenter und unternehmenskritische Anwendungen. | Hauptmerkmale |
| Main input voltage | 400 V 3 Phasen |
| Other input voltage | 380 V 415 V 440 V |
| Output voltage | 400 V 3 Phasen |
| Other output voltage | 380 V 415 V 440 V |
| Rated power in W | 750 kW |
| Rated power in VA | 750 kVA |
| Input frequency | 40 - 70 Hz |
| Maximum input current | 1092 A |
| Max short time withstand current | 100 kA |
| Input harmonic distortion | Weniger als 3 % bei Volllast |
| Load power factor | Von 0,7 kapazitiv bis 0,5 induktiv ohne leistungsreduzierung |
| Maximum configurable power in W | 750 kW |
| Output frequency | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | 3 mit THC < 5 % |
| Waveform type | Sinuswelle |
| Output harmonic distortion | < 2% linear load and < 3% non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Maximum configurable power in VA | 750 kVA | Batterien und Überbrückungszeit |
| Battery type | Externes Batteriesystem |
| Battery voltage | 480 V |
| Discharge battery voltage | 384 V DC | Zusatzmerkmale |
| Provided equipment | Installationsanleitung Inbetriebnahme-Service |
| Redundant | Yes |
| Color | Weiß |
| Height | 197 cm |
| Width | 390 cm |
| Depth | 90 cm |
| Product weight | 2960 kg |
| USB compatible | No |
| Free slot | 2 |
| Preinstalled device | Network management card 2 with environmental monitoring, out of band access and Modbus |
| Control panel | 7" touch screen display |
| Range of product | Galaxy VX |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) | Montage |
| Product certification | cUL-gelistet C-Tick CE |
| Standard | IBC 2012 IEC 62040-1-1 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B UL 1778 5. Auflage |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.333 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 69.5 dBA |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 3975,646 kg |
| VPE 1 Höhe | 215 cm |
| VPE 1 Breite | 465 cm |
| VPE 1 Länge | 106 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
