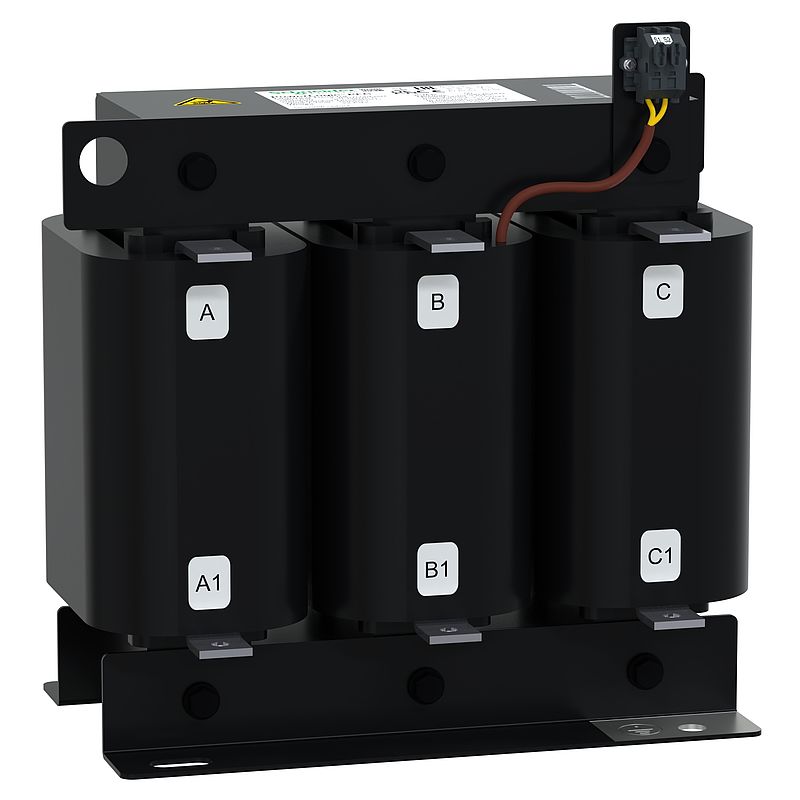

Filterkreisdrossel, PowerLogic PFC, 50kvar, 190Hz, (3,8), 7%, 50Hz, 690V

LVR07500A69T

Hauptdokumente

Produktdatenblatt Download
Technical Drawing Download
Catalog Download
CAD Download
Declaration of Conformity (Sustainability) Download
Declaration of conformity Download
Instruction sheet Download
Certificate Download
Environmental Disclosure Download

Spezifikationen

Hauptmerkmale
Baureihe PowerLogic
Kurzbezeichnung des Geräts DR
Produkt- oder Komponententyp Verstimmte Drosselspule
Netzwerkfrequenz 50 Hz
Blindleistungsangabe 50 kvar für 690 V AC 50 Hz
Netzspannung 690 V AC 50 Hz
Einstellreihenfolge 3,8 - 190 Hz - 7 % - 50 Hz
Zusatzmerkmale
Leistungsverluste (max) 320 W
Induktanzwert 2,232 mH
Induktivitätstoleranz - 5 % bis 5 % pro Phase
Grundnennstrom 41,8 A
Effektivwert des Stroms 45,2 A
elektrische Isolationsklasse Klasse H
[Ui] Bemessungs-Isolationsspannung 1,1 kV
Dielektrische Prüfspannung 4 kV 50 Hz 1 Minute
[Imp] Max. Dauerstrom 1,2 x I1
Oberschwingungsstromspektrum 3,7 % x I3
38,2 % x I5
13,6 % x I7
4,9 % x I11
Dynamischer Haltestrom 2,2 x Isc
[Ith] Konventioneller thermischer Strom in freier Luft 2 A bei 250 V AC 50 Hz
Installationstyp Innenmontage
Kühlungstyp Erzwungene Konvektion
Anschlüsse - Klemmen Polklemme
Befestigungsmitte 200 x 125 mm
Höhe 270 mm
Breite 260 mm
Tiefe 200 mm
Produktgewicht 22 kg
Montage
Normen IEC 60068
Schutzart (IP) IP00
Betriebshöhe <lt/>= 2.000 m
Umgebungstemperatur bei Betrieb 0…55 °C bei <lt/>= 1.000 m
0…50 °C bei > 1.000 - 2.000 m
Durchschnittliche Umgebungslufttemperatur für den Betrieb 50°C bei <lt/>= 1.000 m (Durchschnitt über 24 Stunden)
40°C bei <lt/>= 1.000 m (Durchschnitt über 1 Jahr)
45°C bei > 1.000 - 2.000 m (Durchschnitt über 24 Stunden)
35°C bei > 1.000 - 2.000 m (Durchschnitt über 1 Jahr)
Klimafestigkeit Relative Luftfeuchtigkeit: 20 - 80 %
Salznebel (400 V/50 Hz) : 250 Stunden
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Gewicht 28,900 kg
VPE 1 Höhe 49,000 cm
VPE 1 Breite 40,000 cm
VPE 1 Länge 60,000 cm
VPE 2 Art P06
VPE 2 Menge 2
VPE 2 Gewicht 66,500 kg
VPE 2 Höhe 50,000 cm
VPE 2 Breite 60,000 cm
VPE 2 Länge 80,000 cm
Vertragliche Gewährleistung
Gewährleistung 18 Monate

Nachhaltigkeit

Environmental data
REACh frei von SVHC Ja
EU-RoHS-Richtlinie Proaktive Einhaltung (Produkt fällt nicht unter die rechtlichen Bestimmungen von EU RoHS)
EU-RoHS-Deklaration
Kreislaufwirtschaftsprofil Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Nein
Verpackung mit Recycling-Karton Ja
WEEE Das Symbol der durchgestrichenen Mülltonne weist darauf hin, dass Elektro- bzw. Elektronik(alt)geräte nicht im Hausmüll entsorgt werden dürfen, sondern vom Besitzer einer getrennten Sammlung für Elektro- und Elektronikaltgeräte zugeführt werden müssen.
Rücknahme No
CO2-Bilanz (kg CO2 eq.) 5401
Global warming ; Total life cycle​ 5 401 kg CO2 eq.
