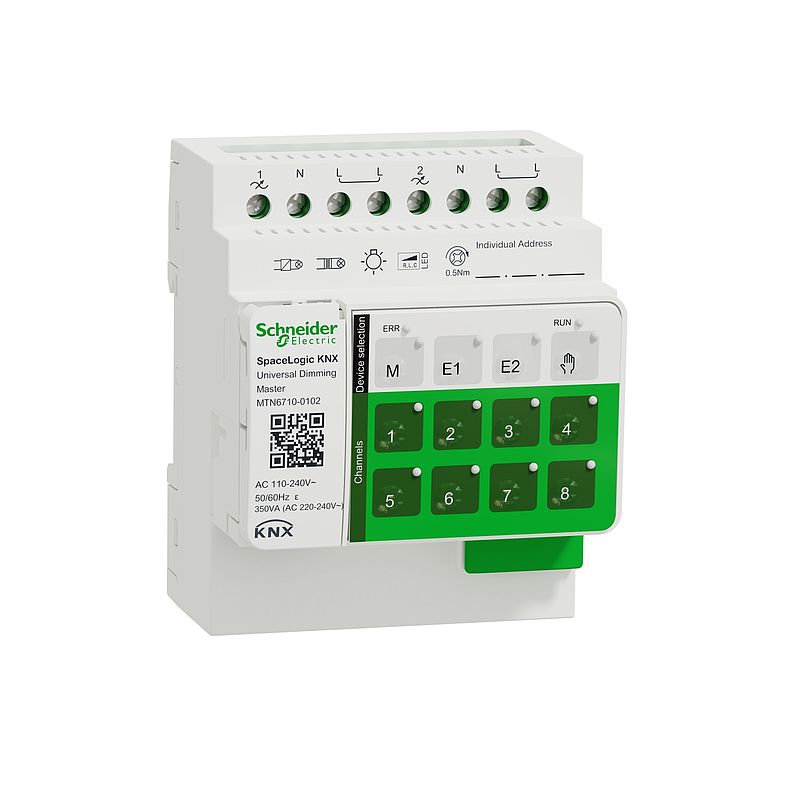

SpaceLogic KNX Master Dimmer, 2-fach
MTN6710-0102
Farbton: Weiß
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Environmental Disclosure
|
Download |
|
Software - Data Library
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
Software - Release
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
CAD
|
Download |
|
Catalog
|
Download |
|
Declaration of conformity
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produkt- oder Komponententyp | Dimmaktor |
| Betriebsmodus | KNX Bussystem |
| Bustyp | KNX |
| Baureihe | SpaceLogic KNX | Zusatzmerkmale |
| Montagehalterung | DIN-Schiene |
| [Ue] Bemessungs-Betriebsspannung | 230 V |
| Netzwerkfrequenz | 50/60 Hz |
| Anzahl der Ausgänge | 2 |
| Lasttyp | Niedervolt-Halogen: 20 - 350 W bei 230 V 50 Hz AC Glühlampe: 20 - 350 W bei 230 V Halogenlampe: 20 - 350 W bei 230 V RC-LED-Lampe: 2 - 200 W bei 230 V RL-LED-Lampe: 2 - 60 W bei 230 V |
| Farbton | Weiß | Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 269 g |
| VPE 1 Höhe | 8,4 cm |
| VPE 1 Breite | 12,8 cm |
| VPE 1 Länge | 15,9 cm |
| VPE 2 Art | S04 |
| VPE 2 Menge | 28 |
| VPE 2 Gewicht | 8,35 kg |
| VPE 2 Höhe | 30 cm |
| VPE 2 Breite | 40 cm |
| VPE 2 Länge | 60 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 25 |
| Total lifecycle Carbon footprint | 25 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 12.67250604695663 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 13 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0132389802830116 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 12.03909206672381 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 12 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.4518938969778856 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.5 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Frei von giftigen Schwermetallen | Ja |
| Recyclingfähigkeitspotential in % | 1 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=MTN6710-0102_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=MTN6710-0102_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
36 Dokumente
| Merten Katalog
15/09/25 · Catalog |
81,4 MB | Download |
| MTN6710-0102 REACh-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| MTN6710-0102 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Certificate for SpaceLogic MTN 15/03/25 · Certificate | 9,6 MB | Download |
| KNX Catalogue 05-2024
15/03/25 · Catalog |
84,5 MB | Download |
| EU Declaration 15/03/25 · Declaration of conformity | 0,5 MB | Download |
| SpaceLogic KNX MTN6710-0102S MTN6710-0102 Dimension/Wiring/Symbol CAD-2D
15/03/25 · CAD |
0,1 MB | Download |
| Device Firmware Update Tool-Descripción del software ES 15/03/25 · User guide | 3,7 MB | Download |
| Device Firmware Update Tool-Descrizione del software IT 15/03/25 · User guide | 3,7 MB | Download |
| Device Firmware Update Tool-Description du logiciel FR 15/03/25 · User guide | 3,7 MB | Download |
| SpaceLogic KNX, Información del producto, ES 15/03/25 · User guide | 8,8 MB | Download |
| SpaceLogic KNX, Informations sur le produit, FR 15/03/25 · User guide | 8,7 MB | Download |
| SpaceLogic KNX, Informazioni sul prodotto, IT 15/03/25 · User guide | 8,7 MB | Download |
| SpaceLogic KNX-Maestro de regulación universal-Descripción del software ETS (ES)
15/03/25 · User guide |
13,4 MB | Download |
| SpaceLogic KNX-Maître de variation universelle-Description du logiciel ETS (FR)
15/03/25 · User guide |
13,4 MB | Download |
| SpaceLogic KNX-Master dimmer universale-Descrizione del software ETS (IT)
15/03/25 · User guide |
13,3 MB | Download |
| KNX Certificate 15/03/25 · Certificate | 0,8 MB | Download |
| VDE Ausweis 15/03/25 · Certificate | 0,3 MB | Download |
| Device Firmware Update Tool-Software description EN 15/03/25 · User guide | 3,7 MB | Download |
| SpaceLogic KNX Universal Dimming Master - ETS Application description (EN)
15/03/25 · User guide |
13,3 MB | Download |
| SpaceLogic KNX, Product information, EN 15/03/25 · User guide | 8,6 MB | Download |
| Device Firmware Update Tool-Softwarebeschreibung DE 15/03/25 · User guide | 3,7 MB | Download |
| SpaceLogic KNX, Produktinformation, DE 15/03/25 · User guide | 8,7 MB | Download |
| SpaceLogic KNX Dimmer 2-fach, Master, MTN6710-0102, Montieren und Anschließen, (DE) 15/03/25 · Instruction sheet | 7,6 MB | Download |
| SpaceLogic KNX DFU Tool-Release Notes (EN) 15/03/25 · Software - Release | 0,6 MB | Download |
| SpaceLogic KNX-Device Firmware Update Tool DFU (DE) 15/03/25 · Software - Release | 37,9 MB | Download |
| SpaceLogic KNX Firmware for DFU tool 15/03/25 · Firmware | 2,2 MB | Download |
| SpaceLogic KNX Firmware for DFU tool-Release Notes (EN) 15/03/25 · Firmware | 0,6 MB | Download |
| SpaceLogic KNX, Dimming Master and Extension - Product End of life Instructions
15/03/25 · Circularity Profile |
0,4 MB | Download |
| MTN6710-0102 3300/1.0 Software ETS5 (knxprod) 15/03/25 · Software - Data Library | 1,7 MB | Download |
| SpaceLogic KNX, Dimming Master and Extension - Product Environmental Profile
15/03/25 · Environmental Disclosure |
0,4 MB | Download |
| UK Declaration of Conformity 15/02/25 · Declaration of conformity | 0,2 MB | Download |
| Declaratie conformitate SpaceLogic KNX Actuat dimare Master 2 canale 15/02/25 · Declaration of conformity | 0,4 MB | Download |
| SpaceLogic KNX Dimmer 2-fach, Master - ETS Applikationsbeschreibung (DE)
15/02/25 · User guide |
13,4 MB | Download |
| UK Declaration of Conformity 17/09/24 · Declaration of conformity | 0,5 MB | Download |
| 01/01/70 Certificate | 0,0 MB | Download |
