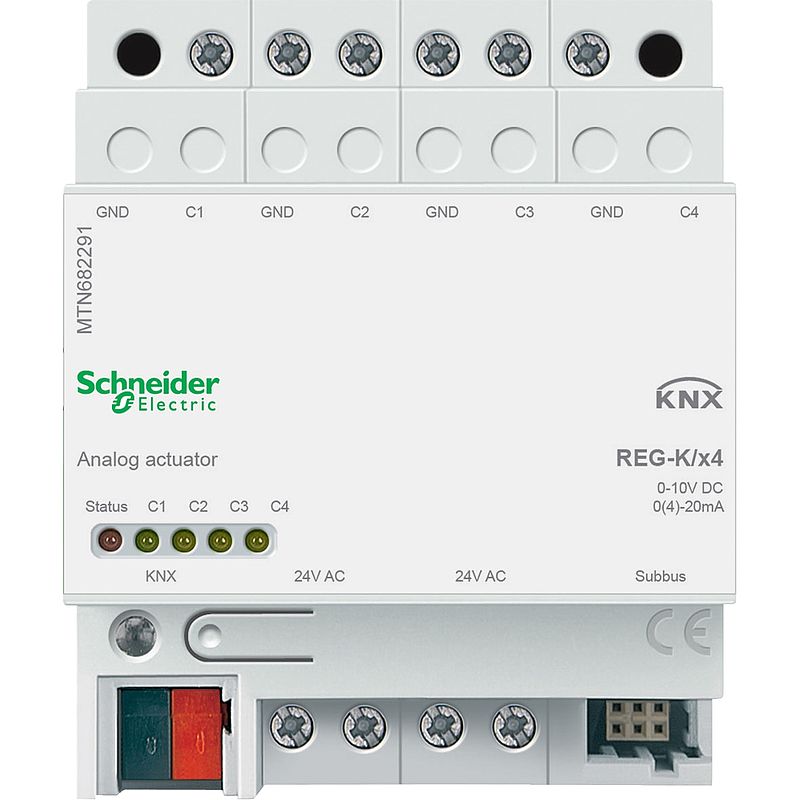

Analogaktor REG-K/4fach, lichtgrau
MTN682291
Farbton: Hellgrau
Materialpreisgruppe
: G2
299,00 €
Demnächst nicht mehr lieferb…
Der Service wird eingestellt am: 31. December 2026
Eingestellt am: 13. November 2024
EAN Code: 3606485100234
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
System user guide
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Katalog
|
Download |
|
CAD
|
Download |
Dieses Produkt ist kompatibel mit
Softwares: Kompatible Produkte
Softwares (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | KNX |
| Produkt- oder Komponententyp | Analoges Aktuatormodul |
| Bustyp | KNX |
| Farbton | Hellgrau |
| Baureihe | KNX | Zusatzmerkmale |
| Gesamtzahl 18-mm-TE | 4 |
| Montagehalterung | DIN-Schiene |
| Ausgangsstrom | 0 - 20 mA |
| Ausgangsspannung | 0 - 10 V |
| Anzahl der Ausgänge | 4 |
| Material | Kunststoff |
| Hauptfarbton | Hellgrau | Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 274,000 g |
| VPE 1 Höhe | 8,100 cm |
| VPE 1 Breite | 13,400 cm |
| VPE 1 Länge | 15,900 cm |
| VPE 2 Art | CAR |
| VPE 2 Menge | 10 |
| VPE 2 Gewicht | 2,922 kg |
| VPE 2 Höhe | 19,500 cm |
| VPE 2 Breite | 30,700 cm |
| VPE 2 Länge | 40,200 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
|
EU-RoHS-Richtlinie
|
Konform mit Ausnahmen EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 11 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1.7625028545574224 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.11628305493669093 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.1 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.14721809808923256 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 23.6444507375211 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 24 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3827215949077347 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.4 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 11 |
| SCIP-Nummer | E8633433-f0bd-4c71-9f86-14eae4e071b8 |
| EU-RoHS-Richtlinie | Konform |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Halogenfreies Produkt |
| PVC-frei | Ja |
26 Dokumente
| Merten Katalog
15/09/25 · Katalog |
81,4 MB | Download |
| SpaceLogic KNX CAD Library-2D DWG
04/04/25 · CAD |
15,7 MB | Download |
| MTN682291 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| MTN682291 China-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| KNX MTN682291 Dimension/Wiring/Symbol -2D CAD Drawing
15/03/25 · CAD |
0,0 MB | Download |
| SpaceLogic KNX- Atuador analógico REG-K/4 elementos-Instruções de utilização (PT) 15/03/25 · User guide | 0,4 MB | Download |
| KNX- Atuador analógico REG/4 elementos-Instruções de utilização (PT) 15/03/25 · User guide | 0,4 MB | Download |
| SpaceLogic KNX- Actionneur analogique KNX REG-K 4 entrées-Mode d'emploi (FR) 15/03/25 · User guide | 0,2 MB | Download |
| SpaceLogic KNX- Analogue Actuator REG/4-gang-Operating instructions (EN) 15/03/25 · User guide | 0,3 MB | Download |
| KNX- Analogeingang REG-K/4fach-Gebrauchsanweisung (DE) 15/03/25 · User guide | 0,5 MB | Download |
| KNX Analogue actuator REG-K/4-gang , light grey-Technical leaflet
15/03/25 · Other technical guide |
0,1 MB | Download |
| KNX Schneider Electric BIM data (Building Information Modeling)
15/03/25 · BIM Model |
67,4 MB | Download |
| KNX, In- and Output Modules - Product Environmental Profile
15/03/25 · Environmental Disclosure |
0,2 MB | Download |
| KNX, In- and Output Modules - Product End of life Instructions
15/03/25 · Circularity Profile |
0,1 MB | Download |
| EU declaration of conformity 15/03/25 · Declaration of conformity | 0,2 MB | Download |
| SpaceLogic KNX- Analogue Actuator REG-K/4-gang-ETS Software Description (EN) 15/03/25 · System user guide | 0,1 MB | Download |
| MTN682291-00 Software ETS4-ETS5.x (knxprod) 15/02/25 · Software - Data Library | 0,1 MB | Download |
| UK Declaration of Conformity 15/02/25 · Declaration of conformity | 0,4 MB | Download |
| KNX- Actionneur analogique KNX REG 4 entrées-Mode d'emploi (FR) 15/11/24 · User guide | 0,2 MB | Download |
| MTN682291 REACh-Erklärung
04/11/24 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| MTN682291-00 Software ETS3d-ETS5.x (Vdx) 25/09/24 · Software - Data Library | 1,1 MB | Download |
| SpaceLogic KNX-Analogaktor REG-K-ETS-Software-Beschreibung (DE) 24/09/24 · System user guide | 0,1 MB | Download |
| SpaceLogic KNX-Actuador analógico REG-K-Descripción del software ETS (ES) 24/09/24 · System user guide | 0,1 MB | Download |
| SpaceLogic KNX- Servomoteur analogique 4 entrées KNX REG-K-Description du logiciel ETS (FR) 24/09/24 · System user guide | 0,2 MB | Download |
| KNX Certificate 17/09/24 · Certificate | 0,1 MB | Download |
| DoC for actuators 14/09/24 · Declaration of conformity | 0,8 MB | Download |
