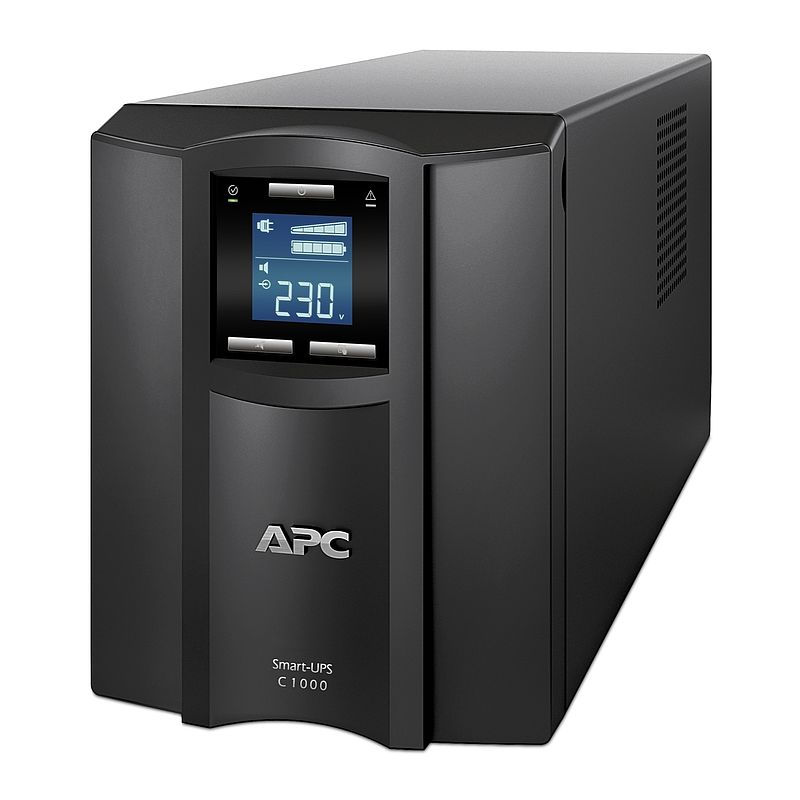

APC Smart-UPS C 1000 VA LCD, 230 V
SMC1000I
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Circularity Profile
|
Download |
|
Declaration of conformity
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Softwares Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (4)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Racks: Kompatible Produkte
Racks (5)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 600 W |
| Rated power in VA | 1000 VA |

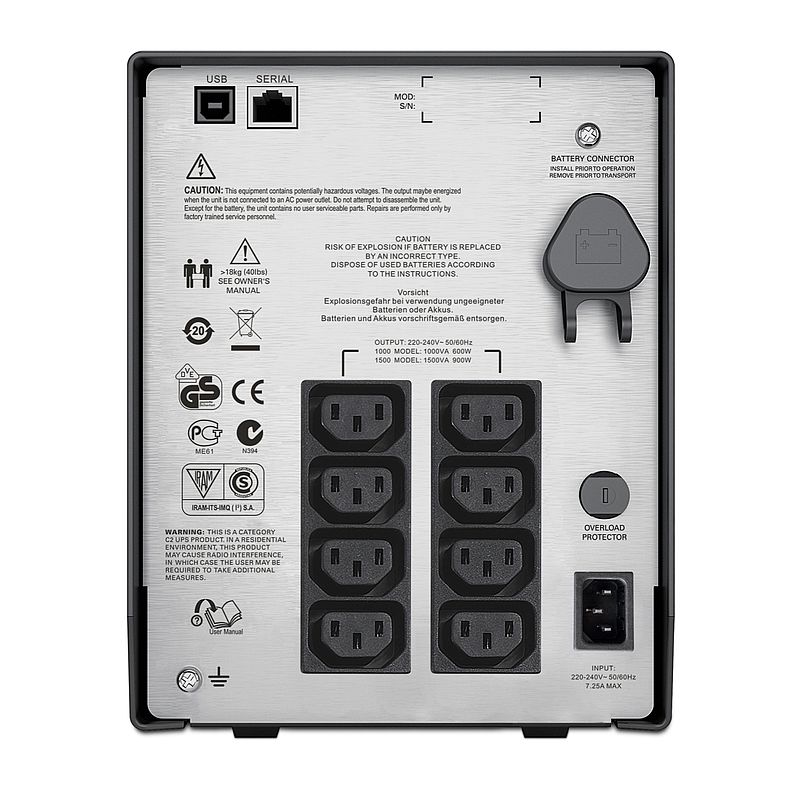

| Input connection | IEC 60320 C14 |
| Output connection | 8 IEC 60320 C13 2 IEC-Steckbrücken |
| Efficiency at full load | 170 - 300 V einstellbar 180 - 287 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 600 W |
| UPS topology | Line-Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 56 W bewertet |
| Battery voltage | 24 V | Zusatzmerkmale |
| Provided equipment | CD mit Software Dokumentations-CD USB-Kabel |
| Additional specification | Entry level |
| Redundant | No |
| Color | Schwarz |
| Height | 219 mm |
| Width | 171 mm |
| Depth | 439 mm |
| Product weight | 17,27 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Control panel | Multifunktionale LCD-Status- und Steuerungskonsole |
| Surge energy rating | 455 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung |
| Range of product | Smart-UPS |
| Mounting mode | Turm |
| UPS connectivity | Serieller Anschluss USB-Anschluss |
| Battery type | Blei-Säure internal included | Montage |
| Product certification | CE CSA GOST VDE EAC |
| Acoustic level | 41 dBA |
| Heat dissipation | 100 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 19,55 kg |
| VPE 1 Höhe | 37,6 cm |
| VPE 1 Breite | 59,5 cm |
| VPE 1 Länge | 32,8 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Nein |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 569 |
| Total lifecycle Carbon footprint | 569 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 280.8072909962 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 281 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 6.7082722957 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 7 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 1.9501438477 |
| CO₂-Fußabdruck der Installationsphase [A5] | 2 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 268.8143801538 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 269 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 10.2289164463 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 10 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SMC1000I_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SMC1000I_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
