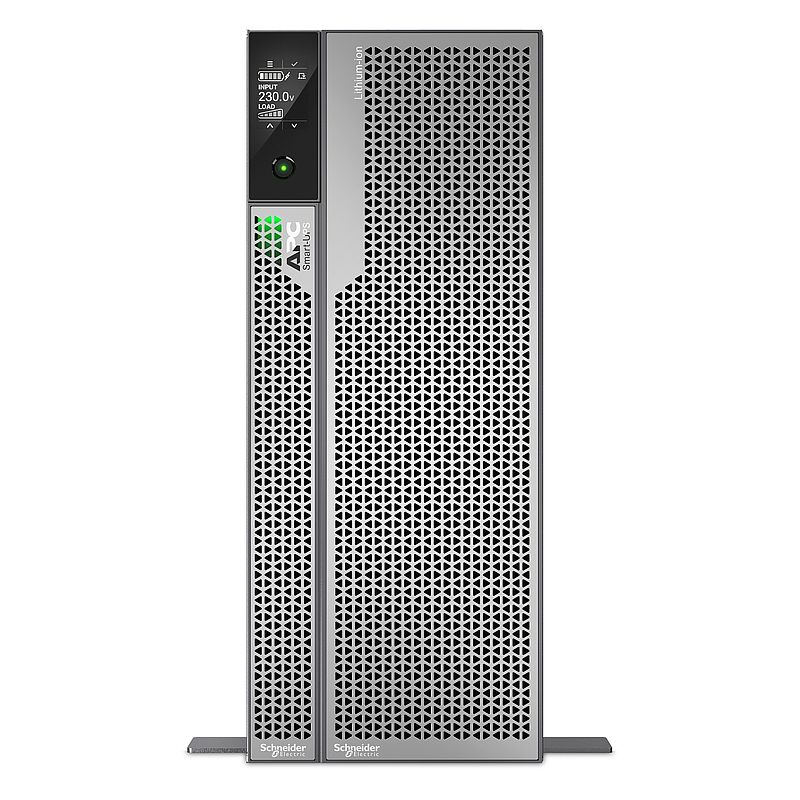

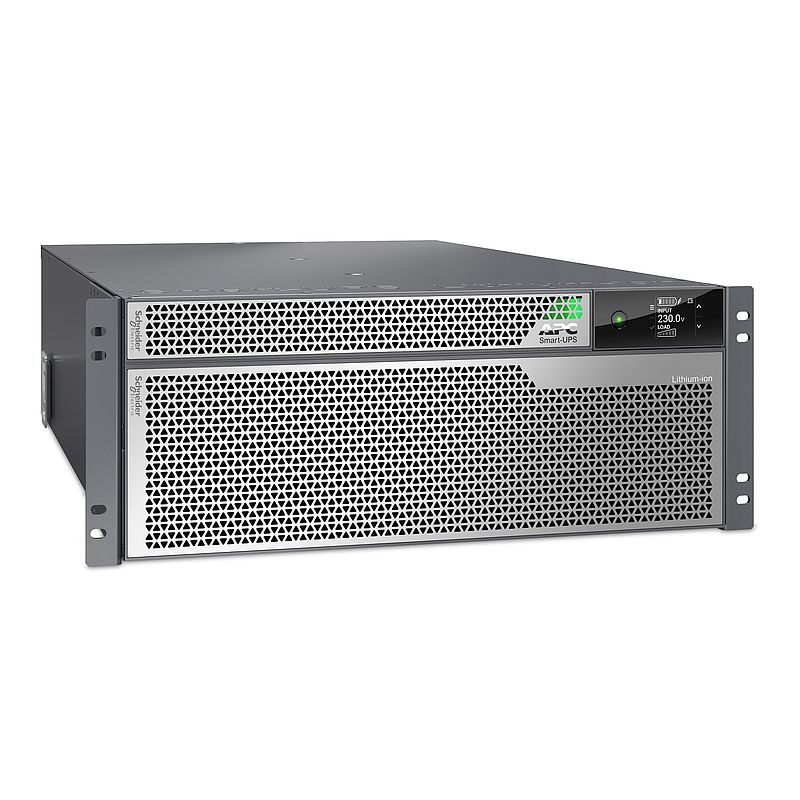

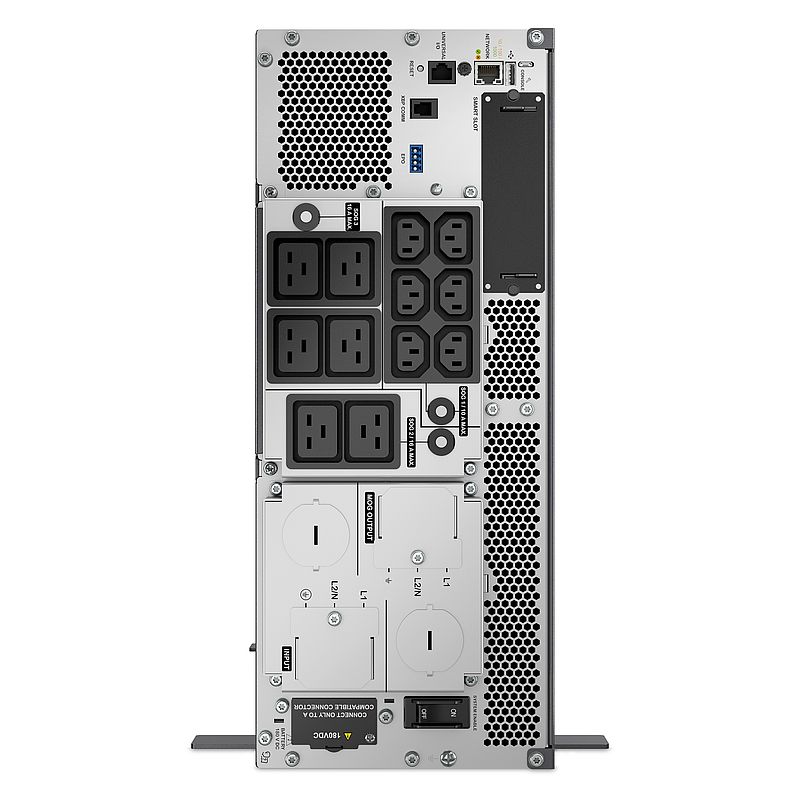

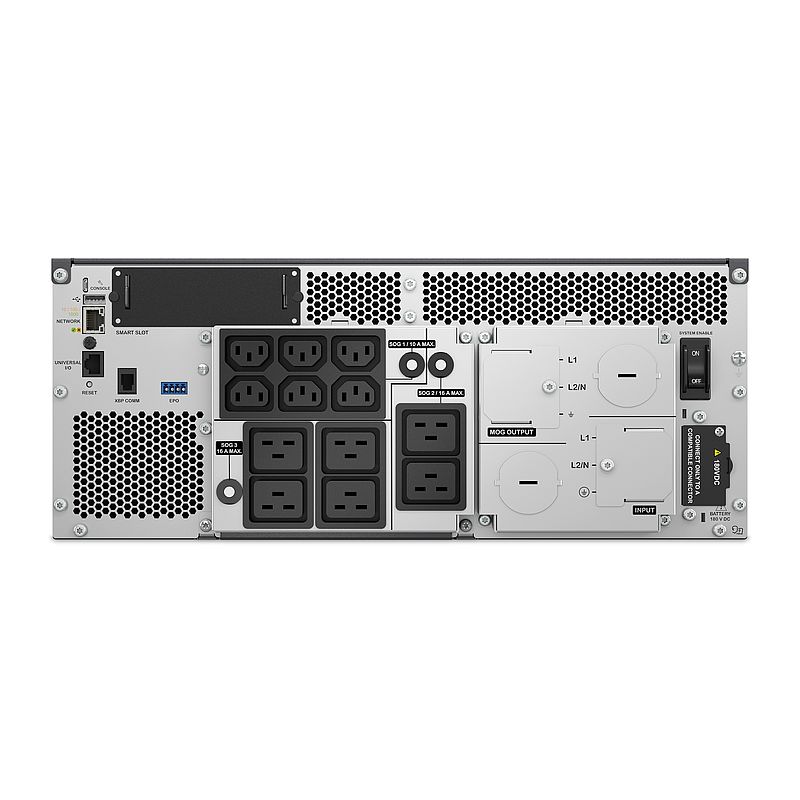

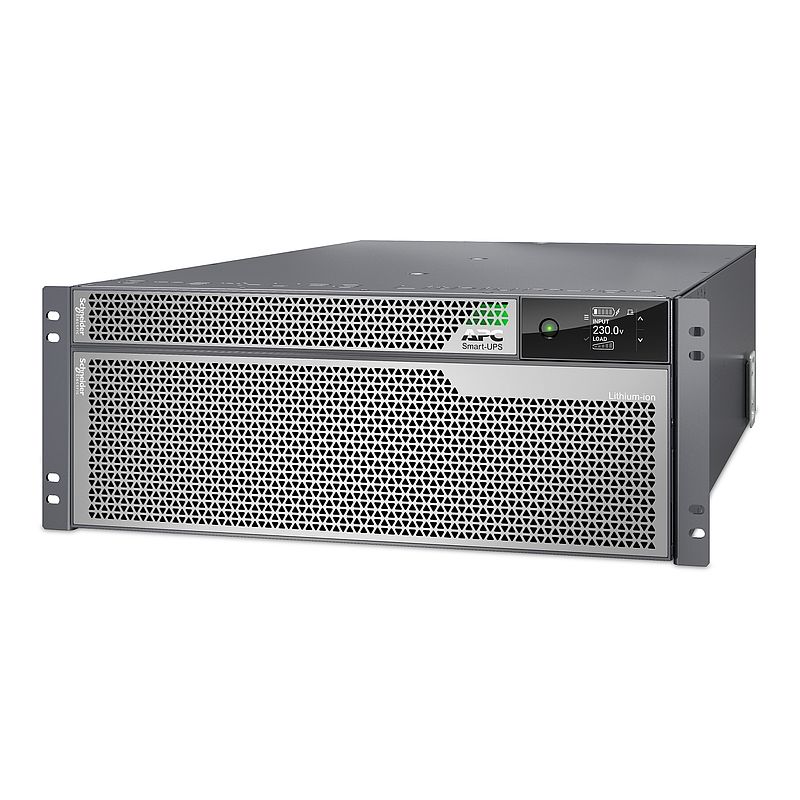

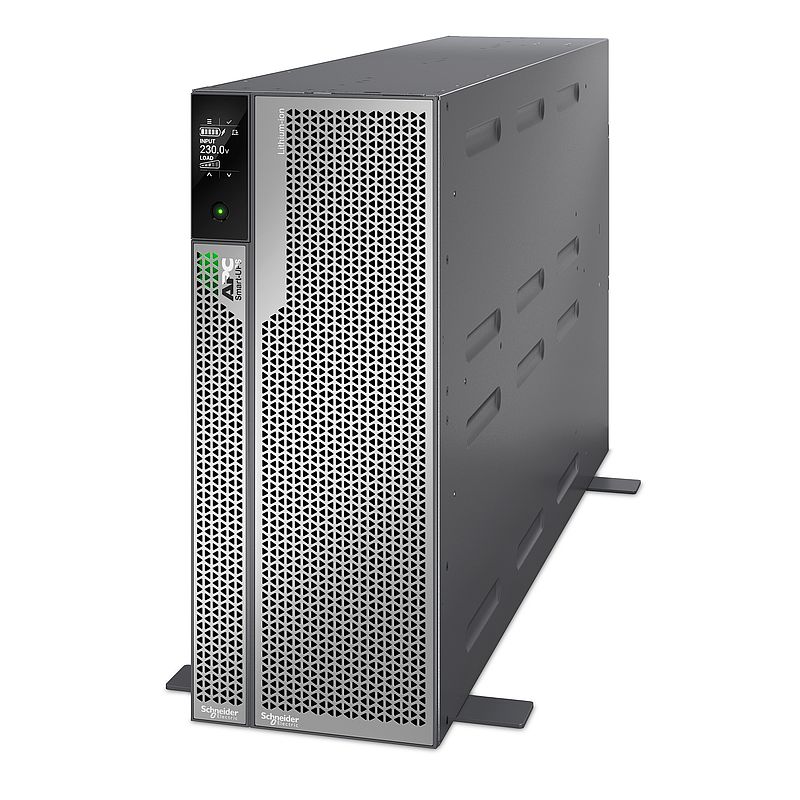

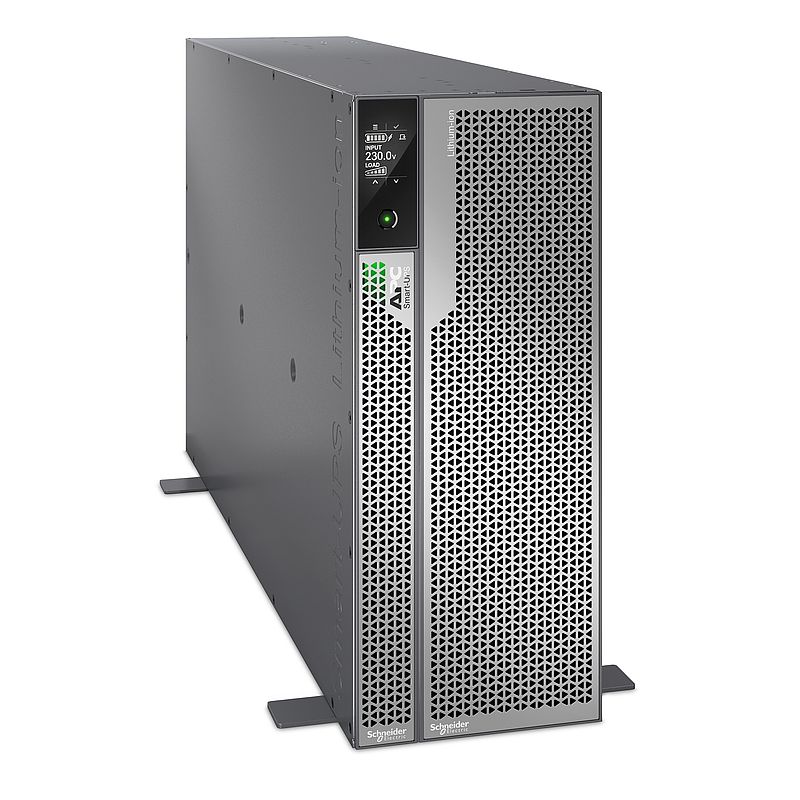

APC Smart-UPS Ultra On-Line Lithium-Ionen, 10KVA/10KW, 4HE Rack/Tower, 230V
SRTL10KRM4UI
Hauptdokumente
 Produktdatenblatt |
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Technical Drawing
|
Download |
|
Promotional video
|
Video anzeigen |
|
Declaration of conformity
|
Download |
|
Instruction sheet
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Technical illustration
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Brochure
|
Download |
|
Certificate
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Service Bypass Panel Sensoren: Kompatible Produkte
Sensoren (2)
Communication Options Battery Modules: Kompatible Produkte
Battery Modules (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 220 V AC 1 Phase 230 V AC 1 Phase 240 V AC 1 Phase |
| Other input voltage | 220 - 240 V |
| Output voltage | 220 V AC 1 Phase 230 V AC 1 Phase 240 V AC 1 Phase |
| Other output voltage | 220/230/240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Input connection | Hard Wire 3-wire 55 A |
| Output connection | 6 IEC 60320 C13 6 IEC 60320 C19 |
| Output connection | Fest verdrahtet 3-adrig (1PH + N + G) for 1 zone(s) |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) |
| Maximum configurable power in W | 10000 W |
| Harmonic distortion | Weniger als 5 % |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Full load runtime | 00:05:00 10.000 W |
| Half load runtime | 00:11:00 5.000 W |
| Maximum configurable power in VA | 10000 VA | Zusatzmerkmale |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Provided equipment | Temperaturfühler USB-Kabel Stabilisierungsfüße Zugentlastung Rack-Montage-Hardware |
| Range of product | Smart-UPS Ultra |
| Additional specification | High density |
| Redundant | No |
| Color | Silbergrau |
| Height | 175 mm |
| Width | 432 mm |
| Depth | 832 mm |
| Product weight | 55 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Rack-montiert mit Bausatz Mastmontage mit Bausatz |
| USB compatible | Yes |
| Mounting position | Horizontal Vertikal |
| Free slot | 1 |
| Preinstalled device | Network management card with environmental monitoring |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Emergency power off | Ja |
| Surge energy rating | 1410 J |
| Battery type | Li-Ion (Lithium-Ionen) internal included |
| UPS connectivity | Serial port USB port Available expansion slot Embedded network management card 3 |
| Mounting mode | Rack/tower convertible with included kit | Batterien und Überbrückungszeit |
| Battery type | Li-Ion (Lithium-Ionen) |
| Typical recharge time | 1,5 h |
| RBC quantity | 2 |
| Battery voltage | 180 V |
| Battery charging power | 1200 W bewertet |
| Battery life | 5…10 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | VDE |
| Marking | CE-Kennzeichnung UKCA |
| Standard | EN/IEC 62040-1 EN/IEC 62040-2 IEC 62040-2 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dB |
| Heat dissipation | 1900 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 63 cm |
| VPE 1 Breite | 65 cm |
| VPE 1 Länge | 100 cm |
| Verpackungsgewicht (Lbs) | 88,5 kg |
| SCC14 | 10731304578502 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 60 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 5ee38369-4dfb-4636-ab65-b08aa3242891 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Eingesparte und vermiedene Produktbeiträge | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 16305 |
| Total lifecycle Carbon footprint | 16 305 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 4667.2952853598 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 4 667 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 25.5109119107 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 26 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 33.2347146402 |
| CO₂-Fußabdruck der Installationsphase [A5] | 33 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 11462.196797203 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 11 462 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 116.8617245658 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 117 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRTL10KRM4UI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRTL10KRM4UI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 39 |
35 Dokumente
| USV-Lösungen, Racks und PDUs - Katalog 2025
15/09/25 · Catalog |
8,6 MB | Download |
| APC Smart-UPS Firmware and Release Notes
02/04/25 · Firmware |
0,1 MB | Download |
| SRTL10KRM4UI REACh-Erklärung
20/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| SRTL10KRM4UI EU-RoHS-Erklärung
20/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Smart-UPS Ultra
15/03/25 · Brochure |
6,6 MB | Download |
| Install Manual Smart-UPS Ultra 8/10 kVA SRTL8KRM/10KRM 4UI/4UT/4UJ 15/03/25 · Instruction sheet | 1,6 MB | Download |
| Installationshandbuch APC Smart-UPS Ultra 8/10 kVA SRTL8KRM/10KRM 4UI/4UT/4UJ 15/03/25 · User guide | 1,5 MB | Download |
| VDE Certificate SRTL5KRM2UI, SRTL5KR2I-NB, SRTL180RM2UBP,, SRTL180R2BP-NB
15/03/25 · Certificate |
0,4 MB | Download |
| CB TEST CERTIFICATE - Smart-UPS Ultra 5, 8 & 10KVA Li-ion - SRTL5KRM2UI, SRTL5KRM2UINB, SRTL180RM2UBP, SRTL180RM2UBP-NB, SRTL10KRM4UI, SRTL8KRM4UI 15/03/25 · Certificate | 0,1 MB | Download |
| EU DoC for SRTL10KRM4UI, SRTL10KRM4UI-XXX, SRTL8KRM4UI, SRTL8KRM4UI-XXX, SRTL180RM2UBP, SRTL180RM2BP-NB, SRTL180RM2UBP-XXX 15/03/25 · Declaration of conformity | 0,6 MB | Download |
| Smart-UPS™ UltraAlimentation Sans Interruption
15/03/25 · User guide |
1,1 MB | Download |
| Smart-UPS™ UltraGruppo di Continuità
15/03/25 · User guide |
1,3 MB | Download |
| Smart-UPS™ UltraSistema de Alimentación Ininterrumpida
15/03/25 · User guide |
2,0 MB | Download |
| Digitalisierung im Gesundheitssektor - Flyer
15/03/25 · Brochure |
1,4 MB | Download |
| Introducing APC Smart-UPS™ Ultra 2.2kW to 10kW
15/03/25 · Promotional video |
0,2 MB | Video anzeigen |
| SRTL10KRM4UI-APC Smart-UPS Ultra Online Li-ion 10kVA 230V
15/03/25 · Technical Drawing |
1,3 MB | Download |
| Operation Manual Smart-UPS SRTL 8/10 KRM 4UI/4UJ/4UT 15/03/25 · User guide | 1,4 MB | Download |
| Smart-UPS™ UltraUnterbrechungsfreie Stromversorgung
15/03/25 · User guide |
1,0 MB | Download |
| SRTL10KRM4UI Dimensions 20/01/25 · Technical illustration | 10,9 MB | Download |
| UKCA DoC for SRTL10KRM4UI, SRTL10KRM4UI-XXX, SRTL8KRM4UI, SRTL8KRM4UI-XXX, SRTL180RM2UBP, SRTL180RM2BP-NB, SRTL180RM2UBP-XXX 20/01/25 · Declaration of conformity | 0,5 MB | Download |
| Smart-UPS™ Ultra Alimentation Sans Coupure
20/01/25 · User guide |
1,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Firmware | 0,0 MB | Download |
| 01/01/70 Certificate | 0,0 MB | Download |
| 01/01/70 Certificate | 0,0 MB | Download |
| 01/01/70 Certificate | 0,0 MB | Download |
| 01/01/70 Declaration of Conformity (Sustainability) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Brochure | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 Circularity Profile | 0,0 MB | Download |
