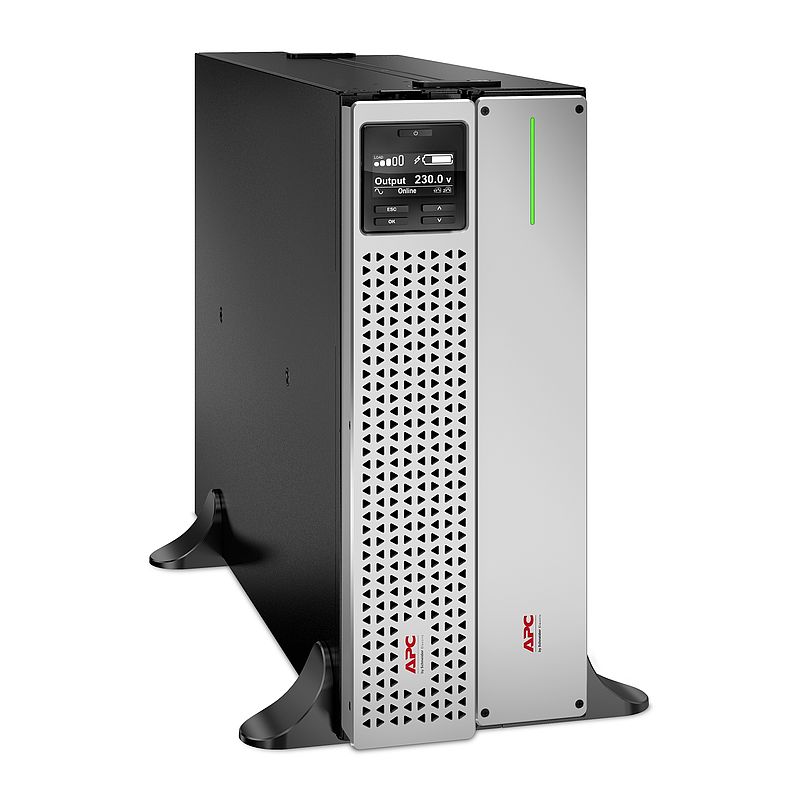

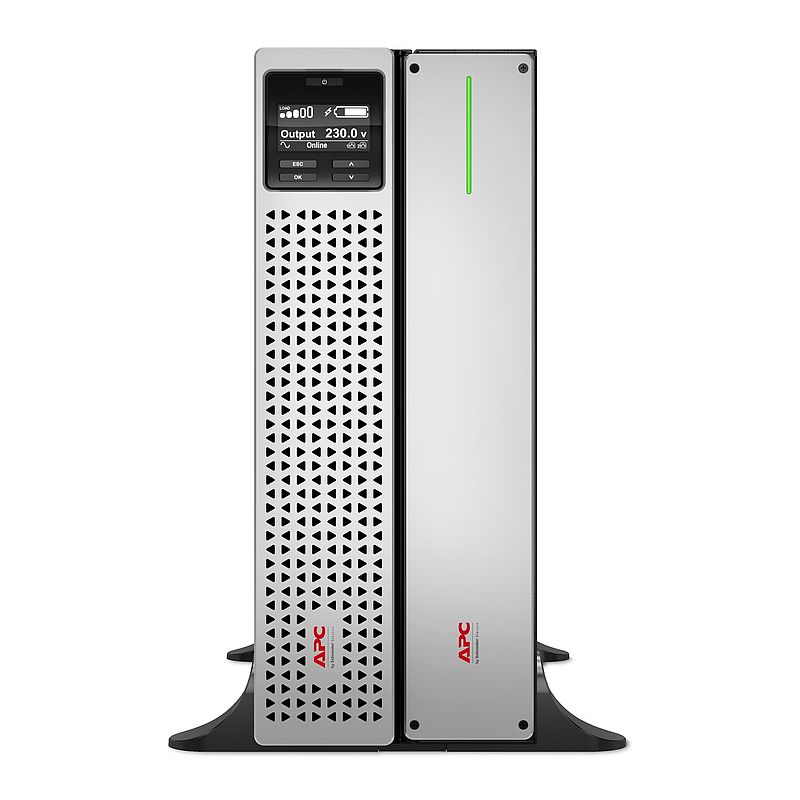

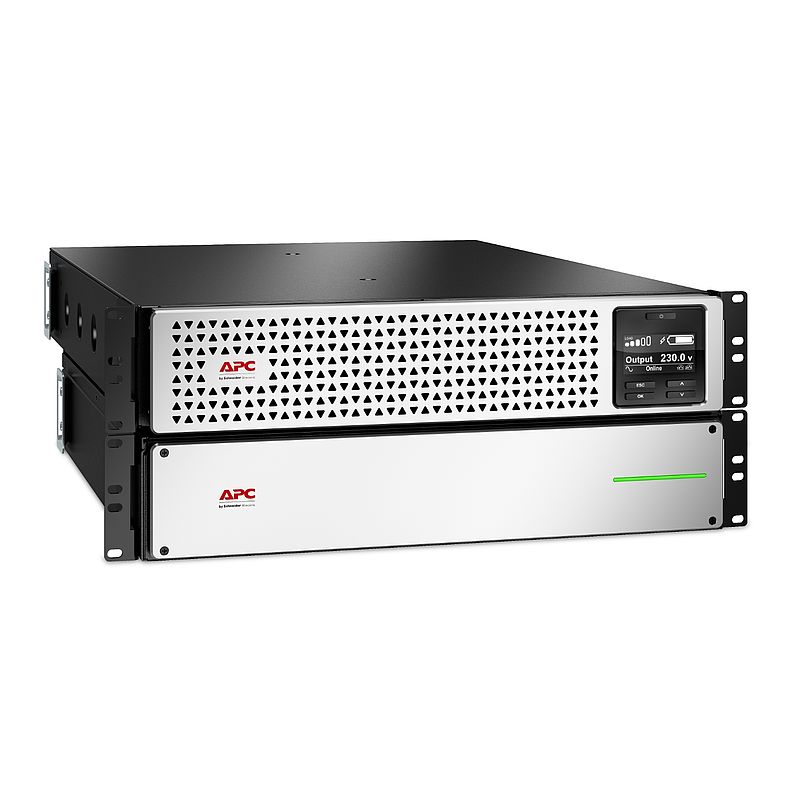

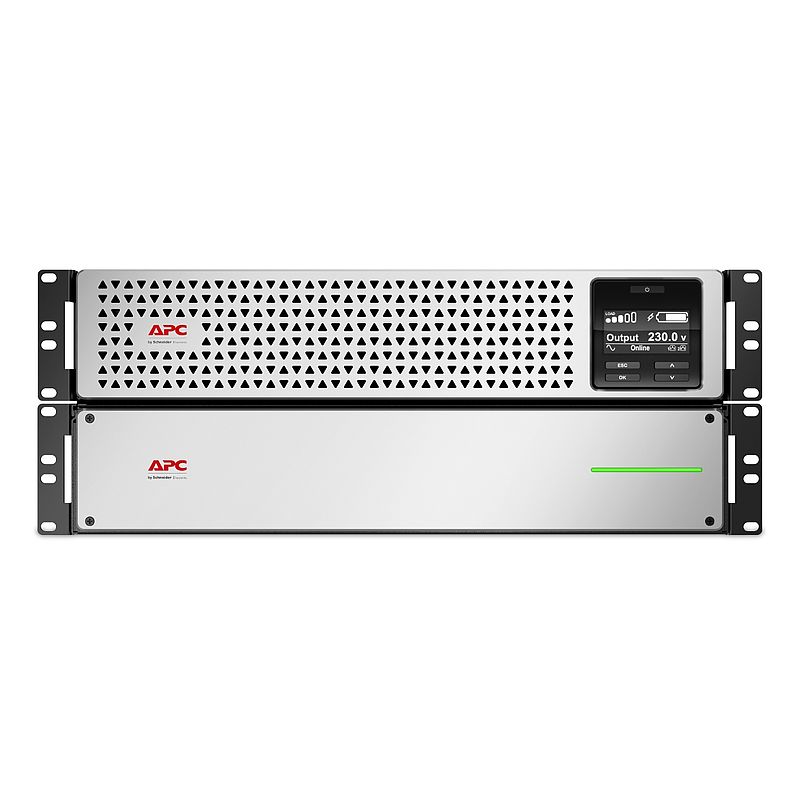

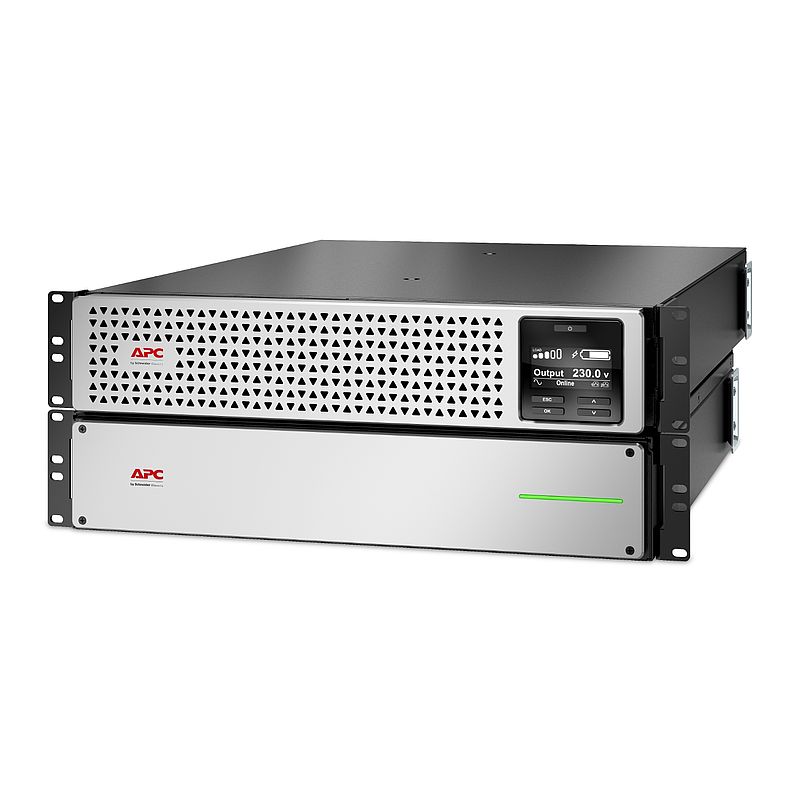

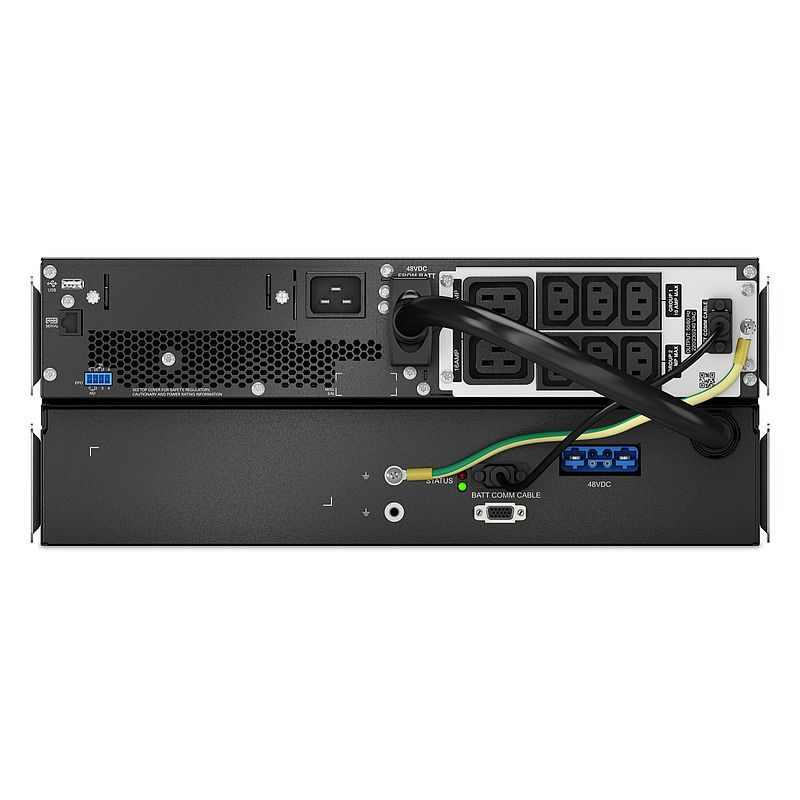

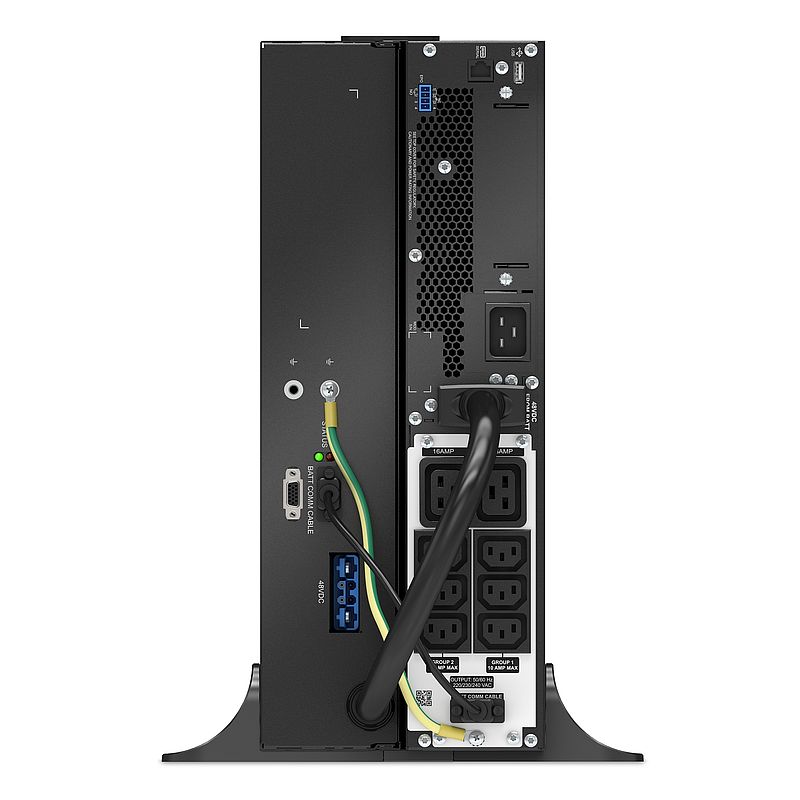

APC Smart-UPS On-Line, 3kVA, Lithium-Ionen, Rackmontage 4HE, 230V, 6x C13+2x C19 IEC Ausgänge, SmartSlot, verlängerte Laufzeit, Rack-Einbausatz
SRTL3000RM4UXLI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Circularity Profile
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
Communication Options: Kompatible Produkte
Communication Options (5)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | High density, double-conversion on-line power protection with long runtime | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input connection | IEC 60320 C20 |
| Output connection | 6 IEC 60320 C13 |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Efficiency at full load | 160 - 275 V |
| Maximum configurable power in W | 2700 W |
| Harmonic distortion | Weniger als 2 % |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Integrierter Bypass |
| Maximum configurable power in VA | 3000 VA | Zusatzmerkmale |
| Number of rack unit | 4U |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Additional specification | Lithium-Ionen |
| Redundant | No |
| Color | Schwarz mit silbernem Frontgitter |
| Height | 171 mm |
| Width | 432 mm |
| Depth | 639 mm |
| Product weight | 43,2 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-montiert mit Bausatz |
| USB compatible | Yes |
| Mounting position | Horizontal Vertikal |
| Free slot | 1 |
| Emergency power off | Ja |
| Surge energy rating | 432 J |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS On-Line |
| Battery type | Li-Ion (Lithium-Ionen) internal included |
| UPS connectivity | Serial port USB port |
| Mounting mode | Aufbau with included kit | Batterien und Überbrückungszeit |
| Battery type | Li-Ion (Lithium-Ionen) |
| Battery voltage | 48 V |
| Battery charging power | 158 W bewertet |
| Battery life | 5…10 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | CE UK PSTI |
| Marking | CE-Kennzeichnung |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 317 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 24,5 cm |
| VPE 1 Breite | 60 cm |
| VPE 1 Länge | 81 cm |
| Verpackungsgewicht (Lbs) | 56,5 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 60 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRTL3000RM4UXLI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRTL3000RM4UXLI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
21 Dokumente
| USV-Lösungen, Racks und PDUs - Katalog 2025
15/09/25 · Catalog |
8,6 MB | Download |
| SRTL3000RM4UXLI REACh-Erklärung
03/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| SRTL3000RM4UXLI EU-RoHS-Erklärung
03/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| APC Smart-UPS Firmware and Release Notes
02/04/25 · Firmware |
0,1 MB | Download |
| Network Management Card 2 (NMC2) Firmware for Smart-UPS with AP9630/31 15/03/25 · Firmware | 4,3 MB | Download |
| Network Management Card 3 (NMC3) Firmware for Smart-UPS (SU) with AP9640/41/43 15/03/25 · Firmware | 4,2 MB | Download |
| End of Life instructions for SmartUPS Lion_EN 15/03/25 · Circularity Profile | 0,6 MB | Download |
| UK PSTI STATEMENT OF COMPLIANCE 15/03/25 · Certificate (Sustainability) | 0,1 MB | Download |
| Installation Guide Smart-UPS On-Line SRT3000/SRT2200 UXI-LI/UXI-NCLI 15/03/25 · Instruction sheet | 0,5 MB | Download |
| Installation Guide Smart-UPS On-Line External Battery Pack XBP48RM2U-LI
15/03/25 · Instruction sheet |
0,6 MB | Download |
| Operation Manual Smart-UPS On-Line SRT Uninterruptible Power Supply SRT2200UXI-LI/SRT2200UXI-NCLI/SRT3000UXI-LI/SRT3000UXI-NCLI 15/03/25 · User guide | 1,0 MB | Download |
| Installationsasnleitung Smart-UPS On-Line SRT3000/SRT2200 UXI-LI/UXI-NCLI 15/03/25 · User guide | 0,6 MB | Download |
| Installationshandbuch Smart-UPS On-Line Externes Batteriepaket XBP48RM2U-LI 15/03/25 · User guide | 1,2 MB | Download |
| Betriebshandbuch Smart-UPS On-Line SRT Unterbrechungsfreie Stromversorgung SRT2200UXI-LI/SRT2200UXI-NCLI/SRT3000UXI-LI/SRT3000UXI-NCLI 15/03/25 · User guide | 0,7 MB | Download |
| CB Certificate for SRT1K to 3KVA family as per IEC62040-1:2021
15/03/25 · Certificate |
0,1 MB | Download |
| Smart-UPS On-Line Lithium-ion UPS 230V
15/03/25 · Brochure |
5,7 MB | Download |
| SRTL3000RM4UXLI-APC Smart-UPS On-Line 3000VA Li-Ion, RM 4U 230V
15/03/25 · Technical Drawing |
0,8 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 Certificate | 0,0 MB | Download |
