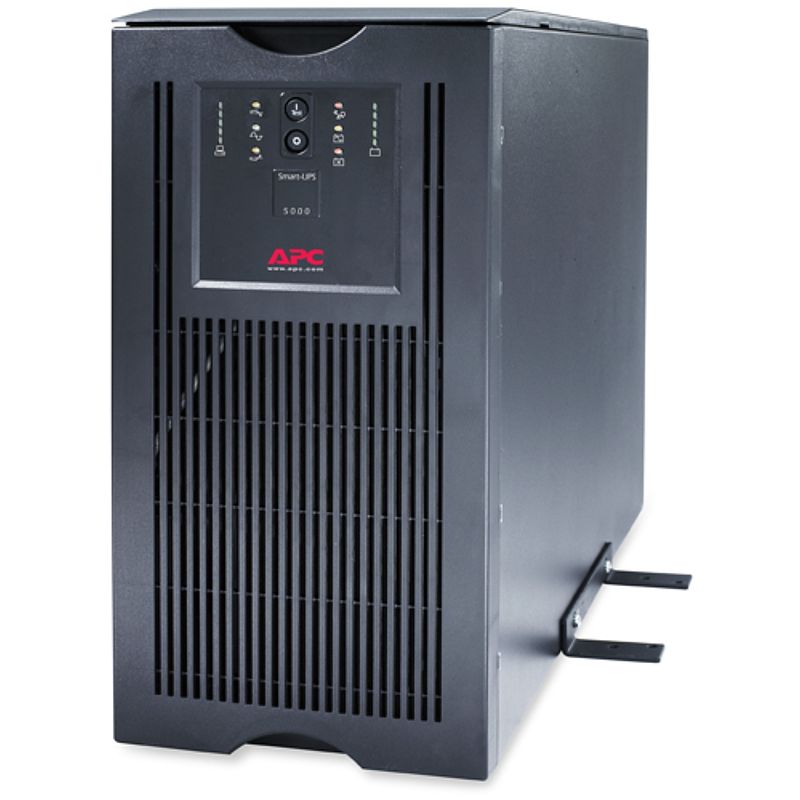

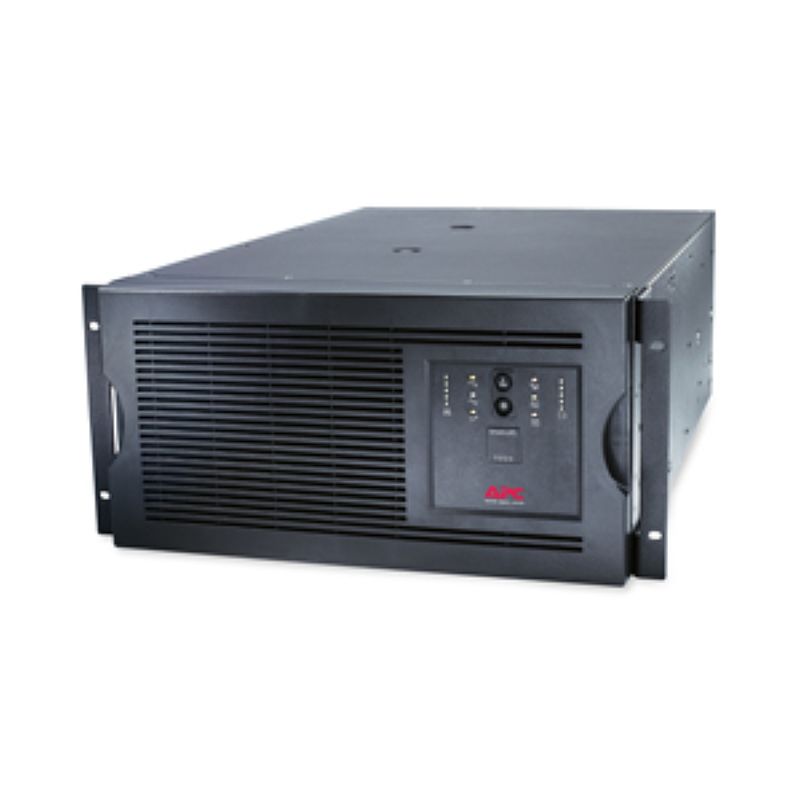

APC Smart-UPS 5000 VA, 230 V, rackmontiert/Tower
SUA5000RMI5U
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Quick start guide
|
Download |
Dieses Produkt ist kompatibel mit
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (4)
Ersatzteil-Kits: Kompatible Produkte
Ersatzteil-Kits (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Racks: Kompatible Produkte
Racks (5)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (8)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 4000 W |
| Rated power in VA | 5000 VA |

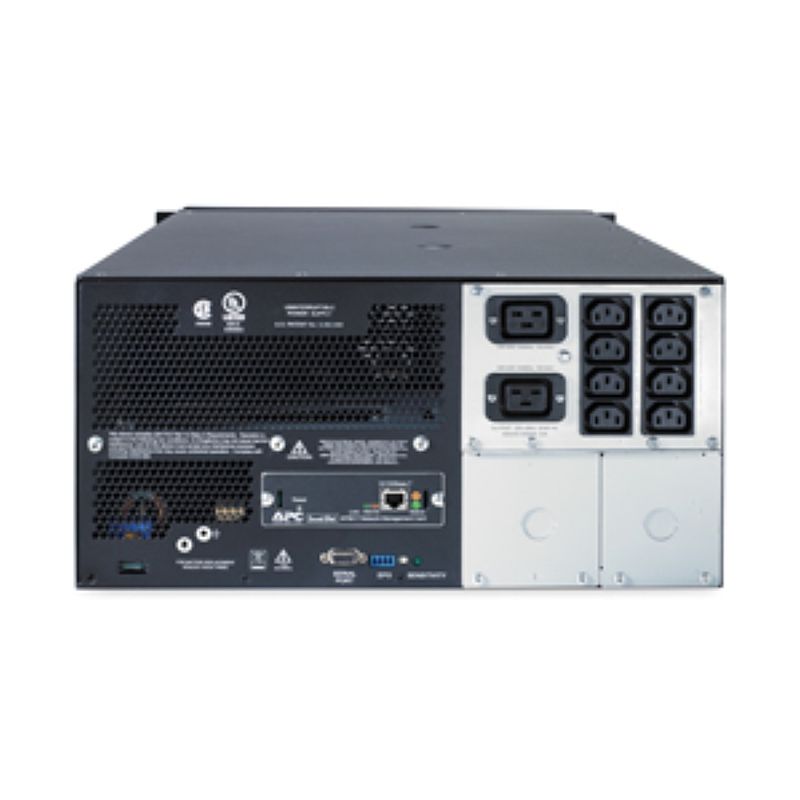

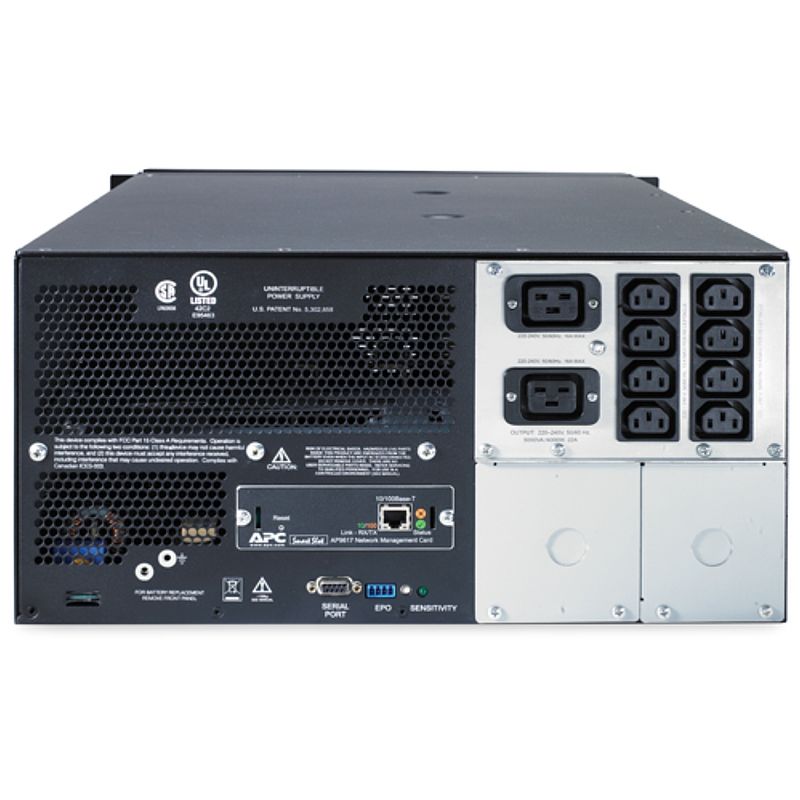

| Output connection | 8 IEC 320 C13 4 IEC-Steckbrücken 2 IEC 320 C19 |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input connection | 1 fest verdrahtet 3-adrig |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Crest factor | 3:1 |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 5000 VA |
| Maximum configurable power in W | 4000 W |
| Transfer time | 2 ms typisch, 4 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Efficiency | 96 % (Volllast) |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation | Zusatzmerkmale |

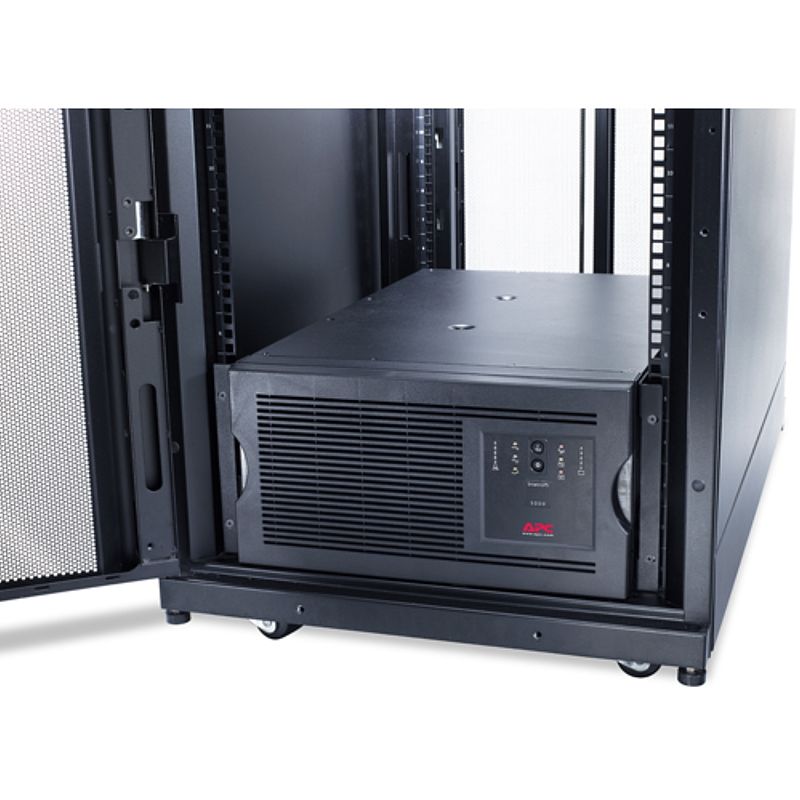

| Number of rack unit | 5U |
| Provided equipment | CD mit Software Dokumentations-CD Installationsanleitung Rack-Montage-Hardware Rack-Montage-Tragschienen Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch Web/SNMP-Managementkarte |
| Redundant | No |
| Color | Schwarz |
| Height | 222 mm |
| Width | 483 mm |
| Depth | 660 mm |
| Product weight | 97,73 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Aufbau |
| USB compatible | No |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Preinstalled device | Network management card |
| Surge energy rating | 480 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Control panel | LED-Statusanzeige mit On-Line : auf Batteriebetrieb : Batterie und Überlastungsanzeigen ersetzen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Mounting mode | Aufbau with included kit |
| UPS connectivity | Serial port USB port Available expansion slot |
| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 2 |
| Battery life | 3…5 Jahre |
| Battery charging power | 542 W bewertet | Montage |
| Product certification | C-Tick CE GOST VDE |
| Marking | GS-Zeichen |
| Acoustic level | 53 dBA |
| Heat dissipation | 430 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 106,82 kg |
| VPE 1 Höhe | 63,5 cm |
| VPE 1 Breite | 61 cm |
| VPE 1 Länge | 76,2 cm |
| VPE 2 Menge | 4 |
| VPE 2 Breite | 100 cm |
| VPE 2 Höhe | 119 cm |
| VPE 2 Gewicht | 464 kg |
| VPE 2 Art | PAL |
| VPE 2 Länge | 120 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 080b8d64-796e-42e7-a17d-31b86e55d143 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 10505 |
| Total lifecycle Carbon footprint | 10 505 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 3655.3729251893 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 3 655 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.038072123 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 43.2594109549 |
| CO₂-Fußabdruck der Installationsphase [A5] | 43 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 6796.2769490911 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 6 796 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 10.1352066951 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 10 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SUA5000RMI5U_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SUA5000RMI5U_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 58 |
