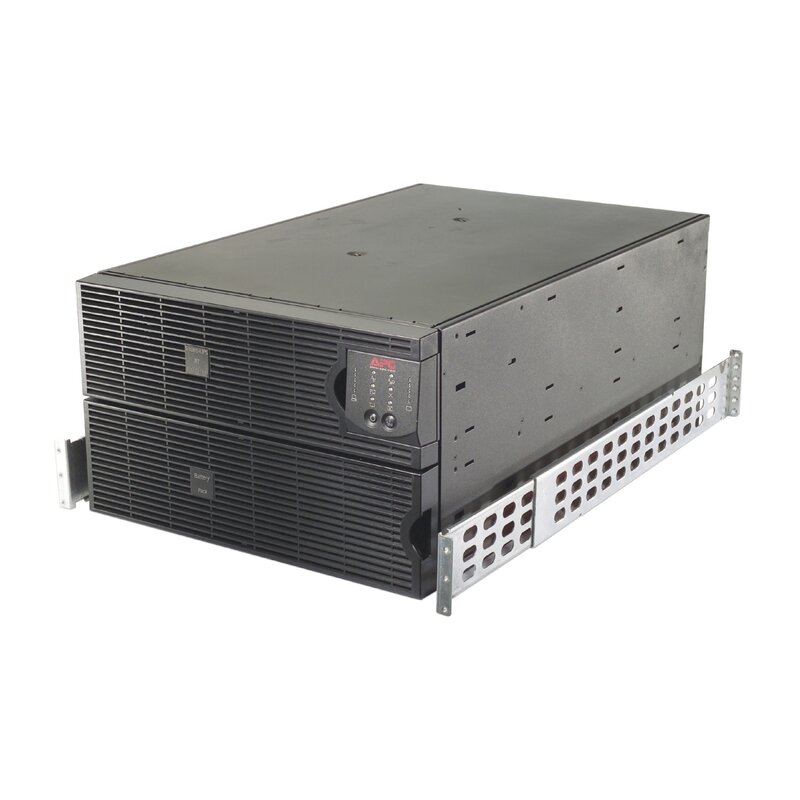

APC Smart-UPS RT, 10.000 VA, RM, 230 V
SURT10000RMXLI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Technical Drawing
|
Download |
|
Catalog
|
Download |
|
Warranty
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (4)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (3)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (7)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V 400 V 3 Phasen |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 8000 W |
| Rated power in VA | 10000 VA |

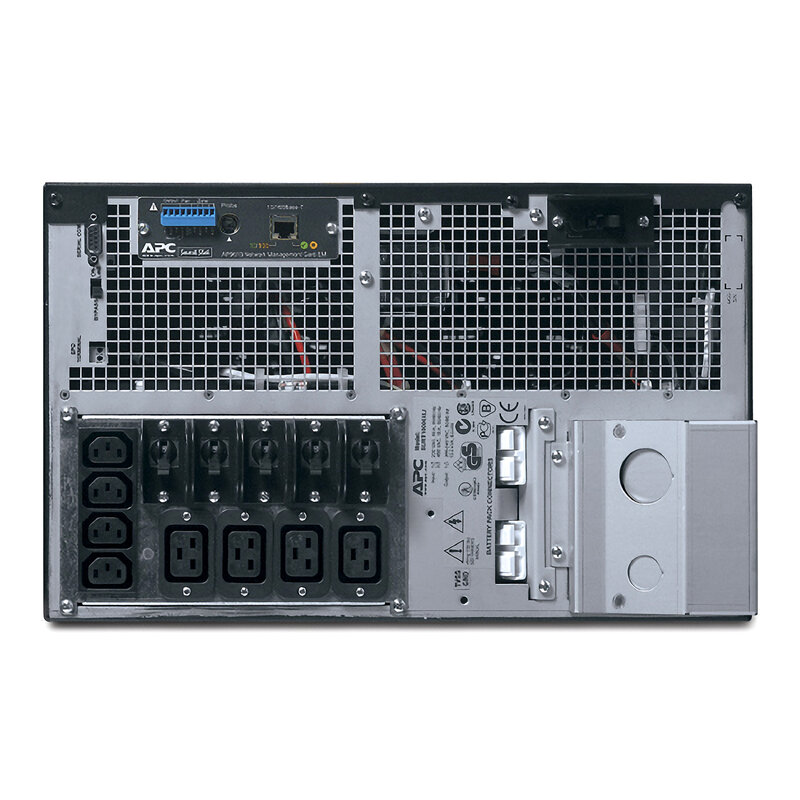

| Output connection | 4 IEC 60320 C13 6 IEC-Steckbrücken 4 IEC 60320 C19 |
| Output connection | Fest verdrahtet 3-adrig (H N + E) for 1 zone(s) |
| UPS topology | Online-Doppelwandlung |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) 1 fest verdrahtet 5-adrig (3P + N + E) |
| Efficiency at full load | 160 - 280 V |
| Input harmonic distortion | Weniger als 7 % bei Volllast |
| Maximum configurable power in VA | 10000 VA |
| Maximum configurable power in W | 8000 W |
| Output frequency | 50/60 Hz +/-3 Hz benutzerdefinierbar +/-0,1 Netzsynchronisation |
| Waveform type | Sinuswelle |
| Efficiency | 92 % (Volllast) |
| Harmonic distortion | Weniger als 3 % |
| Crest factor | 3:1 |
| Bypass type | Interner Bypass (automatisch und manuell) | Zusatzmerkmale |
| Number of rack unit | 6U |
| Provided equipment | CD mit Software Rack-Montage-Tragschienen Wartungshandbuch Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch Web/SNMP-Managementkarte |
| Redundant | No |
| Color | Schwarz |
| Height | 26,3 cm |
| Width | 43,2 cm |
| Depth | 73,6 cm |
| Product weight | 110,92 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | No |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Emergency power off | Ja |
| Surge energy rating | 1265 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Included battery module | 4 |
| Typical recharge time | 2,2 h |
| RBC quantity | 2 |
| Battery charging power | 869 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | C-Tick CE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 2262 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 409c68a1-39a6-4e5f-b080-12befe783ad8 |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Sustainable packaging | Nein |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SURT10000RMXLI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
22 Dokumente
| SURT10000RMXLI EU-RoHS-Erklärung
26/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Smart-UPS Warranty Registration Card - International
15/03/25 · Warranty |
0,1 MB | Download |
| Smart-UPS On-Line 15/03/25 · Catalog | 2,2 MB | Download |
| Smart-UPS On-Line Brochure 230V 15/03/25 · Catalog | 0,3 MB | Download |
| SBP10KRMI4U - Service Bypass Panel- 230V; 100A; MBB; IEC-320 output (8) C13 (2) C19
15/03/25 · Technical Drawing |
0,6 MB | Download |
| SBP16KRMI4U - Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output
15/03/25 · Technical Drawing |
0,4 MB | Download |
| SBP16KP - Service Bypass Panel 200/208/240V; 100A; MBB; Hardwire input/output
15/03/25 · Technical Drawing |
0,4 MB | Download |
| CSA Certificate for specified products
15/03/25 · Certificate |
0,1 MB | Download |
| Declaration of Conformity for Uninterruptible Power Supply (Smart-UPS On-Line SURT 8/10/15/20 kVA
15/03/25 · Certificate |
0,0 MB | Download |
| VDE CB Certificate for Smart-UPS 8000VA 230V
15/03/25 · Certificate |
1,7 MB | Download |
| SURT 8000/10000 VA Tower/Rack-Mount 6U 200-240 Vac 15/03/25 · User guide | 1,0 MB | Download |
| SURT 8000/10000 VA Tower/Rack-Mount 6U 200-240 Vac 15/03/25 · User guide | 1,1 MB | Download |
| SURT de 8000/10 000 VA, montaje en torre/rack 6U y 200-240 V AC
15/03/25 · User guide |
1,1 MB | Download |
| SURT 8000/10000 VA Tower/6U, montaggio in rack, 200-240 Vca
15/03/25 · User guide |
0,5 MB | Download |
| SURT 8000/10000 VA, Tower/Rackmount 6HE, 200-240 VAC
15/03/25 · User guide |
1,6 MB | Download |
| SURT 8000/10000 VA à montage en tour/rack 6U 200-240 VCA
15/03/25 · User guide |
1,1 MB | Download |
| End of Life instructions for Smart UPS Greater than 1500 _EN 15/03/25 · Circularity Profile | 0,8 MB | Download |
| UKCA Declaration of Conformity 992-9417
15/03/25 · Declaration of conformity |
0,5 MB | Download |
| EU Declaration of Conformity-992-0073
15/03/25 · Declaration of conformity |
0,3 MB | Download |
| Installation TWR to SURTRK2 Rack Conversion 15/03/25 · Instruction sheet | 2,4 MB | Download |
| UK Declaration of Conformity 15/02/25 · Declaration of conformity | 0,5 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
