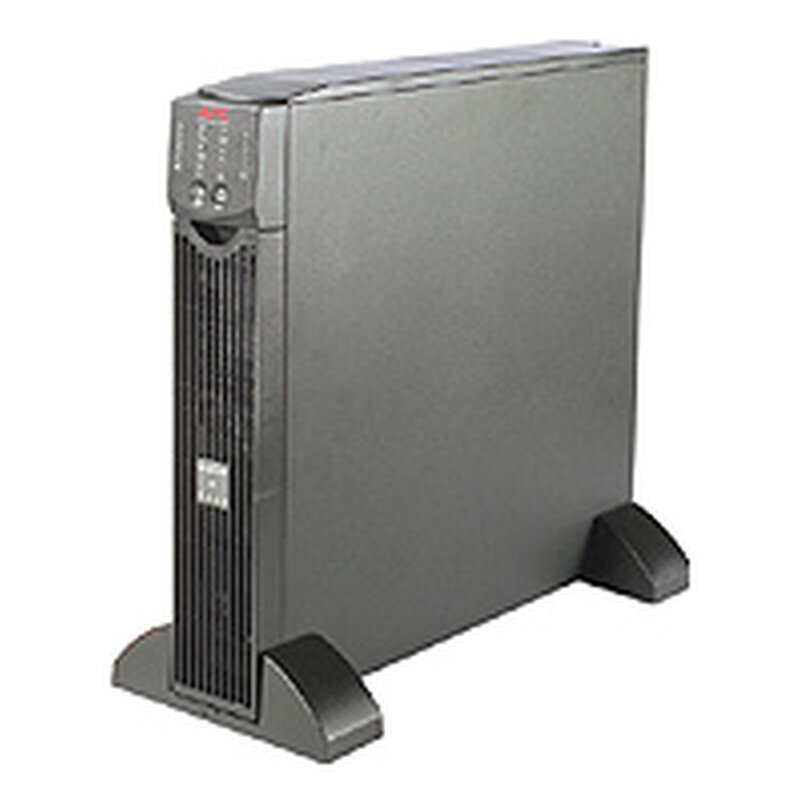

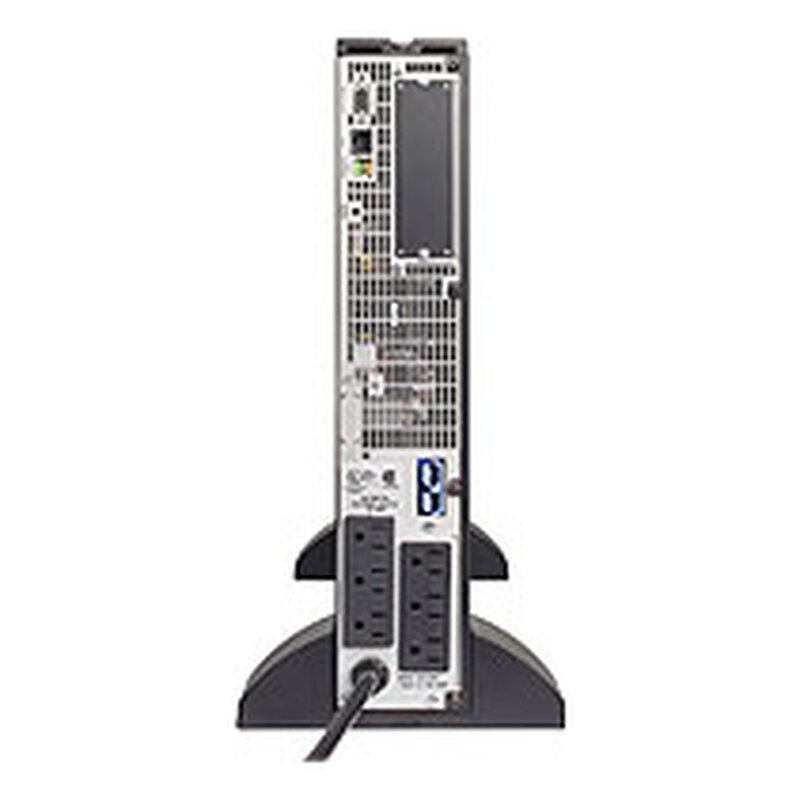

APC Smart-UPS RT 1500VA, 100V
SURTA1500XLJ
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Schnittstellen-Anschlüsse Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
Sensoren: Kompatible Produkte
Sensoren (2)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochleistungs-USV-Systeme mit Doppelwandler-Online-Technologie und skalierbarer Autonomiezeit | Hauptmerkmale |
| Main input voltage | 100 V |
| Output voltage | 100 V |
| Rated power in W | 1050 W |
| Rated power in VA | 1200 VA |
| Input connection | NEMA 5-15P |
| Output connection | 6 NEMA 5-15R |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Maximum configurable power in W | 1050 W |
| Harmonic distortion | Weniger als 3 % |
| Output frequency | 50/60 Hz +/-3 Hz benutzerdefinierbar +/-0,1 Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | Online |
| Waveform type | Sinuswelle |
| Bypass type | Integrierter Bypass |
| Efficiency | 87 % (Volllast) |
| Maximum configurable power in VA | 1500 VA | Zusatzmerkmale |
| Number of rack unit | 2U |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Provided equipment | Dokumentations-CD Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch (Japanisch) |
| Redundant | No |
| Color | Schwarz |
| Height | 43,2 cm |
| Width | 8,6 cm |
| Depth | 56,5 cm |
| Product weight | 27,5 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Free slot | 1 |
| Emergency power off | Ja |
| Product or component type | Unterbrechungsfreie Stromversorgung | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery charging power | 118 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | VCCI |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 393 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 33 kg |
| VPE 1 Höhe | 26 cm |
| VPE 1 Breite | 73,7 cm |
| VPE 1 Länge | 61 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SURTA1500XLJ_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
17 Dokumente
| SURTA1500XLJ EU-RoHS-Erklärung
26/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Smart-UPS SURTA 1500XL/2200XL 100/120V TWR/RM2U 15/03/25 · User guide | 0,4 MB | Download |
| Smart-UPS RT de 1500/2000 VA y 100/120 V AC
15/03/25 · User guide |
0,6 MB | Download |
| Smart-UPS SURTA 1500XL/2200XL 100/120V TWR/RM2U 15/03/25 · User guide | 0,5 MB | Download |
| CSA Certificate for specified products
15/03/25 · Certificate |
0,1 MB | Download |
| UL Certificate for APC Smart UPS RT 1000VA, 1500VA,2000VA and 2200VA 120V
15/03/25 · Certificate |
0,2 MB | Download |
| Smart-UPS RT 1500/2000 VA 100/120 VAC
15/03/25 · User guide |
0,6 MB | Download |
| Smart-UPS SURTA 1500XL/2200XL 100/120V TWR/RM2U 15/03/25 · User guide | 0,2 MB | Download |
| Smart-UPS RT Tower to SURTRK Rack Conversion (Sheet)
15/03/25 · Instruction sheet |
0,3 MB | Download |
| Onduleur Smart-UPS RT 1500/2000 VA 100/120 VCA
20/01/25 · User guide |
0,5 MB | Download |
| Smart-UPS SURTA 1500XL/2200XL 100/120V TWR/RM2U 20/01/25 · User guide | 0,5 MB | Download |
| UL Listed Certification, VCCI approval certification
20/01/25 · Certificate |
0,0 MB | Download |
| BSMI(Formerly BCIQ),CSA Certified,FCC Verified,UL Listed
20/01/25 · Certificate |
0,4 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 User guide | 0,0 MB | Download |
| 01/01/70 User guide | 0,0 MB | Download |
