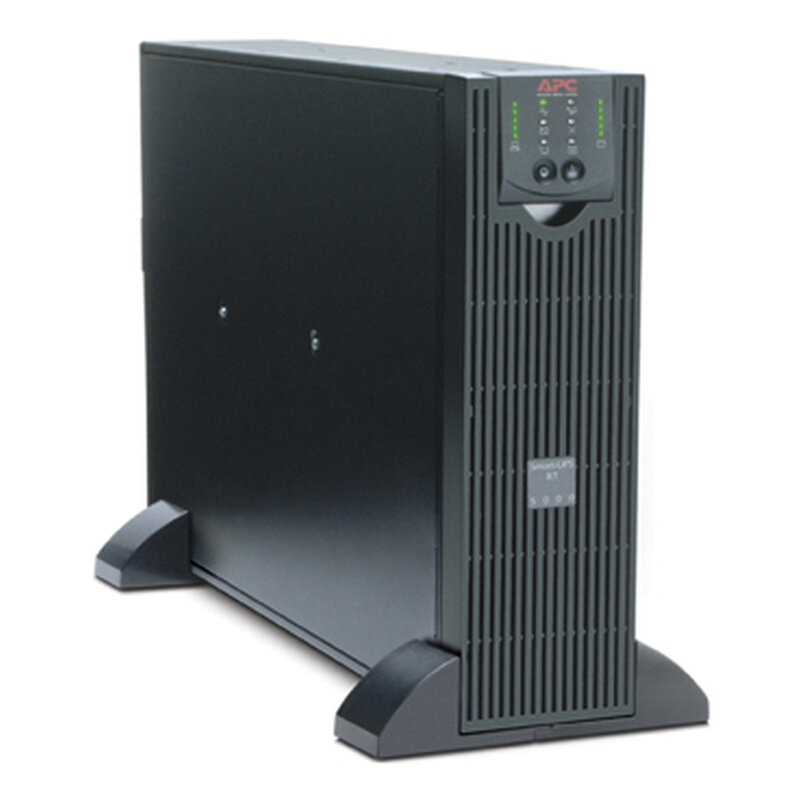

APC Smart-UPS RT 5000VA, 208 V
SURTD5000XLT
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 208 V |
| Other input voltage | 240 V |
| Output voltage | 208 V |
| Other output voltage | 240 V |
| Rated power in W | 3500 W |
| Rated power in VA | 5000 VA |
| Input connection | NEMA L6-30P |
| Output connection | 2 NEMA L6-20R 2 NEMA L6-30R |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Efficiency at full load | 160 - 280 V |
| Maximum configurable power in W | 3500 W |
| Harmonic distortion | Weniger als 3 % |
| Output frequency | 50/60 Hz +/-3 Hz benutzerdefinierbar +/-0,1 Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | Online-Doppelwandlung |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Maximum configurable power in VA | 5000 VA | Zusatzmerkmale |
| Number of rack unit | 3U |
| Cable length | 3,05 m |
| Number of cables | 1 |
| Provided equipment | CD mit Software Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch Web/SNMP-Managementkarte |
| Redundant | No |
| Color | Schwarz |
| Height | 43,2 cm |
| Width | 13 cm |
| Depth | 66 cm |
| Product weight | 54,55 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Additional information | Konfigurierbar für 208 V oder 240 V Nennspannung |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Emergency power off | Ja |
| Surge energy rating | 555 J |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Included battery module | 2 |
| Typical recharge time | 2,5 h |
| RBC quantity | 1 |
| Battery charging power | 382 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | CSA |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1150 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 63,64 kg |
| VPE 1 Höhe | 34,7 cm |
| VPE 1 Breite | 98 cm |
| VPE 1 Länge | 60,3 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SURTD5000XLT_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
11 Dokumente
| SURTD5000XLT EU-RoHS-Erklärung
26/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Smart-UPS RTD3000/5000 VA 200-240 Vac Tower/Rack-Mount 3U 15/03/25 · User guide | 1,5 MB | Download |
| VDE CB Certificate SURT5000XLICH
15/03/25 · Certificate |
0,1 MB | Download |
| Smart-UPS RTD3000/5000 VA, 200-240 Vca, Tower/3U, montaggio in rack 15/03/25 · User guide | 1,5 MB | Download |
| Onduleur Smart-UPS RTD3000/5000 VA 200-240 VCA à montage en tour/rack 3U 15/03/25 · User guide | 1,5 MB | Download |
| Smart-UPS RTD de 3000/5000 VA y 200-240 V AC montaje en torre/rack 3U 15/03/25 · User guide | 1,5 MB | Download |
| CSA certificate for SURT3000, 5000 and 6000 family
15/03/25 · Certificate |
0,1 MB | Download |
| VDE CB Certificate SURT5000XLI
15/03/25 · Certificate |
0,1 MB | Download |
| Smart-UPS RTD3000/5000 VA 200-240 Vac Tower/Rack-Mount 3U 15/03/25 · User guide | 1,1 MB | Download |
| Smart-UPS RTD3000/5000 VA, 200-240 VAC, Tower/Rackmount 3HE 15/03/25 · User guide | 2,6 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
