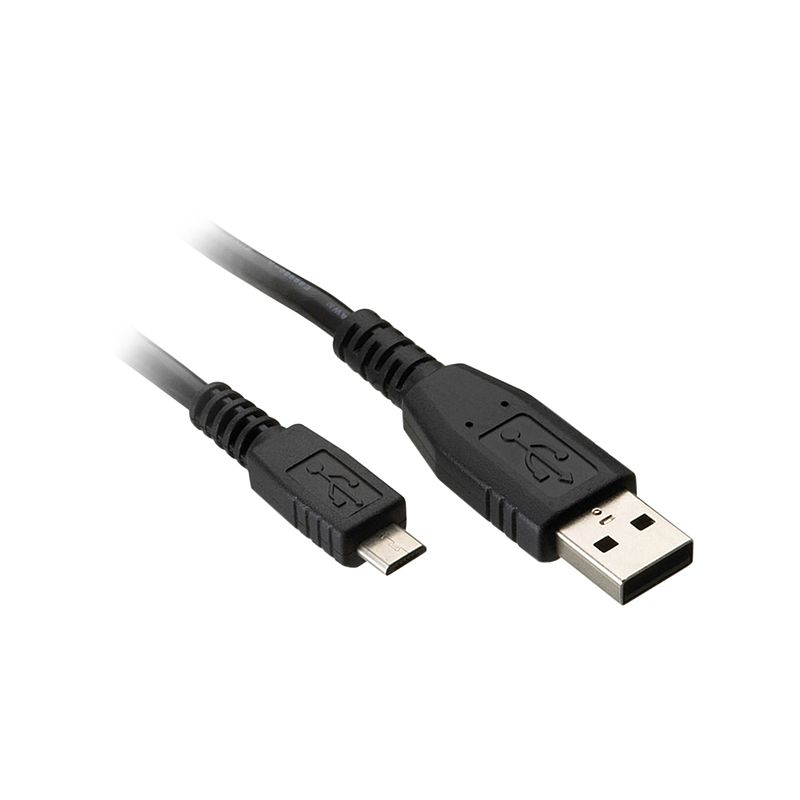

Programmierkabel, Modicon, USB-A/USB mini, Länge 3 m
TCSXCNAMUM3P
Materialpreisgruppe
: BV
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Brochure
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Technical Drawing
|
Download |
|
Software - Release
|
Download |
|
Catalog
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Modicon M258 Modicon M238 Preventa Sicherheitstechnik Modicon LMC058 Modicon M262 |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Zubehör / Teiletyp | Anschlusskabel Terminal-Schnittstelle / Kabelsatz USB-Schnittstelle |
| Kompatible Produktfamilie | Modicon M258 Preventa XPSMCM Modicon M238 Modicon LMC058 Modicon M262 |
| Kabellänge | 3 m |
| Produkt- oder Komponententyp | Anschlusskabel | Zusatzmerkmale |
| Elektrische Verbindung | 1 Stecker Mini-B-USB an der Modicon M238 1 Stecker USB A auf dem PC-Terminal |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 99,000 g |
| VPE 1 Höhe | 3,000 cm |
| VPE 1 Breite | 5,000 cm |
| VPE 1 Länge | 15,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 80 |
| VPE 2 Gewicht | 8,673 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
| Frei von giftigen Schwermetallen | Ja |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
