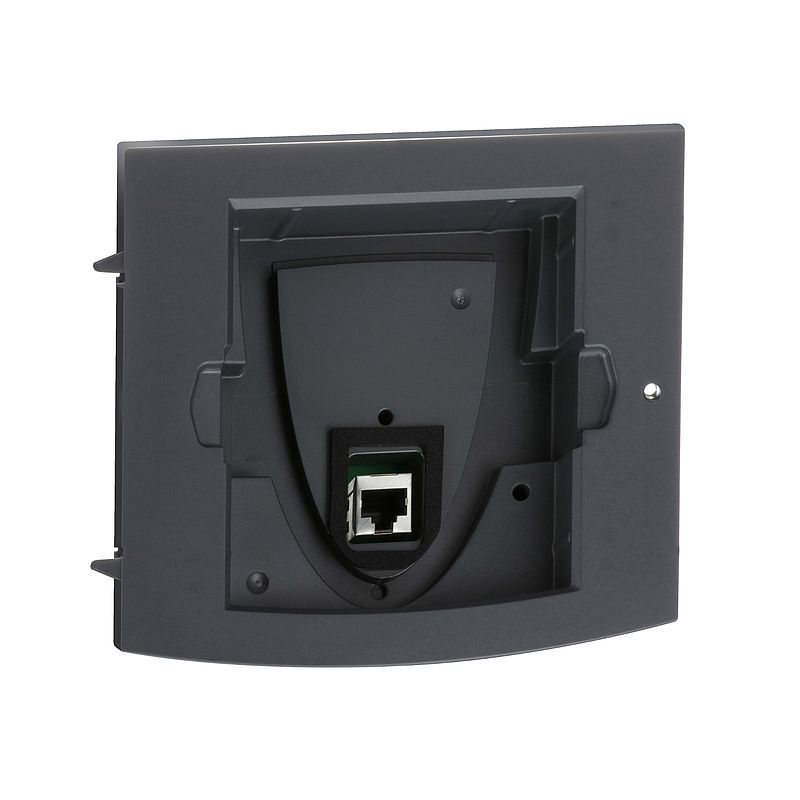

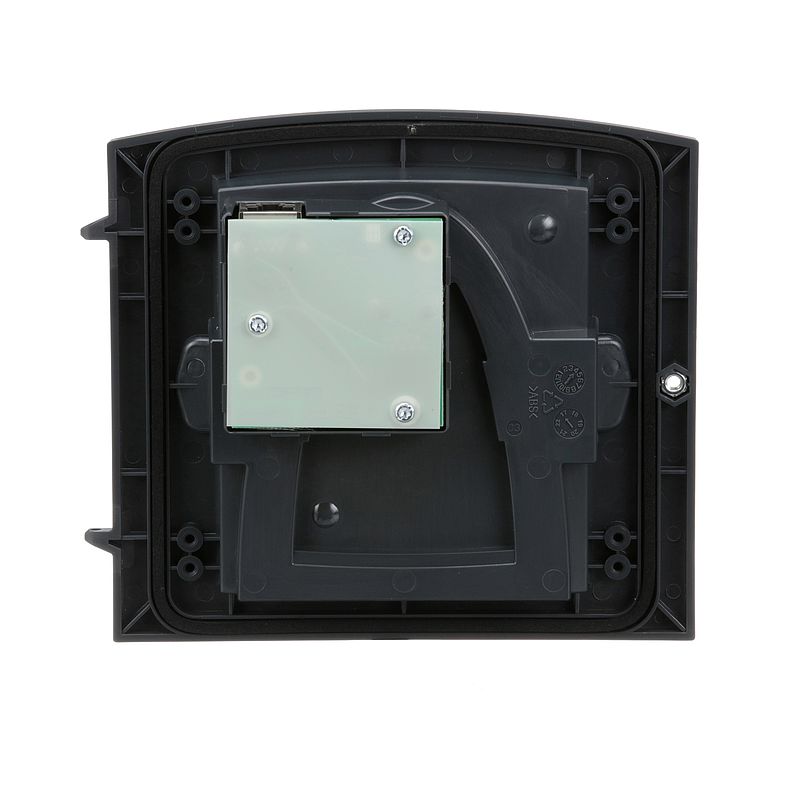

Montagebausatz, für Grafikterminal, Frequenzumrichter, IP54
VW3A1102
Materialpreisgruppe
: CI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Handout
|
Download |
|
Instruction sheet
|
Download |
|
Catalog
|
Download |
|
CAD
|
Download |
|
Declaration of conformity
|
Download |
Dieses Produkt ist kompatibel mit
Zubehörteile: Kompatible Produkte
Zubehörteile (4)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Altivar |
| Zubehör / Teilekategorie | Montage- und Befestigungszubehör |
| Zubehör / Teiletyp | Montage-Bausatz |
| Zubehör / Zielkategorie | Antrieb mit variabler Geschwindigkeit |
| Kompatible Produktfamilie | Altivar 71 Altivar 71Q Altivar 32 Altivar 61 Altivar 212 Altivar 61Q Altivar Maschine ATV320 |
| Schutzart (IP) | IP54 | Zusatzmerkmale |
| Zusammenstellung Kombipaket | Schrauben und Bolzen für die Montage Befestigungsmaterial |
| Produktgewicht | 0,15 kg | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 258,000 g |
| VPE 1 Höhe | 8,000 cm |
| VPE 1 Breite | 17,000 cm |
| VPE 1 Länge | 23,500 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 7 |
| VPE 2 Gewicht | 2,554 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 3 Art | S06 |
| VPE 3 Menge | 56 |
| VPE 3 Gewicht | 29,448 kg |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| SCIP-Nummer | 7299f209-f2b3-4a20-bb19-c52cbb048039 |
| Sustainable packaging | Nein |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=VW3A1102_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=VW3A1102_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
