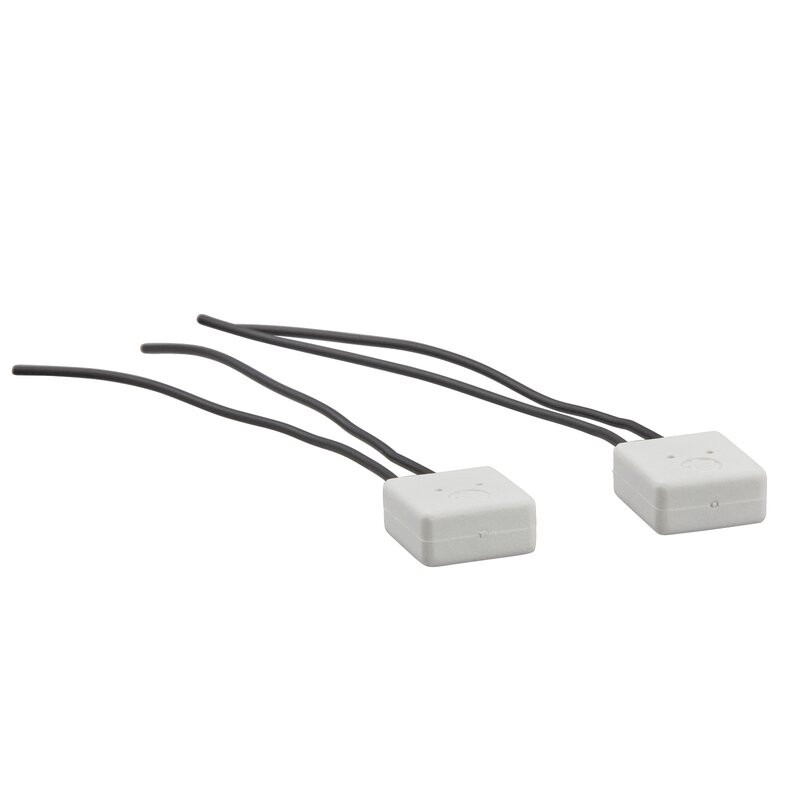

Abschlusswiderstand Modbus, 120Ohm, für Schraubanschluss
VW3A8306DRC
Materialpreisgruppe
: CI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Technical Drawing
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | MasterPacT NT Altivar MasterPacT NW |
| Bustyp | Modbus |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Zubehör / Teiletyp | Leitungsabschluss |
| Zubehör / Zielkategorie | Schraubklemme |
| Menge pro Satz | Satz à 2 | Zusatzmerkmale |
| Kompatible Produktfamilie | Altivar 31 Altistart 48 Lexium SD3 Altivar 312 Altivar 31C Compact NSX DC & DC PV PowerPact Multistandard |
| Kommunikationsprotokoll | Modbus |
| Abschlusswiderstand | 120 Ohm |
| Abschlusskapazität | 1 nF |
| Produktgewicht | 0,2 kg | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 8,000 g |
| VPE 1 Höhe | 1,000 cm |
| VPE 1 Breite | 10,000 cm |
| VPE 1 Länge | 10,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 100 |
| VPE 2 Gewicht | 1,454 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 3 Art | P06 |
| VPE 3 Menge | 800 |
| VPE 3 Gewicht | 21,632 kg |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
| Sustainable packaging | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Verpackung ohne Kunststoff | Nein |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=VW3A8306DRC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=VW3A8306DRC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
