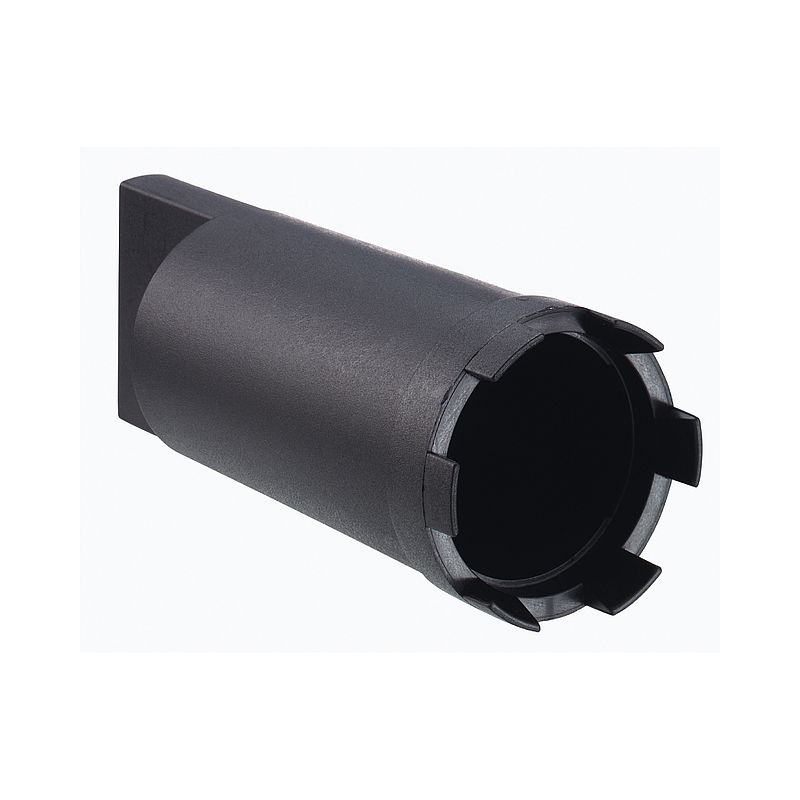

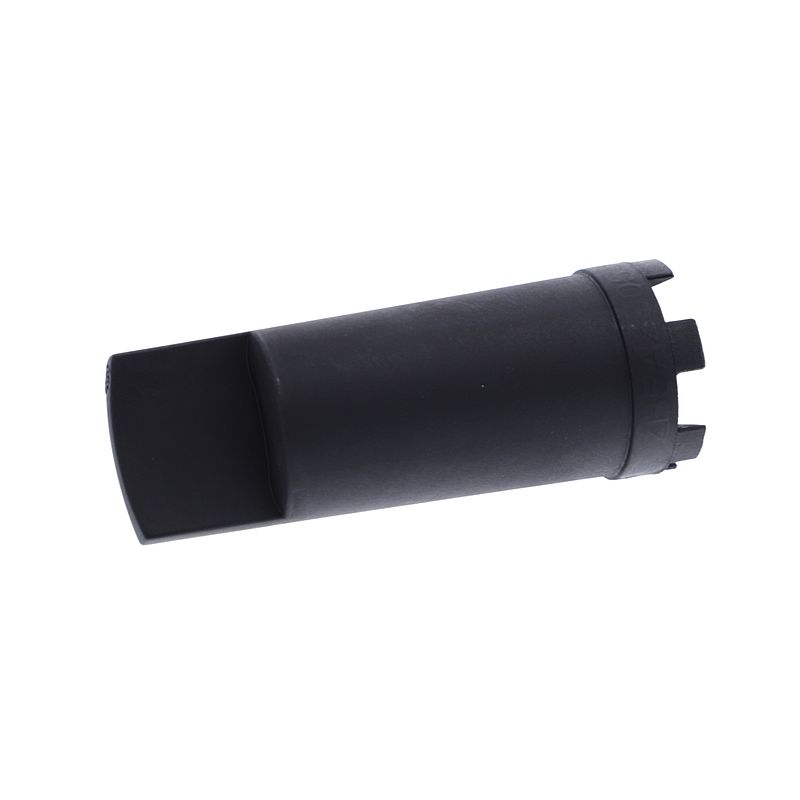

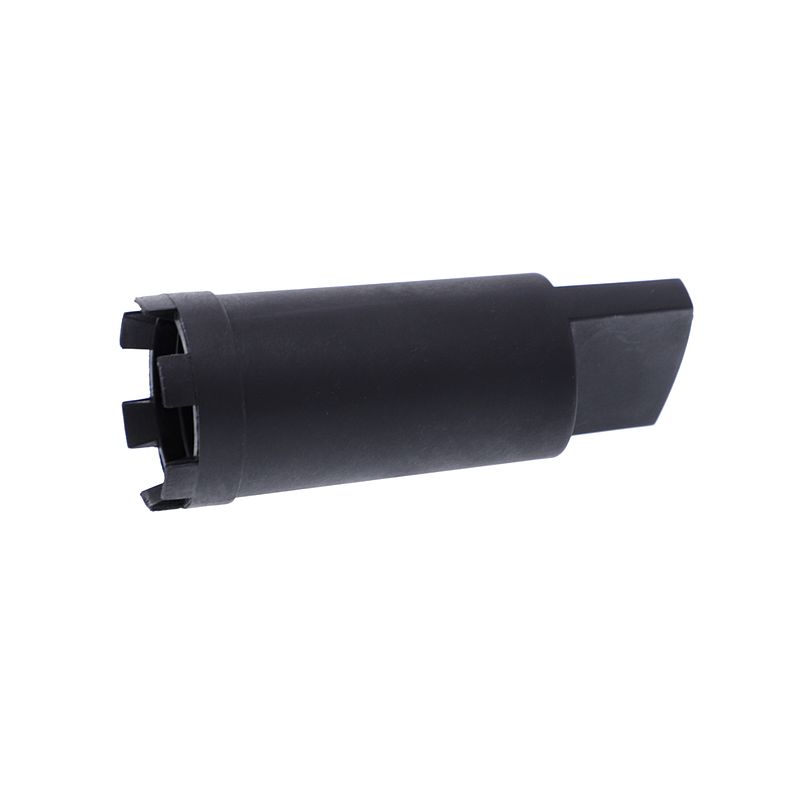

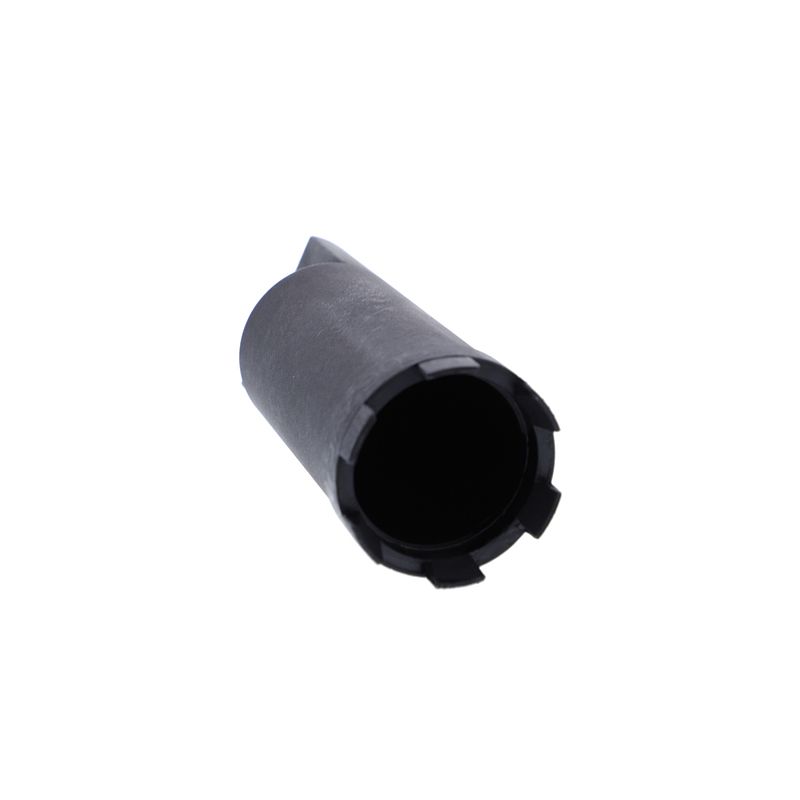

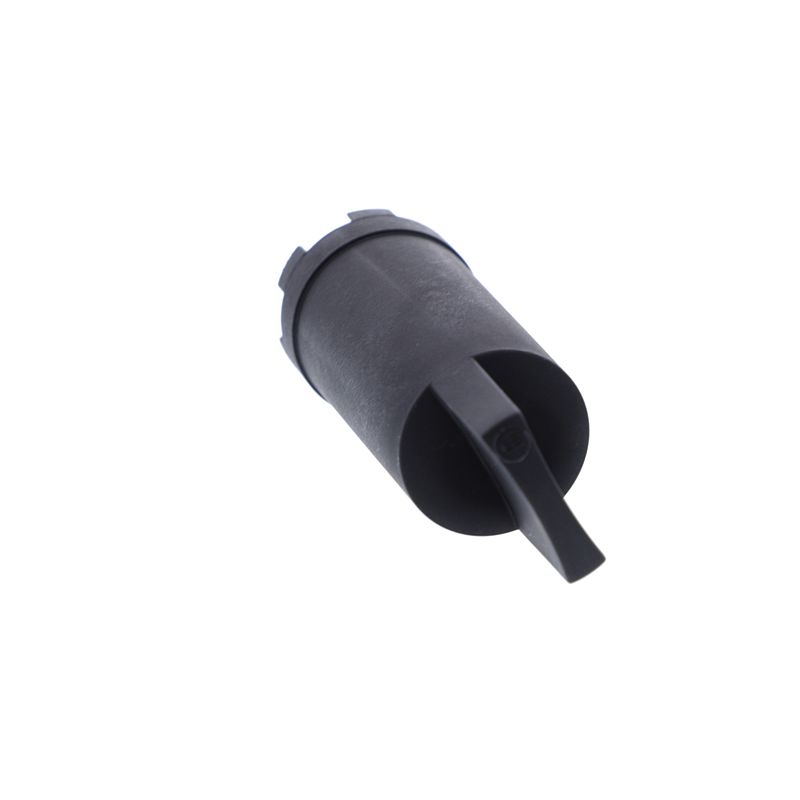

Montagewerkzeug für Befestigungsmutter, Harmony XB5, Kunststoff, schwarz
ZB5AZ905
Materialpreisgruppe
: BA
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Quick start guide
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Technical Drawing
|
Download |
|
CAD
|
Download |
|
Catalog
|
Download |
|
Declaration of conformity
|
Download |
|
Certificate
|
Download |
|
Offer Marketing Illustration
|
Download |
|
Promotional video
|
Video anzeigen |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Modicon M221 Harmony XB5 |
| Produkt- oder Komponententyp | Spannwerkzeug |
| Zubehör / Teilekategorie | Montage- und Befestigungszubehör |
| Produktkompatibilität | ZB5AZ901 |
| Zubehör / Zielkategorie | Kopf-Befestigungsmutter | Zusatzmerkmale |
| Menge pro Satz | Satz à 1 Stück | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 20,0 g |
| VPE 1 Höhe | 8,0 cm |
| VPE 1 Breite | 3,0 cm |
| VPE 1 Länge | 3,0 cm |
| VPE 2 Art | S01 |
| VPE 2 Menge | 80 |
| VPE 2 Höhe | 15 cm |
| VPE 2 Breite | 15 cm |
| VPE 2 Länge | 40 cm |
| VPE 2 Gewicht | 2 kg |
| VPE 3 Art | P06 |
| VPE 3 Menge | 2560 |
| VPE 3 Höhe | 75 cm |
| VPE 3 Breite | 60 cm |
| VPE 3 Länge | 80 cm |
| VPE 3 Gewicht | 72 kg | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
| Frei von giftigen Schwermetallen | Ja |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 1 |
| Total lifecycle Carbon footprint | 0.1 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.1200233918 |
| CO2 Fußabdruck am Ende der Betriebsdauer | 0.1 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0026153216 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0001486316 |
| CO2 Fußabdruck während der Einrichtung | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.0175108187 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0 kg CO2 eq. |
