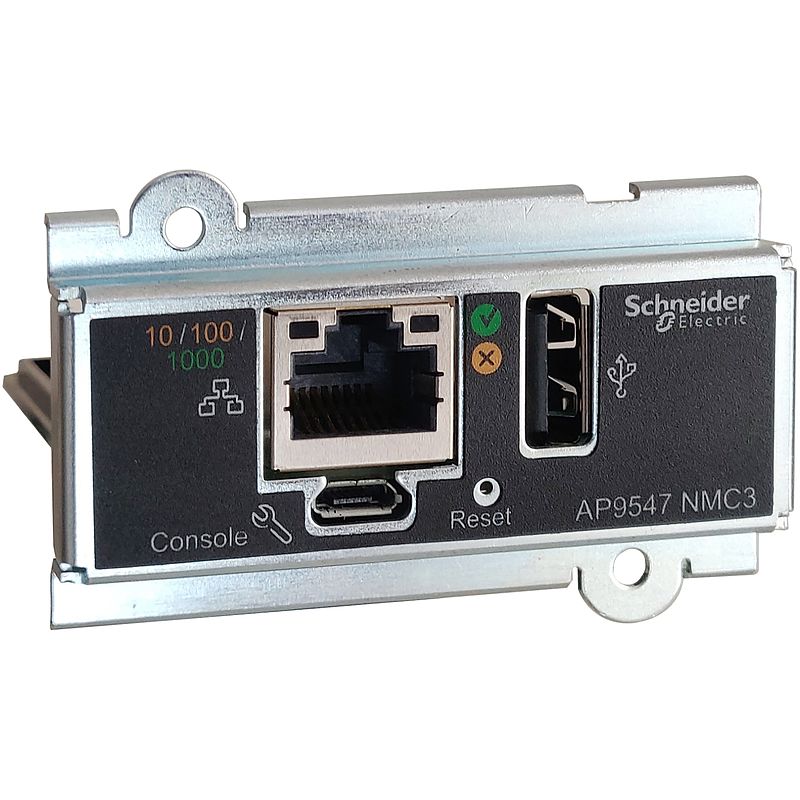

Netzwerkmanagement-Karte, USV Netzwerkmanagement-Karten, für Easy UPS 3 Serie, 3-Phasen, Fernüberwachung und -verwaltung der USV
AP9547
Hauptdokumente
 Produktdatenblatt |
Download |
|
User guide
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Quick start guide
|
Download |
|
Brochure
|
Download |
|
Circularity Profile
|
Download |
|
Firmware - History, Utility & Others
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
|
Certificate of Origin
|
Download |
|
Declaration of conformity
|
Download |
|
Firmware
|
Download |
Dieses Produkt ist kompatibel mit
Adapter für drahtlose Kommunikation: Kompatible Produkte
Adapter für drahtlose Kommunikation (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | <p>The Network Management Card for Easy UPS 3 Series (AP9547) enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3S Pro, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system.</p><p>A 1-year Secure NMC System with IEC 62443-4-2 compliant NMC firmware updates is included with the purchase of the Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra) or EcoCare membership with onsite maintenance visits for the UPS is required to get future NMC firmware updates.</p> |
| Lieferzeit | Normalerweise auf Lager | Vertragliche Gewährleistung |
| Gewährleistung | 24 months | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 5,000 cm |
| VPE 1 Breite | 16,500 cm |
| VPE 1 Länge | 24,000 cm |
| Verpackungsgewicht (Lbs) | 314,000 g |
| VPE 2 Art | P06 |
| VPE 2 Menge | 44 |
| VPE 2 Höhe | 55,000 cm |
| VPE 2 Breite | 60,000 cm |
| VPE 2 Länge | 80,000 cm |
| VPE 2 Gewicht | 17,000 kg | Hauptmerkmale |
| Produkt- oder Komponententyp | Device monitoring and management |
| Geliefertes Zubehör | Micro-USB cable Installationshandbuch |
| Baureihe | Network Management Cards |
| Kompatible Produktfamilie | Easy UPS 3S Easy UPS 3M Easy UPS 3L Easy UPS 3S Pro Galaxy PW 2nd generation |
| Anzahl der Eingangsphasen | 3 |
| Normen | CISPR 32 VCCI Klasse A ICES-003 EN 55024 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-6-2 EN/IEC 62040-2 |
Abmessungen |
| Höhe | 4,4 cm |
| Breite | 5,2 cm |
| Tiefe | 8,0 cm |
| Produktgewicht | 0,05 kg | Konformität |
| Produktzertifizierungen | FCC Klasse A AS/NZS |
Umgebung |
| Umgebungstemperatur bei Betrieb | -15…65 °C |
| Betriebshöhe | 0 - 10.000 ft |
| Relative Luftfeuchtigkeit | 0…95 % |
| Umgebungstemperatur bei Lagerung | -15…65 °C |
| Aufbewahrungshöhe | 0…15240 m |
| Relative Feuchtigkeit bei Lagerung | 0…95 % | Kommunikation & Management |
| Kommunikationsnetztyp | 10/100/1000BASE-T |
| Authentifizierung | Radius |
| Kommunikationsprotokoll | HTTP over secure sockets Layer (HTTPS) SSH FTP HTTP SNMP DHCP BOOTP (Bootstrap Protocol) TCP/IP |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Konform mit Ausnahmen EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| SCIP-Nummer | F4c2965e-f80d-4830-8cd4-be926afb0f45 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| CO2-Bilanz (kg CO2 eq.) | 69 |
| Total lifecycle Carbon footprint | 69 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 3.116 |
| CO2 Fußabdruck am Ende der Betriebsdauer | 3 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.02272 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | 0 kg CO2 eq. |
| CO2 Fußabdruck während der Einrichtung | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 66.25 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 66 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.02 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0 kg CO2 eq. |
| WEEE Label | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
24 Dokumente
| AP9547 REACh-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| AP9547 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| AP9547 China-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| NMC for Easy UPS (AP9547), 3-Phase - Brochure 02/04/25 · Brochure | 0,3 MB | Download |
| NMC for Easy UPS (AP9547), 3-Phase - FAQ 02/04/25 · Quick start guide | 0,2 MB | Download |
| Secure NMC System FAQ - 3-Phase 02/04/25 · User guide | 0,2 MB | Download |
| APC PowerNet MIB 15/03/25 · Firmware | 2,9 MB | Download |
| Galaxy PW 2nd Gen Certificate of Origin 15/03/25 · Certificate of Origin | 0,1 MB | Download |
| Galaxy PW 2nd Gen EU Declaration of Conformity 15/03/25 · Declaration of conformity | 0,3 MB | Download |
| Network Management Card (AP9547) for Easy UPS, 3-Phase Firmware v2.5.0.1 Release Notes 15/03/25 · User guide | 1,0 MB | Download |
| Network Management Card (AP9457) for Easy-UPS Modbus Register Map 15/03/25 · User guide | 0,3 MB | Download |
| Network Management Card for Easy UPS, 3-Phase BACnet Application Map 15/03/25 · User guide | 0,2 MB | Download |
| UPS Network Management Cards, ENV Disclosure, PEP, Schneider Electric 15/03/25 · Environmental Disclosure | 1,0 MB | Download |
| NMC Security Wizard CLI Utility 15/03/25 · Software - Release | 0,6 MB | Download |
| Network Management Card Device IP Configuration Utility v5.0.4 15/03/25 · Firmware - History, Utility & Others | 0,0 MB | Download |
| UPS Network Management Card, Circualrity Profile,EOLI, Schneider Electric 15/03/25 · Circularity Profile | 0,2 MB | Download |
| Network Management Card for Easy UPS, 1-Phase & 3-Phase - CLI Guide 15/03/25 · Quick start guide | 1,6 MB | Download |
| Network Management Card for Easy UPS, 1-Phase & 3-Phase - User Guide 15/03/25 · User guide | 2,5 MB | Download |
| Network Management Card for Easy UPS, 1-Phase & 3-Phase - Installation Guide 15/03/25 · Quick start guide | 1,9 MB | Download |
| Benutzerhandbuch für die Netzwerkmanagement-Karte für Einphasen- und Dreiphasen-Easy-UPS-Geräte 15/03/25 · User guide | 3,6 MB | Download |
| UPS Network Management Card - Product Center 15/03/25 · Quick start guide | 1,4 MB | Download |
| Galaxy PW 2nd Gen UKCA Declaration of Conformity
15/02/25 · Declaration of conformity |
0,4 MB | Download |
| Befehlszeilenhandbuch für die Netzwerkmanagement-Karte für Einphasen- und Dreiphasen-Easy-UPS-Geräte 15/02/25 · User guide | 2,2 MB | Download |
| Network Management Card for Easy UPS Installationshandbuch 15/02/25 · Quick start guide | 1,3 MB | Download |
