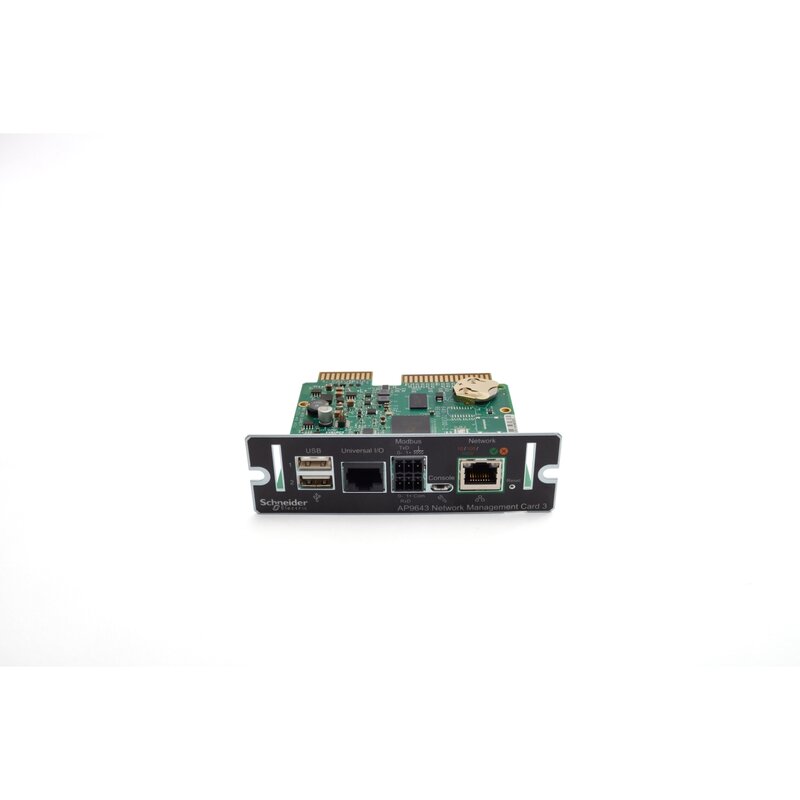

USV-Netzwerkmanagement-Karte 3 mit Raumüberwachung und Modbus
AP9643
Hauptdokumente
 Produktdatenblatt |
Download |
|
System user guide
|
Download |
|
Application Notes
|
Download |
|
Quick start guide
|
Download |
|
Firmware - History, Utility & Others
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Brochure
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
Software - Release
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Handout
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Optionen: Kompatible Produkte
Optionen (3)
Spezifikationen
| Übersicht | |
|---|---|
| Lieferzeit | Normalerweise auf Lager | Hauptmerkmale |
| Geliefertes Zubehör | Temperatursensor Micro-USB cable Installationshandbuch |
| Baureihe | Network Management Cards |
| Kompatible Produktfamilie | Galaxy VM Galaxy VX Symmetra PX Smart-UPS Smart-UPS Ultra Smart-UPS On-Line Smart-UPS Modular Ultra Smart-UPS Battery Systems Back-UPS SX3 Refurbished Smart-UPS |
| Produkt- oder Komponententyp | Device monitoring and management |
| Anzahl der Eingangsphasen | 1 3 |
| Normen | EN 61000-4-2 BS EN 61000-4-2 EN 61000-4-3 BS EN 61000-4-3 EN 61000-4-4 BS EN 61000-4-4 EN 61000-4-5 BS EN 61000-4-5 EN 61000-4-6 BS EN 61000-4-6 EN 61000-4-8 BS EN 61000-4-8 EN 61000-4-11 BS EN 61000-4-11 BS EN 55024 EN 55035 BS EN 55035 EN 62040-2 BS EN 62040-2 EN 55011:A1 EN 55024:A1 EN 55032:Klasse A VCCI Klasse A ICES-003:issue 6 BS EN 55032:Klasse A BS EN 55011:A1 |
Abmessungen |
| Höhe | 3,8 cm |
| Breite | 12,1 cm |
| Tiefe | 10,8 cm |
| Produktgewicht | 0,14 kg | Kommunikation & Management |
| Authentifizierung | Radius Lightweight Directory Access Protocol (LDAP) |
| Kommunikationsnetztyp | 10/100/1000BASE-T |
| Kommunikationsprotokoll | HTTP over secure sockets Layer (HTTPS) SSH FTP HTTP SNMP DHCP BOOTP (Bootstrap Protocol) TCP/IP |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 0,91 kg |
| VPE 1 Höhe | 5,1 cm |
| VPE 1 Breite | 15,9 cm |
| VPE 1 Länge | 23,5 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Allgemein |
| Varianten-Option | Environmental monitoring with Modbus | Konformität |
| Produktzertifizierungen | FCC Klasse A AS/NZS |
Umgebung |
| Relative Feuchtigkeit bei Lagerung | 0…95 % |
| Relative Luftfeuchtigkeit | 0…95 % |
| Umgebungstemperatur bei Lagerung | -15…65 °C |
| Umgebungstemperatur bei Betrieb | -5…45 °C |
| Aufbewahrungshöhe | 0…15240 m |
| Betriebshöhe | 0 - 10.000 ft |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Konform EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Austauschbare Batterie | Ja |
| CO2-Bilanz (kg CO2 eq.) | 195 |
| Frei von giftigen Schwermetallen | Ja |
| SCIP-Nummer | F4c2965e-f80d-4830-8cd4-be926afb0f45 |
| Total lifecycle Carbon footprint | 195 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 9.4518666667 |
| CO2 Fußabdruck am Ende der Betriebsdauer | 9 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0689173333 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | 0.1 kg CO2 eq. |
| CO2 Fußabdruck während der Einrichtung | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 185.5 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 186 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.0606666667 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.1 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| EU-RoHS-Richtlinie | Konform |
