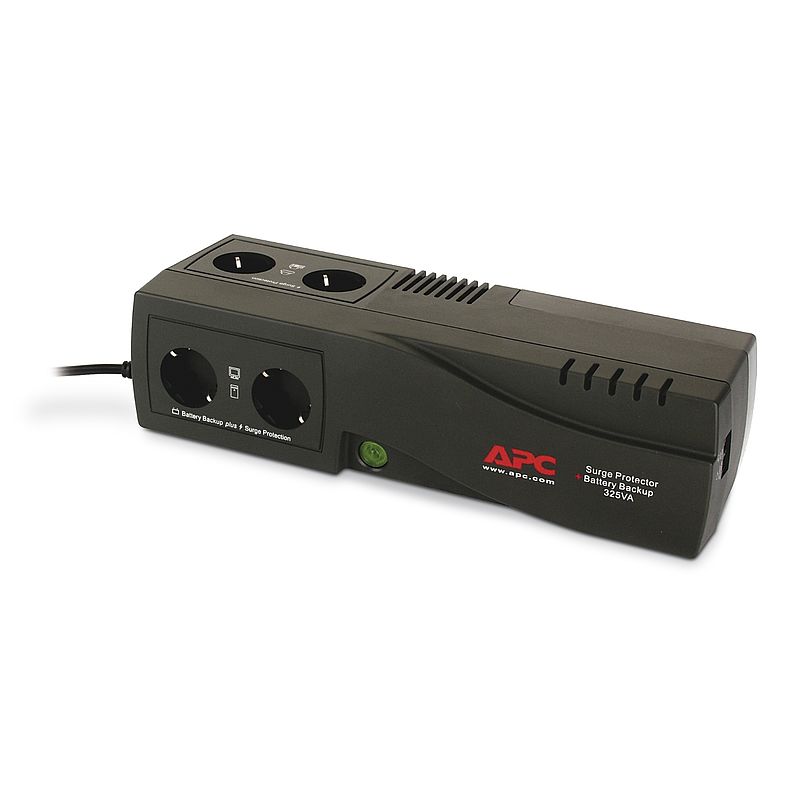

APC SurgeArrest + Batterie Backup 325VA Italienisch, Batterie 12V, 3.0Ah
BE325-IT
Lieferbar solange Restbestän…
Eingestellt am: 21. February 2024
EAN Code: 0731304217039
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Softwares Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Output voltage | 230 V |
| Rated power in W | 185 W |
| Rated power in VA | 325 VA |
| Input connection | Schuko CEE 7/7-polig |
| Output connection | 2 Schuko CEE 7 2 Schuko CEE 7 Spitze |
| Input frequency | 50 Hz +/-3 Hz |
| Efficiency at full load | 180 - 260 V |
| Maximum configurable power in W | 185 W |
| Output frequency | 50 Hz Netzsynchronisation |
| UPS topology | Stand-by |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Maximum output current | 4 A |
| Maximum configurable power in VA | 325 VA | Zusatzmerkmale |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Provided equipment | Benutzerhandbuch |
| Number of power modules | 210 |
| Redundant | No |
| Color | Holzkohle |
| Height | 115 mm |
| Width | 360 mm |
| Depth | 95 mm |
| Product weight | 4 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Battery capacity | 3,0 AH |
| Control panel | LED Statusanzeige mit On-Line: Batteriebetrieb |
| Surge energy rating | 300 J |

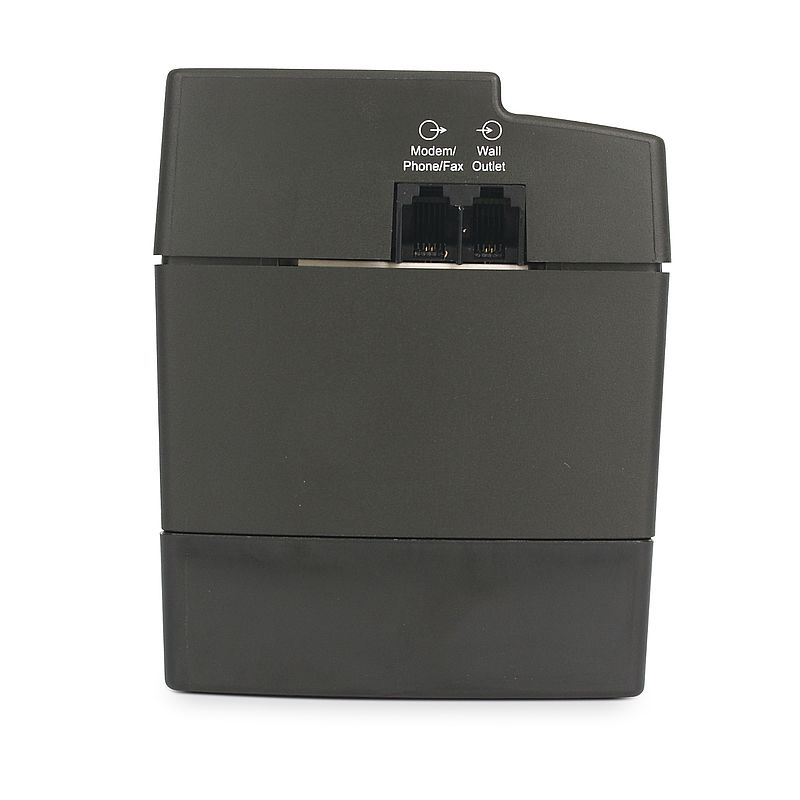

| Data line protection | RJ11, Schutz für Modem/Fax/DSL (zwei Drähte, eine Leitung) |
| Range of product | Back-UPS |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 24 h |
| RBC quantity | 1 |
| Battery voltage | 12 V |
| Battery charging power | 2 W bewertet |
| Battery life | 3…5 Jahre | Montage |
| Product certification | CE NEMKO |
| Marking | GS-Zeichen |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 5…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 31 Btu/h |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 4,6 kg |
| VPE 1 Höhe | 15,3 cm |
| VPE 1 Breite | 11,6 cm |
| VPE 1 Länge | 46,5 cm |
| SCC14 | 10731304217036 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 36 USV|12 Batterie |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| Rücknahme | Nein |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BE325-IT_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BE325-IT_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
