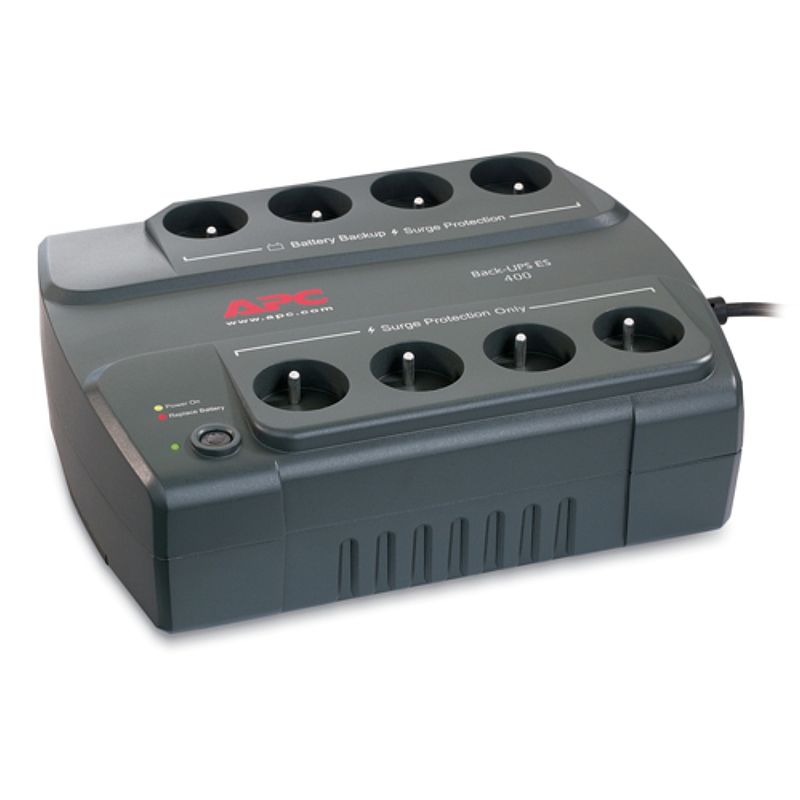

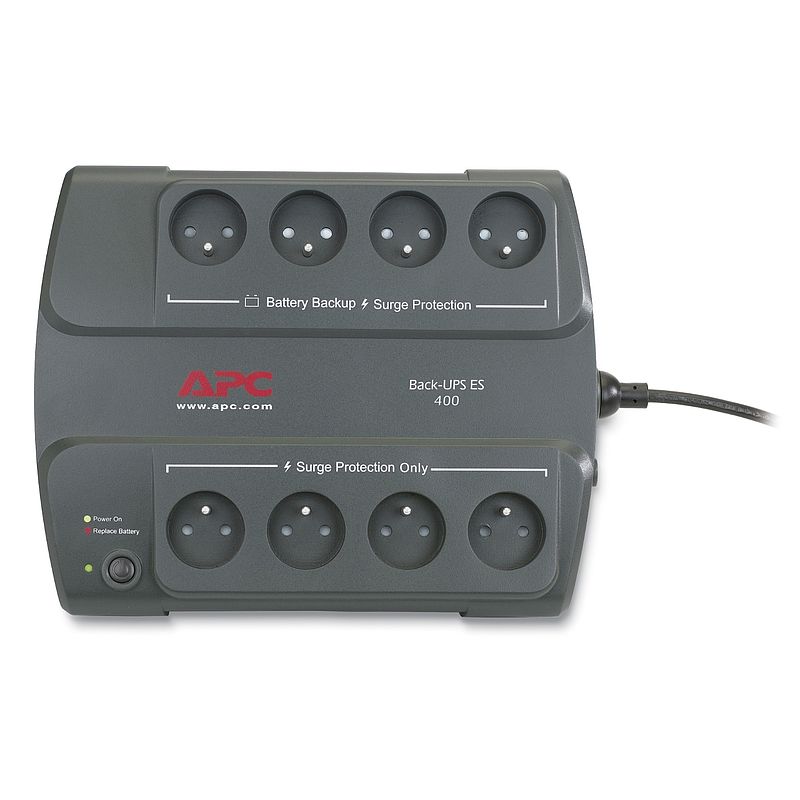

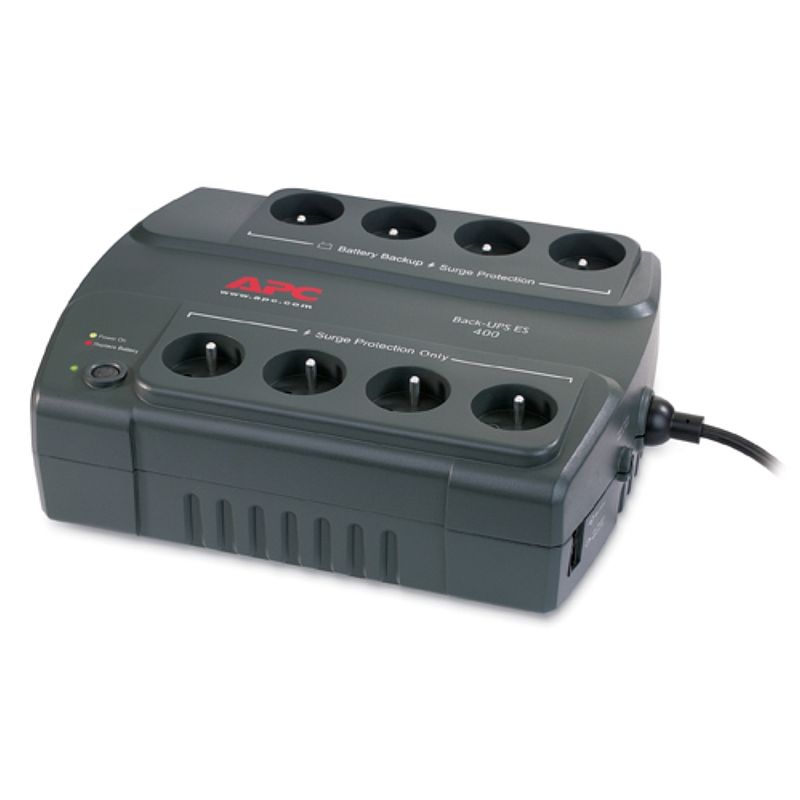

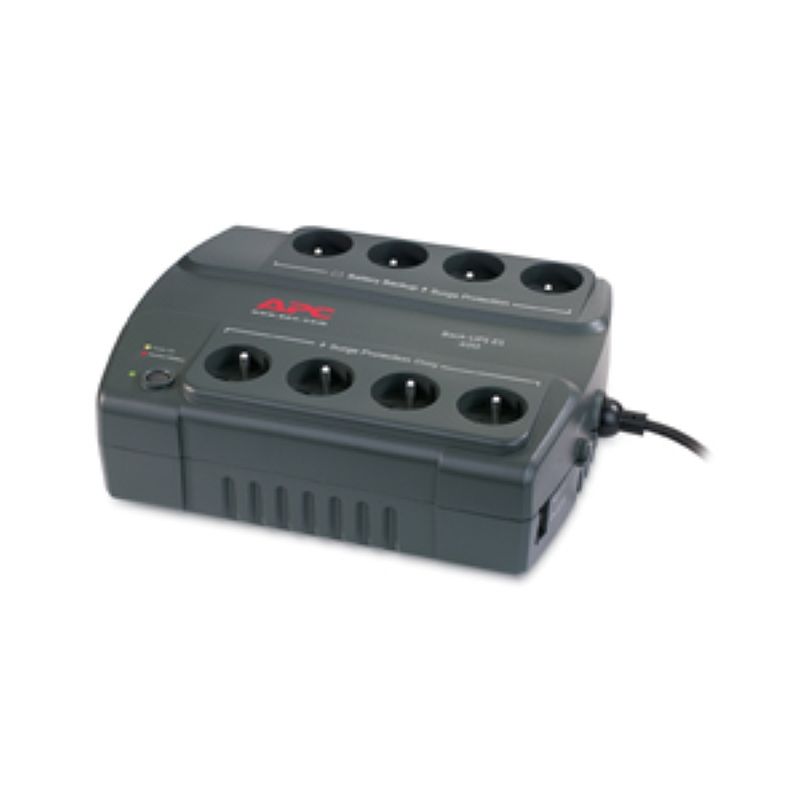

APC Back-UPS 400, 230V, Frankreich, Batterie 12V, 6.0Ah
BE400-FR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Softwares Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Output voltage | 230 V |
| Rated power in W | 240 W |
| Rated power in VA | 400 VA |
| Input connection | Französisch/Belgisch |
| Output connection | 4 Französisch/Belgisch 4 Französisch/Belgisch Spitze |
| Input frequency | 50/60 Hz |
| Plug standard | Französisch/Belgisch |
| Efficiency at full load | 180 - 266 V |
| Maximum input current | 10 A |
| Maximum configurable power in W | 240 W |
| Output frequency | 47 - 63 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | 3:1 |
| UPS topology | Stand-by |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Maximum configurable power in VA | 400 VA |
| Transfer time | 6 ms typisch, 10 ms max. | Zusatzmerkmale |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Provided equipment | Benutzerhandbuch Vorlage für Wandmontage |
| Redundant | No |
| Color | Holzkohle |
| Height | 86 mm |
| Width | 230 mm |
| Depth | 28,5 cm |
| Product weight | 5,4 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Battery capacity | 6,0 AH |
| Control panel | LED Statusanzeige mit On-Line: Batteriebetrieb |
| Surge energy rating | 310 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 5 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Range of product | Back-UPS |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 16 h |
| RBC quantity | 1 |
| Battery voltage | 12 V |
| Battery charging power | 6 W bewertet |
| Battery life | 2…5 Jahre | Montage |
| Product certification | CE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 50.000 ft |
| Ambient air temperature for storage | 0…40 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 30 Btu/h |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 5,6 kg |
| VPE 1 Höhe | 13,2 cm |
| VPE 1 Breite | 30 cm |
| VPE 1 Länge | 36,6 cm |
| SCC14 | 10731304233371 |
| VPE 2 Menge | 2 |
| VPE 2 Gewicht | 12 kg |
| VPE 2 Länge | 60 cm |
| VPE 3 Menge | 80 |
| VPE 2 Art | S04 |
| VPE 2 Höhe | 30 cm |
| VPE 2 Breite | 40 cm |
| VPE 3 Art | PAL |
| VPE 3 Höhe | 140,2 cm |
| VPE 3 Breite | 100 cm |
| VPE 3 Länge | 120 cm |
| VPE 3 Gewicht | 482,4 kg |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | D7202d15-7cd4-470e-bd06-f47695f20bd8 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BE400-FR_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BE400-FR_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
