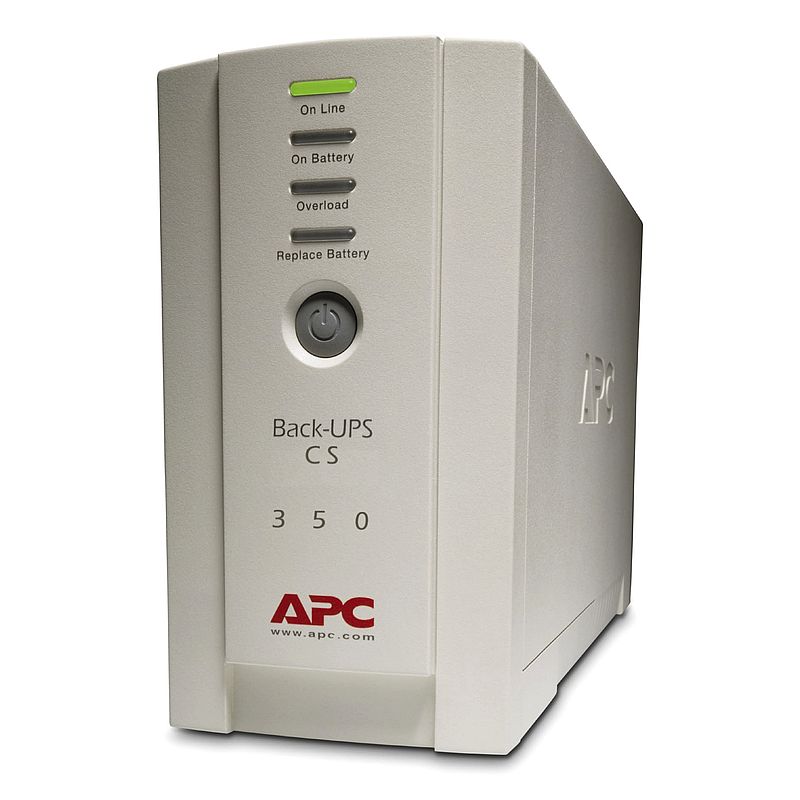

APC Back-UPS 350, 230 V, Batterie 12V, 7.0Ah
BK350EI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Softwares Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 210 W |
| Rated power in VA | 350 VA |
| Input connection | IEC 60320 C14 |
| Output connection | 3 IEC 60320 C13 1 IEC 60320 C13 Spitze 2 IEC-Steckbrücken |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Efficiency at full load | 180 - 266 V |
| Maximum input current | 7 A |
| Switching current capacity | 7 A |
| Maximum configurable power in W | 210 W |
| Output frequency | 47 - 63 Hz Netzsynchronisation 50/60 Hz +/-1 Hz nicht synchronisiert |
| UPS topology | Stand-by |
| Maximum configurable power in VA | 350 VA |
| Transfer time | 6 ms typisch, 10 ms max. |
| USB charging port | None | Zusatzmerkmale |
| Cable length | 1,16 m |
| Number of cables | 2 |
| Provided equipment | CD mit Software Dokumentations-CD Installationshandbuch auf Japanisch Abnehmbares IEC-Netzanschlusskabel Abnehmbares 1,2 m langes IEC-Netzanschlusskabel Telefonkabel USB-Kabel Garantiekarte |
| Redundant | No |
| Color | Beige |
| Height | 165 mm |
| Width | 91 mm |
| Depth | 284 mm |
| Product weight | 6,32 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Battery capacity | 7,0 AH |
| Control panel | LED Statusanzeige mit On-Line: Batteriebetrieb |
| Surge energy rating | 310 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 5 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Control panel | LED-Statusanzeige mit On-Line : auf Batteriebetrieb : Batterie und Überlastungsanzeigen ersetzen |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Back-UPS |
| UPS connectivity | USB port |
| Battery type | Lead-acid internal included |
| Mounting mode | Tower | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 6 h |
| RBC quantity | 1 |
| Battery voltage | 12 V |
| Battery charging power | 14 W bewertet |
| Battery life | 4…6 Jahre |
| Battery graph comment | Dieses Diagramm basiert auf gemessenen Autonomiezeitangaben. Alle Messungen wurden mit neuen, vollständig geladenen Batterien bei ohmscher Ausgangslast (LF = 1,0) durchgeführt. Die tatsächliche Autonomiezeit kann von den Werten in diesem Diagramm abweichen. Die tatsächliche Autonomiezeit ist abhängig von verschiedenen Variablen wie Alter der Batterie, Batterieladezustand, Umgebungsbedingungen und Eigenschaften der angeschlossenen Last | Montage |
| Product certification | RCM CE GOST VDE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Heat dissipation | 19 Btu/h |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 6,435 kg |
| VPE 1 Höhe | 24,000 cm |
| VPE 1 Breite | 19,000 cm |
| VPE 1 Länge | 41,500 cm |
| SCC14 | 10731304016349 |
| VPE 2 Menge | 70 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 2 Art | PAM |
| VPE 2 Höhe | 142,000 cm |
| VPE 2 Breite | 100,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 492,450 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 USV|12 Batterie |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 229 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 61.659 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 62 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.6645599999999999 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.7 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 166.14 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 166 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.58617 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.6 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 229 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BK350EI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BK350EI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 62 |
