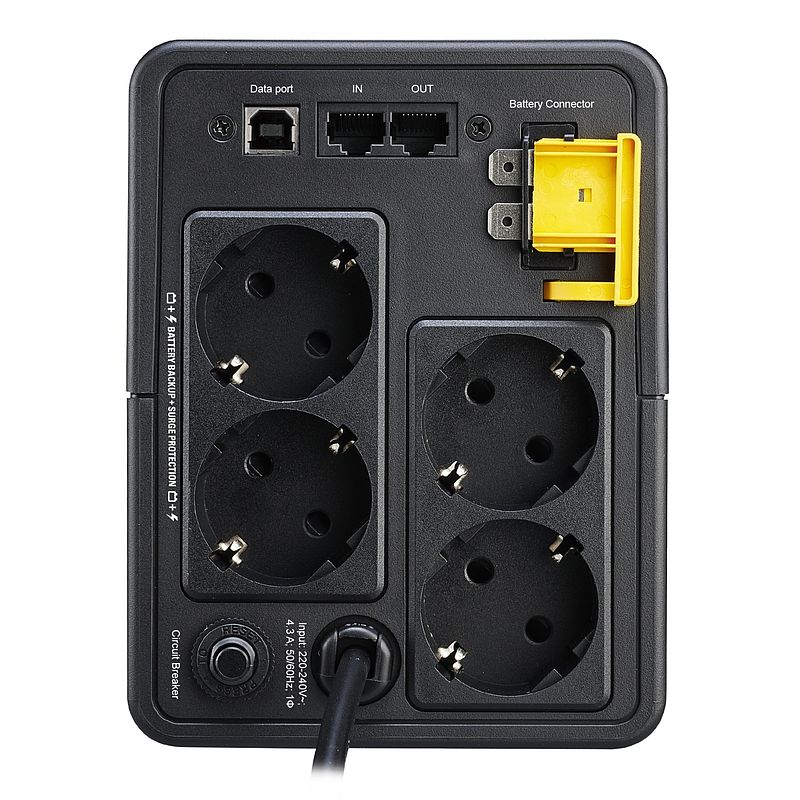

APC Back-UPS 950 VA, 230 V, AVR, 4 Schuko Ausgänge
BX950MI-GR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Softwares
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Rated power in W | 520 W |
| Rated power in VA | 950 VA |
| Output connection | 4 Schuko |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Efficiency at full load | 140 - 300 V |
| Cos phi | 0,54 |
| Maximum configurable power in W | 520 W |
| Output frequency | 50/60 Hz +/-1 Hz Netzsynchronisation |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Full load runtime | 00:01:00 480 W |
| Half load runtime | 00:06:30 240 W |
| Maximum configurable power in VA | 950 VA |
| Transfer time | 6 ms typisch, 10 ms max. |
| Input connection | Schuko CEE 7/7-polig |
| Output voltage | 230 V AC 1 Phase |
| Type of USB power supply | None | Zusatzmerkmale |
| Cable length | 1,2 m |
| Number of cables | 1 |
| Redundant | No |
| Color | Schwarz |
| Height | 160 mm |
| Width | 120 mm |
| Depth | 355 mm |
| Product weight | 6,1 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Battery capacity | 9,0 AH |
| Control panel | LED Statusanzeige mit On-Line: Batteriebetrieb |
| Surge energy rating | 273 J |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Back-UPS |
| UPS connectivity | None |
| Battery type | Lead-acid internal included |
| Mounting mode | Tower | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 8 h |
| Battery voltage | 12 V |
| Battery life | 3…5 Jahre |
| Battery graph comment | Kurve wurde an die gemessenen Autonomiezeiten angepasst. Alle Messungen wurden mit neuen, voll geladenen Batterien unter typischen Umgebungsbedingungen ohne Eingangsleistung und einer ohmschen Ausgangsbelastung (korrigierter Leistungsfaktor von 1,0) vorge | Montage |
| Product certification | CE CB EAC |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 6,6 kg |
| VPE 1 Höhe | 25 cm |
| VPE 1 Breite | 43 cm |
| VPE 1 Länge | 19,7 cm |
| SCC14 | 10731304410857 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Frei von giftigen Schwermetallen | Ja |
Quecksilberfrei
|
Ja |
| SCIP-Nummer | Ec96232c-7000-4722-846e-a372cdfca8dc |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 235 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 63.24 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 63 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.6816 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.7 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 170.4 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 170 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.6012 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.6 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 235 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BX950MI-GR_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BX950MI-GR_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 62 |
