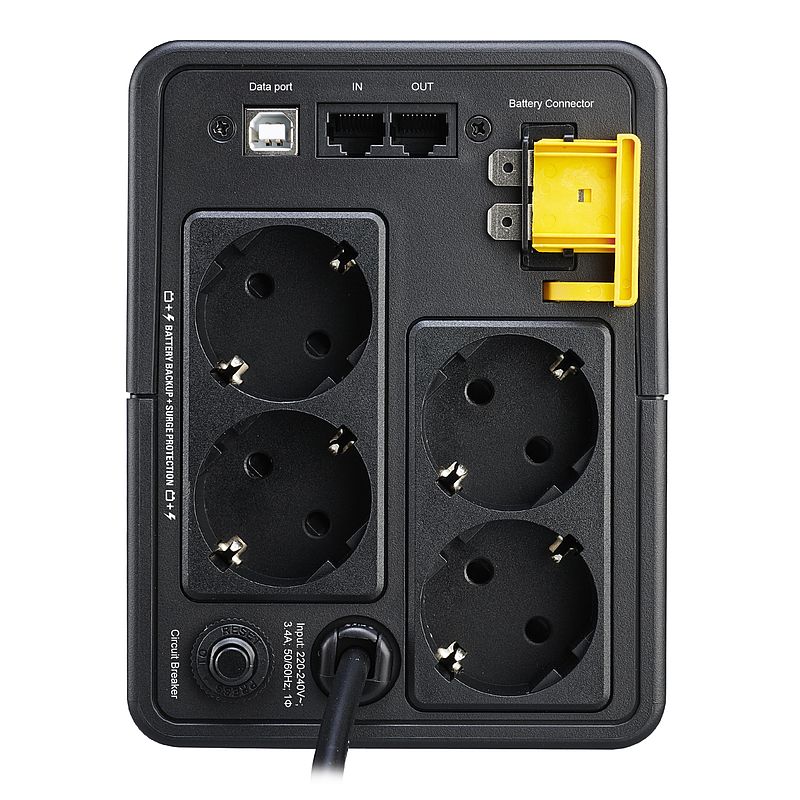

SE Back-UPS, 750VA, Tower, 230V, 4 x CEE 7/3 Schuko Ausgänge, AVR
BXS750MI-GR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Declaration of conformity
|
Download |
|
Promotional video
|
Video anzeigen |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Circularity Profile
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Softwares
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Rated power in W | 410 W |
| Rated power in VA | 750 VA |
| Output connection | 4 Schuko |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Efficiency at full load | 140 - 300 V |
| Cos phi | 0,63 |
| Maximum configurable power in W | 410 W |
| Output frequency | 50/60 Hz +/-1 Hz Netzsynchronisation |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Full load runtime | 00:01:00 390 W |
| Half load runtime | 00:08:30 195 W |
| Maximum configurable power in VA | 750 VA |
| Transfer time | 6 ms typisch, 10 ms max. |
| Output voltage | 230 V AC 1 Phase |
| Type of USB power supply | None | Zusatzmerkmale |
| Cable length | 1,2 m |
| Number of cables | 1 |
| Redundant | No |
| Color | Schwarz |
| Height | 160 mm |
| Width | 120 mm |
| Depth | 355 mm |
| Product weight | 5,4 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Battery capacity | 9,0 AH |
| Control panel | LED Statusanzeige mit On-Line: Batteriebetrieb |
| Surge energy rating | 273 J |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Back-UPS |
| UPS connectivity | None |
| Battery type | Lead-acid internal included |
| Mounting mode | Tower | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 8 h |
| Battery voltage | 12 V |
| Battery design life | 3…5 Jahre |
| Battery life | 3…5 Jahre |
| Battery graph comment | Kurve wurde an die gemessenen Autonomiezeiten angepasst. Alle Messungen wurden mit neuen, voll geladenen Batterien unter typischen Umgebungsbedingungen ohne Eingangsleistung und einer ohmschen Ausgangsbelastung (korrigierter Leistungsfaktor von 1,0) vorge | Montage |
| Product certification | CE CB |
| Standard | EN/IEC 62040-1:2019/A11:2021 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 26,000 cm |
| VPE 1 Breite | 23,000 cm |
| VPE 1 Länge | 45,500 cm |
| Verpackungsgewicht (Lbs) | 7,156 kg |
| VPE 2 Art | P12 |
| VPE 2 Menge | 4 |
| VPE 2 Höhe | 45,000 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 35,199 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 0a99b7ac-fd79-4442-bf8f-912934fcbfb4 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BXS750MI-GR_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BXS750MI-GR_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
