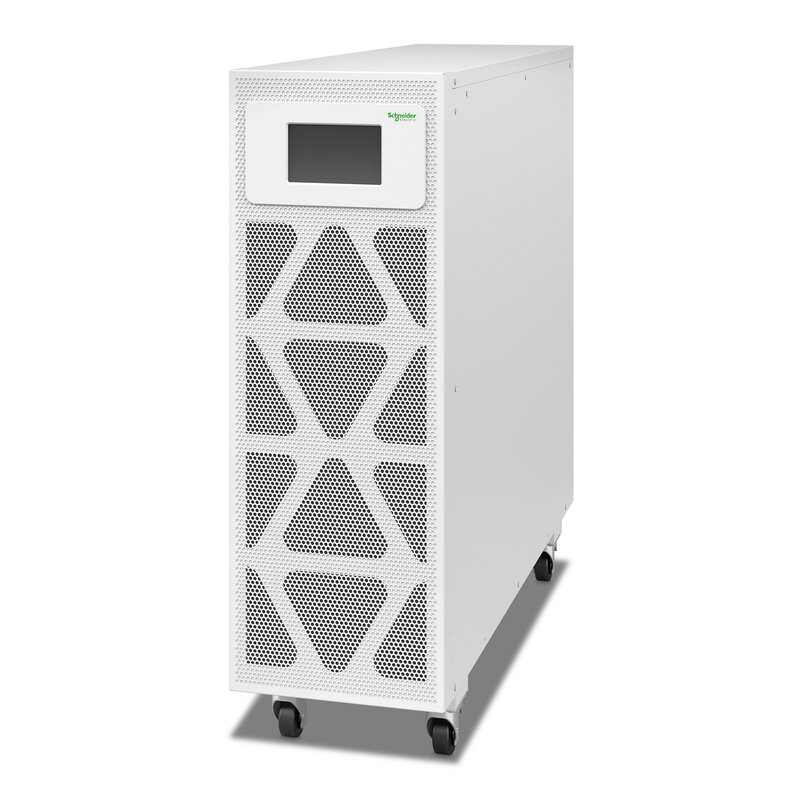

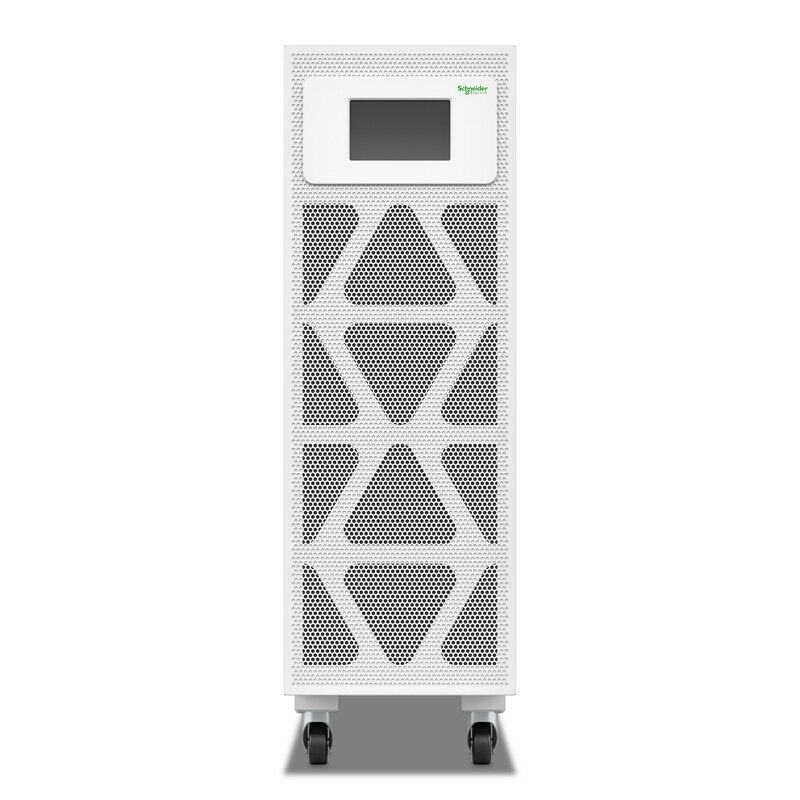

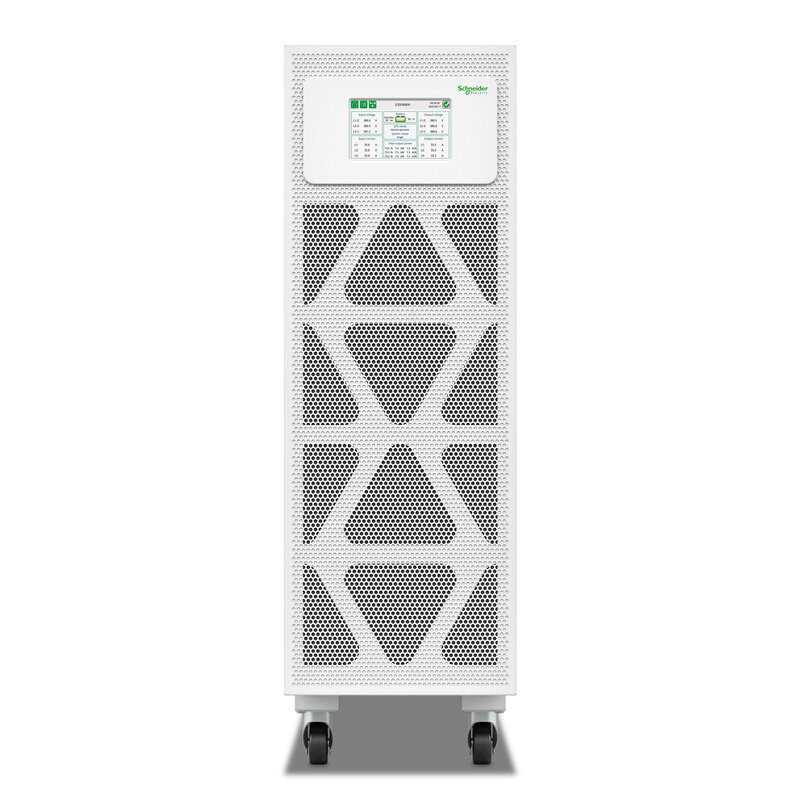

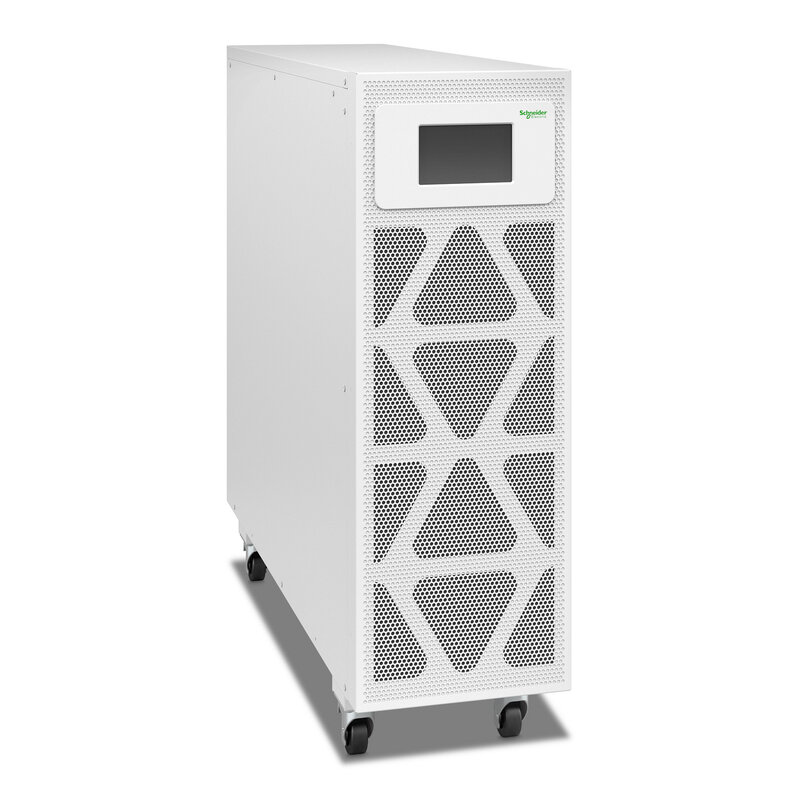

Easy UPS 3S Pro 30 kVA 400 V 3:3 USV für externe Batterien
E3SP30KH
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Brochure
|
Download |
|
Circularity Profile
|
Download |
|
BIM Model
|
Download |
|
Environmental Disclosure
|
Download |
|
User guide
|
Download |
|
Certificate of Origin
|
Download |
|
Declaration of conformity
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC |
| Maximum input current | 46 A |
| Max short time withstand current | 16 kA |
| Input harmonic distortion | Weniger als 3 % bei Volllast |
| Load power factor | Von 0,7 kapazitiv bis 0,7 induktiv ohne leistungsreduzierung |
| Input frequency | 40 - 70 Hz |
| Output voltage | 400 V AC 3 Phasen |
| Rated power in W | 30 kW |
| Rated power in VA | 30 kVA |
| Maximum configurable power in VA | 30 kVA |
| Maximum configurable power in W | 30 kW |
| Output harmonic distortion | < 1% linear load and < 5% non-linear load |
| Output frequency | 50 Hz 60 Hz |
Zusatzmerkmale |
| Battery type | Lead-acid external |
| Control panel | LCD-Benutzeroberfläche mit Touchscreen |
| Color | Weiß |
| Height | 796 mm |
| Width | 250 mm |
| Depth | 916 mm |
| Product weight | 56 kg |
| Provided equipment | Staubfilter Installationshandbuch |
| Redundant | Yes |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) | Montage |
| Product certification | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| IP protection | IP20 |
| Relative humidity | 0…95 % nicht kondensierend |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Acoustic level | 64 dB | Batterien und Überbrückungszeit |
| Battery type | VRLA Li-Ion (Lithium-Ionen) |
Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 98,2 cm |
| VPE 1 Breite | 38 cm |
| VPE 1 Länge | 97 cm |
| Verpackungsgewicht (Lbs) | 69 kg |
Nachhaltigkeit
Nachhaltigkeit
| Recyclingfähigkeitspotential in % | 64 |
| Total lifecycle Carbon footprint | 69 029 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 764.1462378921348 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 764 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 107.81570459211355 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 108 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 16.89206188178315 |
| CO₂-Fußabdruck der Installationsphase [A5] | 17 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 67981.56588777948 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 67 982 kg CO2 eq. |
Quecksilberfrei
|
Ja |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 158.75271844788125 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 159 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 69029 |
| Verpackung mit Recycling-Karton | Ja |
| Verpackung ohne Kunststoff | Nein, wir haben den Einsatz von Kunststoff in der Verpackung gemäß den Vorschriften und unter Berücksichtigung von Qualitäts- und Sicherheitsstandards minimiert |
| SCIP-Nummer | 65871482-995d-4fb8-960b-f71cf07ec0ba |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=E3SP30KH_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=E3SP30KH_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
