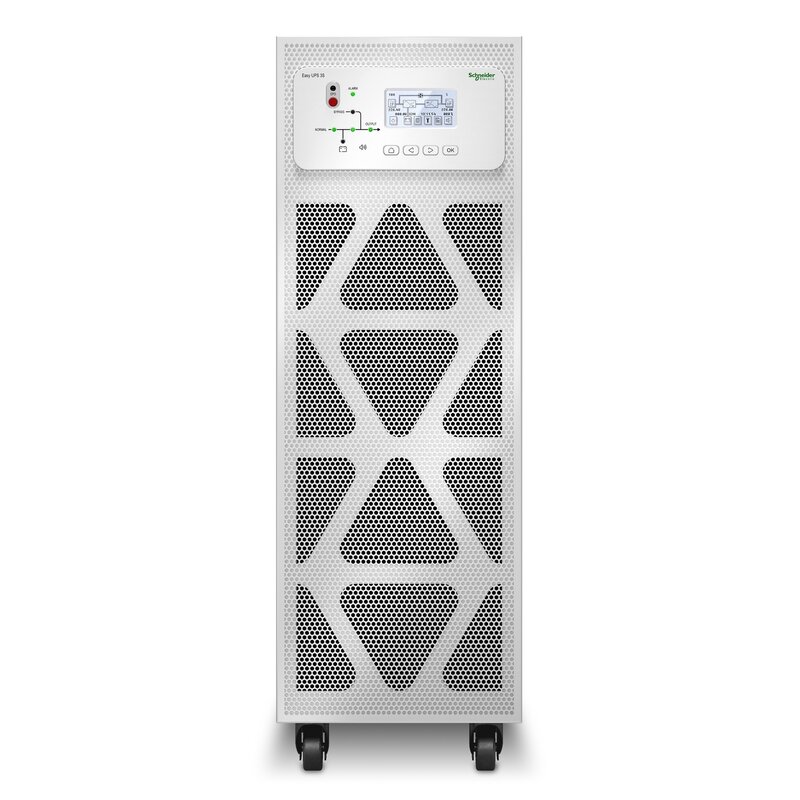

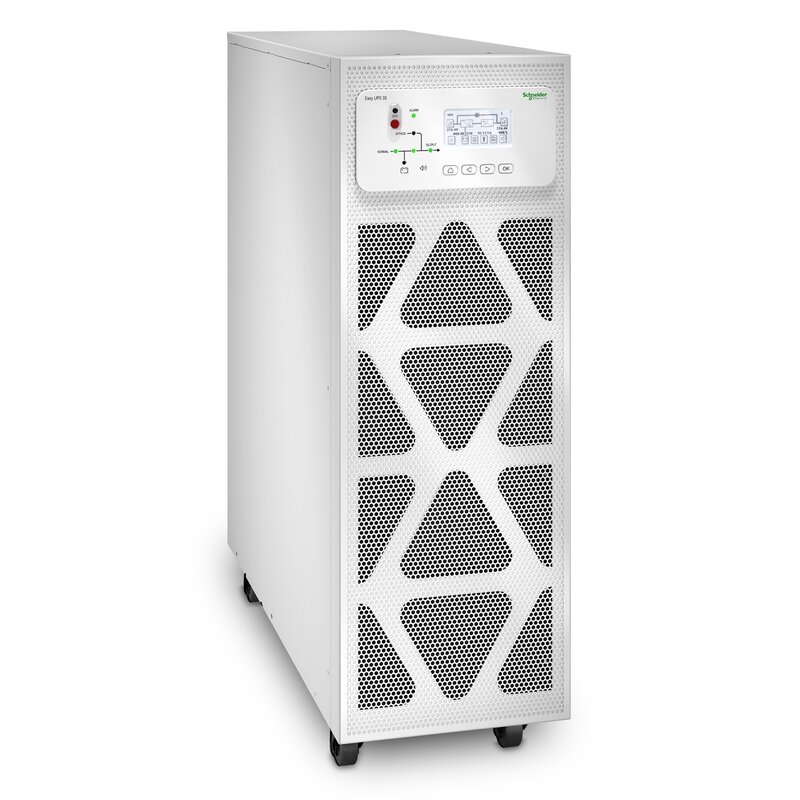

Easy UPS 3S USV, 20 kVA, 400 V, 3:3, für externe Batterien
E3SUPS20KH
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Specification guide
|
Download |
|
Brochure
|
Download |
|
BIM Model
|
Download |
|
Technical Drawing
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Certificate
|
Download |
|
Certificate of Origin
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Handout
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzteil-Kits: Kompatible Produkte
Ersatzteil-Kits (4)
Batterien Kabel: Kompatible Produkte
Kabel (1)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (2)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Hocheffiziente dreiphasige USV mit modernsten Funktionen, herausragenden Spezifikationen und robuster Elektrik – für maximale Geschäftskontinuität im Datacenter oder Technikraum. Diese USV mit 20 kVA lässt sich leicht installieren, bedienen und warten. Sie eignet sich ideal für kleine und mittlere Unternehmen. Das System enthält Staubfilter und speziell beschichtete Leiterplatten für anspruchsvolle Raumbedingungen. Diese USV wird ohne Batterien geliefert und kann mit den entsprechenden Batteriemodulen leicht für jede Anwendung angepasst werden. | Hauptmerkmale |
| Main input voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 380 V 415 V |
| Output voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Other output voltage | 380 V 415 V |
| Rated power in W | 20 kW |
| Rated power in VA | 20 kVA |
| Maximum input current | 37 A |
| Load power factor | 0,9 voreilend bis 0,9 nacheilend |
| Cos phi | 0,99 |
| Efficiency at full load | 304 - 477 V |
| Input frequency | 45 - 65 Hz |
| Maximum configurable power in VA | 20 kVA |
| Maximum configurable power in W | 20 kW |
| Output frequency | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation |
| Harmonic distortion | Weniger als 3 % |
| Output harmonic distortion | < 3% linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| UPS topology | Online-Doppelwandlung |
| Bypass type | Integrierter Wartungsbypass |
| Crest factor | 3:1 | Zusatzmerkmale |
| Provided equipment | Staubfilter Installationsanleitung |
| Color | Weiß (RAL 9003) |
| Height | 77 cm |
| Width | 25 cm |
| Depth | 80 cm |
| Product weight | 58 kg |
| USB compatible | Yes |
| Maximum short-circuit current | 10 kA |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Easy UPS 3S |
| Battery type | Lead-acid external |
| UPS connectivity | Optional network management card 3 | Montage |
| Product certification | CE EAC RCM |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.281 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…14999,8 m |
| Acoustic level | 60 dBA |
| Heat dissipation | 900 W |
| IP protection | IP20 | Batterien und Überbrückungszeit |
| Battery type | Externes Batteriesystem | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 75 kg |
| VPE 1 Höhe | 101,5 cm |
| VPE 1 Breite | 98,2 cm |
| VPE 1 Länge | 40 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | Dc6af940-cee3-4c52-a4a7-fc487db91a72 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 24810 |
| Total lifecycle Carbon footprint | 24 810 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 723.294846839315 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 723 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 14.615007579451149 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 15 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 14.587553376171597 |
| CO₂-Fußabdruck der Installationsphase [A5] | 15 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 23888.31380357496 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 23 888 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 169.29664007600257 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 169 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Recyclingfähigkeitspotential in % | 82 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=E3SUPS20KH_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=E3SUPS20KH_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
