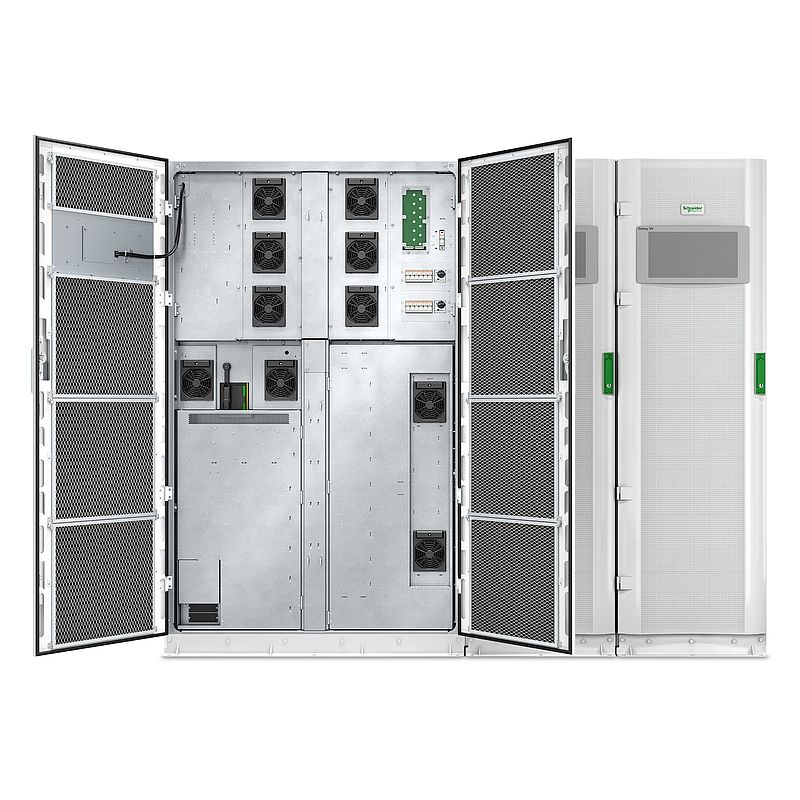

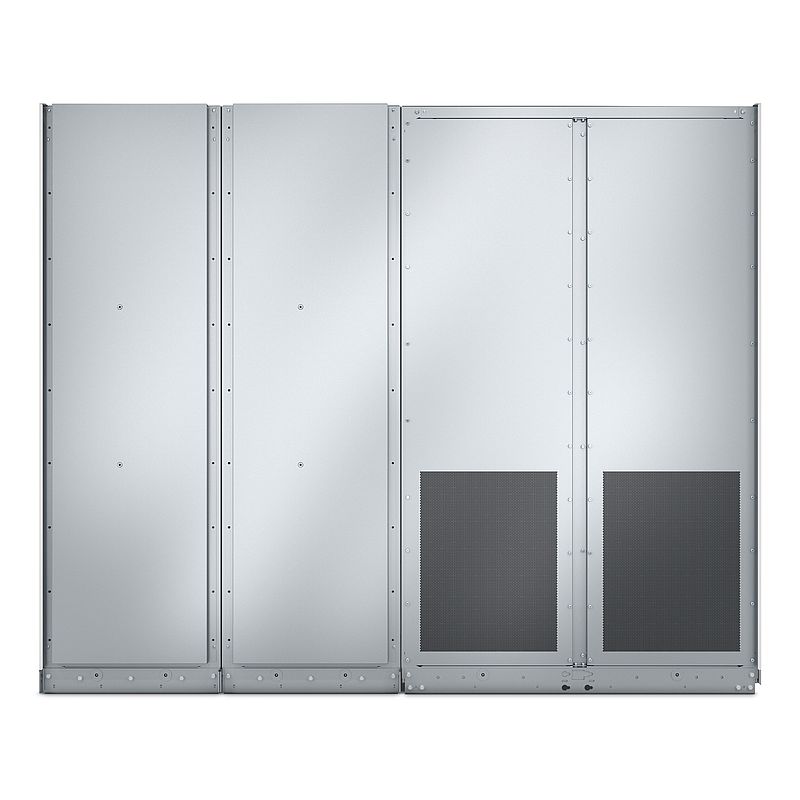

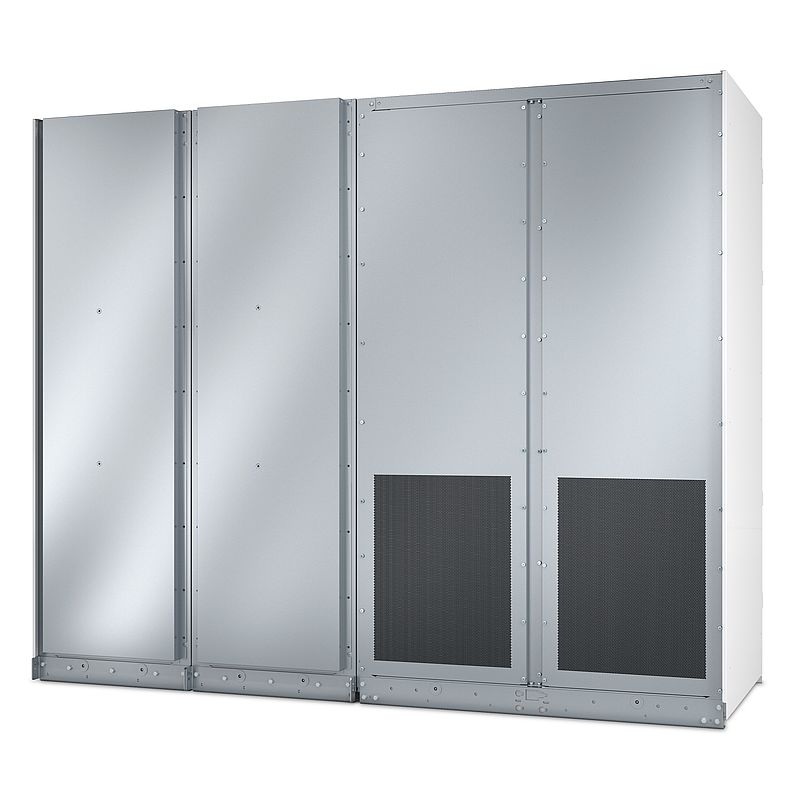

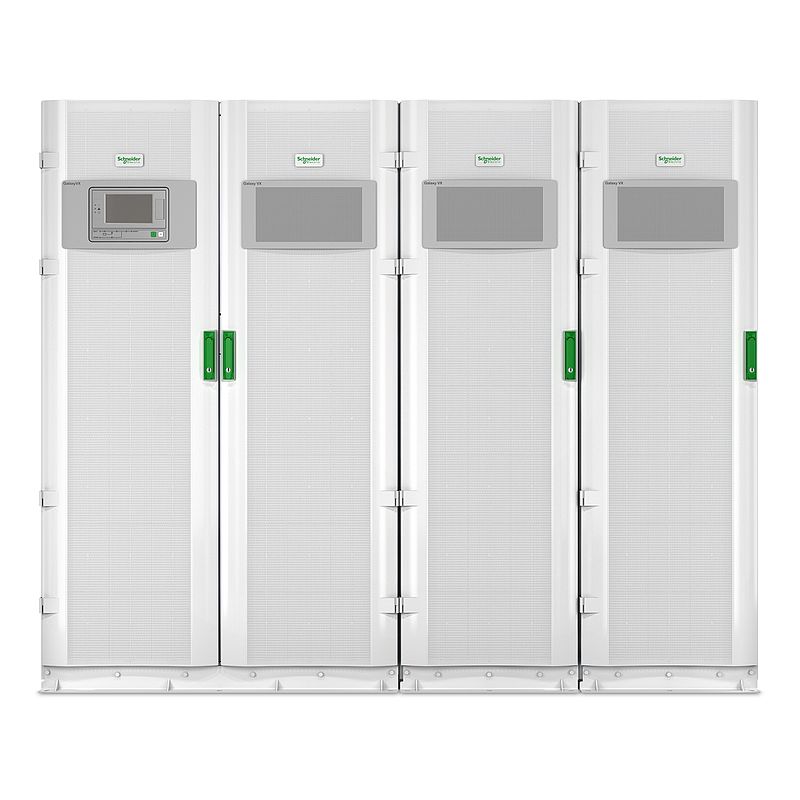

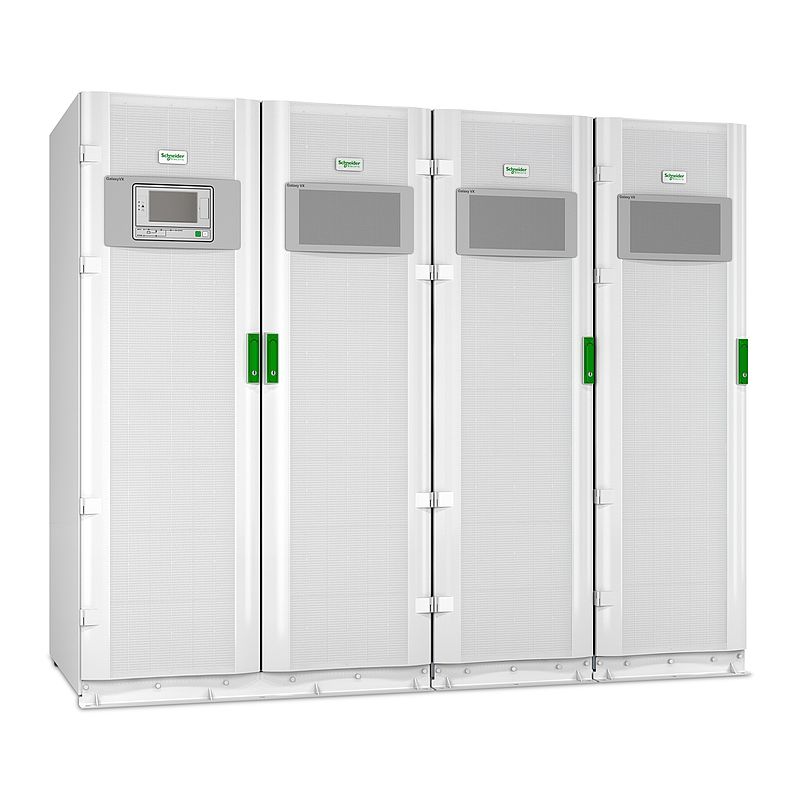

Galaxy VX, 500 kVA, skalierbar auf 1250 kVA, 400 V, Start-up-Service 5 x 8
GVX500K1250NHS
Hauptdokumente
Download | |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Video anzeigen |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte

Leistungsmodule: Kompatible Produkte

: Kompatible Produkte

: Kompatible Produkte

: Kompatible Produkte

: Kompatible Produkte

: Kompatible Produkte

: Kompatible Produkte

Spezifikationen
Übersicht | |
---|---|
Ausführung | A highly efficient, modular, 500 kVA scalable to 1250 kVA 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure Ready UPS features up to 99% efficiency with patented ECOnversion technology. Includes 5x8 start-up service. |
Lieferzeit | Sonderbestellung - Lieferzeit auf Anfrage | Hauptmerkmale |
Haupteingangsspannung | 400 V 3 Phasen |
Weitere Eingangsspannung | 380 V 415 V 440 V |
Hauptausgangsspannung | 400 V3 Phasen |
Weitere Ausgangsspannung | 380 V 415 V 440 V |
Bemessungsleistung in W | 500 kW |
Nennleistung in VA | 500 kVA |
Batterietyp | Externes Batteriesystem |
Geliefertes Zubehör | Installationsanleitung Inbetriebnahme-Service |
Baureihe | Galaxy VX |
Kompatible Produktfamilie | Galaxy VX | Allgemein |
Redundant | No |
Produkt- oder Komponententyp | Unterbrechungsfreie Stromversorgung (USV) | Abmessungen |
Farbe | Weiß |
Höhe | 197 cm |
Breite | 240 cm |
Tiefe | 90 cm |
Produktgewicht | 2030 kg |
USB-kompatibel | No | Eingang |
Netzwerkfrequenz | 40 - 70 Hz |
Anzahl der Eingangsanschlüsse | 1 fest verdrahtet 4-adrig (3P + E) |
Max. Eingangsstrom | 841 A |
Max. Kurzschlussfestigket (Icw) | 100 kA |
Oberschwingungsverzerrung am Eingang | Weniger als 3 % bei Volllast |
Leistungsfaktor der Last | Von 0,7 kapazitiv bis 0,5 induktiv ohne leistungsreduzierung |
Eingangsleistungsfaktor bei Volllast | 1 | Ausgang |
Max. konfigurierbare Leistung in W | 1250 kW |
Ausgangsfrequenz | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
Scheitelfaktor | 3 mit THC < 5 % |
Wellentyp | Sinuswelle |
Oberschwingungsverzerrung am Ausgang | < 2% linear load and < 3% non-linear load |
Überlastbetrieb des Ausgangs | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
Max. konfigurierbare Leistung in VA | 1250 kVA | Konformität |
Produktzertifizierungen | C-Tick CE |
Normen | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 IBC 2012 IEC 62040-4 ISTA 2B |
Umgebung |
Umgebungstemperatur bei Betrieb | 0…40 °C |
Relative Luftfeuchtigkeit | 0…95 % nicht kondensierend |
Betriebshöhe | 0 - 3.333 ft |
Umgebungstemperatur bei Lagerung | -15…40 °C |
Relative Feuchtigkeit bei Lagerung | 0…95 % nicht kondensierend |
Aufbewahrungshöhe | 0…15240 m |
Geräuschpegel | 69.5 dBA |
Wärmeabgabe | 80387 Btu/h |
Schutzart (IP) | IP20 | Batterien und Überbrückungszeit |
Batteriespannung | 480 V |
Batteriespannung entladen | 384 V DC |
Batterieleistung in VAh | 0 VAh Laufzeit | Kommunikation & Management |
freie Steckplätze | 2 |
Bedienfeld | 7" touch screen display | Verpackungseinheiten |
VPE 1 Gewicht | 3737 kg |
VPE 1 Höhe | 215 cm |
VPE 1 Breite | 106 cm |
VPE 1 Länge | 516 cm |
VPE 1 Art | PCE |
VPE 1 Menge | 1 | Vertragliche Gewährleistung |
Gewährleistung | Ein Jahr Vor-Ort-Reparatur oder Austausch mit werkseitig autorisierter Inbetriebnahme |
Nachhaltigkeit
Environmental data
EU-RoHS-Richtlinie
|
Konform mit Ausnahme EU-RoHS-Deklaration |
WEEE | Das Symbol der durchgestrichenen Mülltonne weist darauf hin, dass Elektro- bzw. Elektronik(alt)geräte nicht im Hausmüll entsorgt werden dürfen, sondern vom Besitzer einer getrennten Sammlung für Elektro- und Elektronikaltgeräte zugeführt werden müssen. |
Verpackung ohne Kunststoff | Nein |
Verpackung mit Recycling-Karton | Ja |
Rücknahme | No |
Eingesparte und vermiedene Produktbeiträge | Yes |
CO2-Bilanz (kg CO2 eq.) | 638403 |
Global warming ; Total life cycle | 638 ton CO2 eq. |
