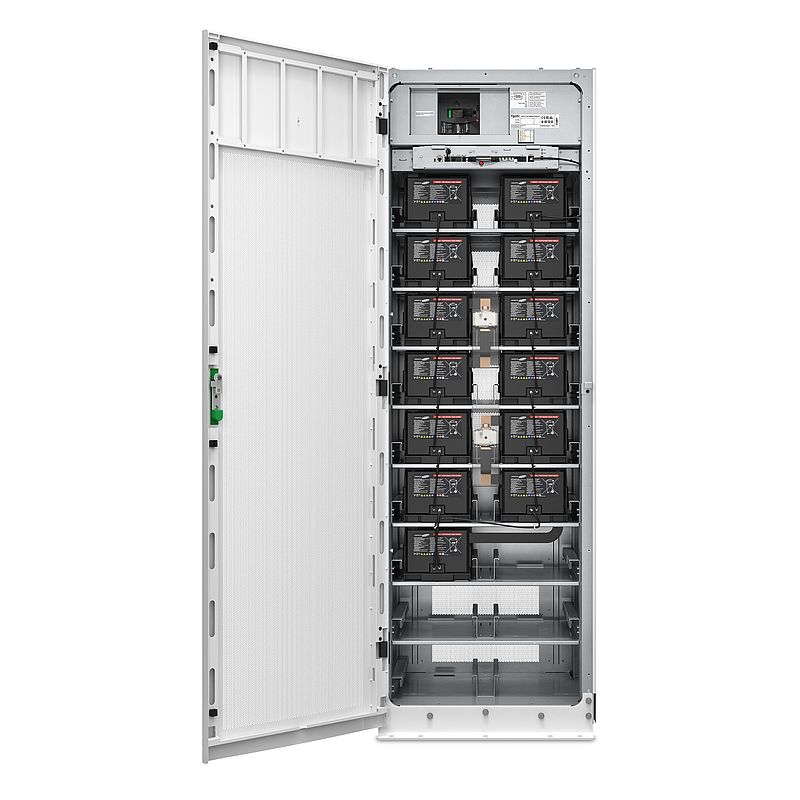

Galaxy Lithium-Ionen-Batterieschrank IEC mit 13 x 2,04 kWh Batteriemodulen
LIBSESMG13IEC
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Brochure
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Battery cabinet that includes Lithium-ion batteries, Battery Management System (BMS), switchgear, power supply, and communication interface. |
| Lieferzeit | Sonderbestellung - Lieferzeit auf Anfrage | Hauptmerkmale |
| Batterietyp | Li-Ion (Lithium-Ionen) |
| Geliefertes Zubehör | Installationsanleitung |
| Produkt- oder Komponententyp | Battery cabinet | Abmessungen |
| Farbe | Weiß |
| Höhe | 197 cm |
| Breite | 65 cm |
| Tiefe | 58,7 cm |
| Produktgewicht | 415 kg |
| Oberflächenbeschaffenheit | Pulverbeschichtet | Ausgang |
| Batteriekapazität | 67 AH | Konformität |
| Normen | UL 9540A | Umgebung |
| Umgebungstemperatur bei Betrieb | 18…28 °C |
| Betriebshöhe | 0 - 3.000 m |
| Umgebungstemperatur bei Lagerung | 0…40 °C | Batterien und Überbrückungszeit |
| Akkuhersteller | Samsung |
| Gehäusevariante | Geschlossener Batterieschrank |
| Battery location | Batteriegehäuse | Verpackungseinheiten |
| VPE 1 Gewicht | 432 kg |
| VPE 1 Höhe | 2150 mm |
| VPE 1 Breite | 800 mm |
| VPE 1 Länge | 1200 mm |
| VPE 3 Breite | 80 cm |
| VPE 3 Länge | 120 cm |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 | Vertragliche Gewährleistung |
| Gewährleistung | 3 years repair or replace |
Nachhaltigkeit
Environmental data
EU-RoHS-Richtlinie
|
Konform mit Ausnahme EU-RoHS-Deklaration |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | No |
| Austauschbare Batterie | User replaceable |
| CO2-Bilanz (kg CO2 eq.) | 11570 |
| Global warming ; Total life cycle | 11 570 kg CO2 eq. |
18 Dokumente
| LIBSESMG13IEC REACh-Erklärung
24/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| LIBSESMG13IEC EU-RoHS-Erklärung
24/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| LIBSESMG13IEC China-RoHS-Erklärung
24/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Galaxy Lithium-ion Battery Cabinet EU Declaration of Conformity 17/03/25 · Declaration of conformity | 5,1 MB | Download |
| Galaxy Lithium-ion Battery Cabinet 15/03/25 · Environmental Disclosure | 0,5 MB | Download |
| Galaxy Lithium-ion Battery Cabinet 15/03/25 · Circularity Profile | 0,3 MB | Download |
| Galaxy Lithium-ion Battery Cabinet UK Declaration of Conformity 15/03/25 · Declaration of conformity | 0,3 MB | Download |
| Armoire batterie lithium-ion Galaxy Avec 13, 16 ou 17 modules de batteries Installation et utilisation 15/03/25 · User guide | 10,8 MB | Download |
| Galaxy Lithium-ion Certificate of Origin 15/03/25 · Certificate | 0,1 MB | Download |
| Office of Statewide Health Planning and Development (OSHPD) Preapproval OSP-0698_Galaxy Lithium-ion Battery Cabinets
15/03/25 · Certificate |
2,5 MB | Download |
| Galaxy Lithium-ion Battery Cabinet Receiving and Unpacking
15/03/25 · User guide |
0,5 MB | Download |
| Galaxy Lithium-ion Battery Cabinet Installation and Operation Manual 15/03/25 · User guide | 10,8 MB | Download |
| Galaxy Batterieschrank für Lithium-Ionen- Batterien Mit 13, 16 oder 17 Batteriemodulen Installation und Betrieb 15/03/25 · User guide | 10,1 MB | Download |
| BIM_LIBSESMGXXIEC_EN
15/03/25 · BIM Model |
0,7 MB | Download |
| Galaxy Lithium-ion Battery Cabinet Brochure
15/03/25 · Brochure |
2,0 MB | Download |
| Galaxy VS UPS for External Batteries Technical Specifications 20-150 kW 400/440 V
15/03/25 · Specification guide |
1,8 MB | Download |
| LIBSESMGGVSIEC
15/03/25 · Technical Drawing |
1,8 MB | Download |
| LIBSESMGMWIEC-Galaxy_Li-ion_Battery_Cabinet_MW_IEC
15/03/25 · Technical Drawing |
1,3 MB | Download |
