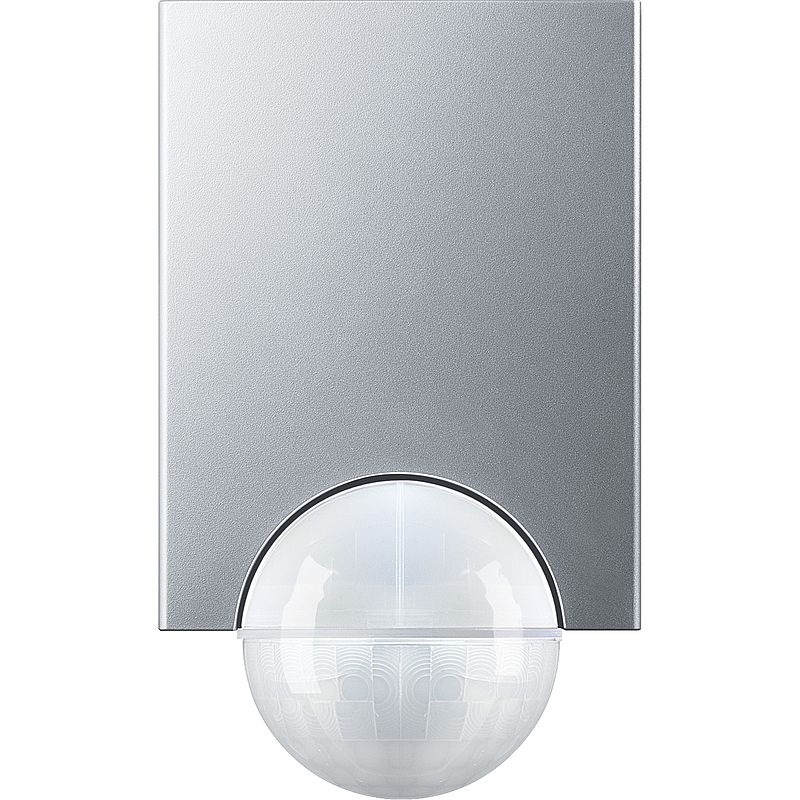

KNX ARGUS 220, Aluminium, Aluminium
MTN632569
Materialpreisgruppe
: G2
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
Certificate
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Technical illustration
|
Download |
|
Instruction sheet
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Softwares: Kompatible Produkte
Softwares (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | KNX |
| Produkt- oder Komponententyp | Bewegungsmelder |
| Bustyp | KNX |
| Farbton | Aluminium | Zusatzmerkmale |
| Anzahl der Kanäle | 5 20 |
| Schutzart | Unterkriechschutz |
| Art der Einstellung | Lichtempfindlichkeit einstellbar |
| Einschaltdauer | 9.144 Minuten |
| Zeitverzögerungsbereich | 0 - 1 s (Einschalten) |
| Erfassungsfläche | Seitlich: 16 m |
| Bewegungserkennungsbereich | 24 m |
| Horizontaler Erkennungswinkel | 0…220 ° |
| Gehäusevariante | Oberfläche |
| Montagehöhe | 2,5 m | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 354,000 g |
| VPE 1 Höhe | 10,200 cm |
| VPE 1 Breite | 14,300 cm |
| VPE 1 Länge | 18,100 cm |
| VPE 2 Art | CAR |
| VPE 2 Menge | 6 |
| VPE 2 Gewicht | 2,504 kg |
| VPE 2 Höhe | 19,900 cm |
| VPE 2 Breite | 30,300 cm |
| VPE 2 Länge | 40,400 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 11 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 10.776520661157026 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 11 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.05662537190082645 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.1 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.16744419421487602 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.2 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.21164299586776858 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.2 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 11 |
| Recyclingfähigkeitspotential in % | 2 |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=MTN632569_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=MTN632569_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
24 Dokumente
| SpaceLogic KNX, PIR, wiring diagram (en) 15/09/25 · Technical illustration | 0,0 MB | Download |
| SpaceLogic KNX CAD Library-2D DWG
04/04/25 · CAD |
15,7 MB | Download |
| MTN632569 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| ARGUS Montagehalterung-Installationsanleitung
15/03/25 · Instruction sheet |
1,5 MB | Download |
| DoC for movement sensors 15/03/25 · Declaration of conformity | 0,8 MB | Download |
| KNX Catalogue 05-2024
15/03/25 · Catalog |
84,5 MB | Download |
| KNX ARGUS 220-Description du logiciel ETS (fr) 15/03/25 · User guide | 0,5 MB | Download |
| KNX- ARGUS 220 Movement Detector-ETS Software Description (EN) 15/03/25 · User guide | 0,5 MB | Download |
| KNX- ARGUS 220 Detetor de movimento-Instruções de utilização (PT) 15/03/25 · User guide | 3,5 MB | Download |
| KNX Certificate 15/03/25 · Certificate | 0,1 MB | Download |
| KNX- ARGUS 220 Movement Detector-Operating instructions (EN) 15/03/25 · User guide | 2,0 MB | Download |
| KNX- ARGUS 220 Bewegungsmelder-Gebrauchsanweisung (DE) 15/03/25 · User guide | 3,9 MB | Download |
| dshe_KNX ARGUS 220, aluminium
15/03/25 · Other technical guide |
0,1 MB | Download |
| MTN6325xx-00 Software ETS4-ETS5.x (knxprod) 15/03/25 · Software - Data Library | 0,8 MB | Download |
| MTN6325xx-00 Software ETS3d-ETS5.x (Vdx) 15/03/25 · Software - Data Library | 6,9 MB | Download |
| KNX Schneider Electric BIM data (Building Information Modeling)
15/03/25 · BIM Model |
67,4 MB | Download |
| UK Declaration of Conformity 15/03/25 · Declaration of conformity | 0,5 MB | Download |
| EU declaration of conformity 15/03/25 · Declaration of conformity | 0,2 MB | Download |
| KNX ARGUS 220-ETS-Software-Beschreibung (de) 15/02/25 · User guide | 0,4 MB | Download |
| KNX- ARGUS 220 Détecteur de mouvements-Mode d'emploi (FR) 15/02/25 · User guide | 1,1 MB | Download |
| KNX ARGUS 220-Descripción del software ETS (es) 15/11/24 · User guide | 0,5 MB | Download |
| MTN632569 REACh-Erklärung
26/10/24 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 Circularity Profile | 0,0 MB | Download |
