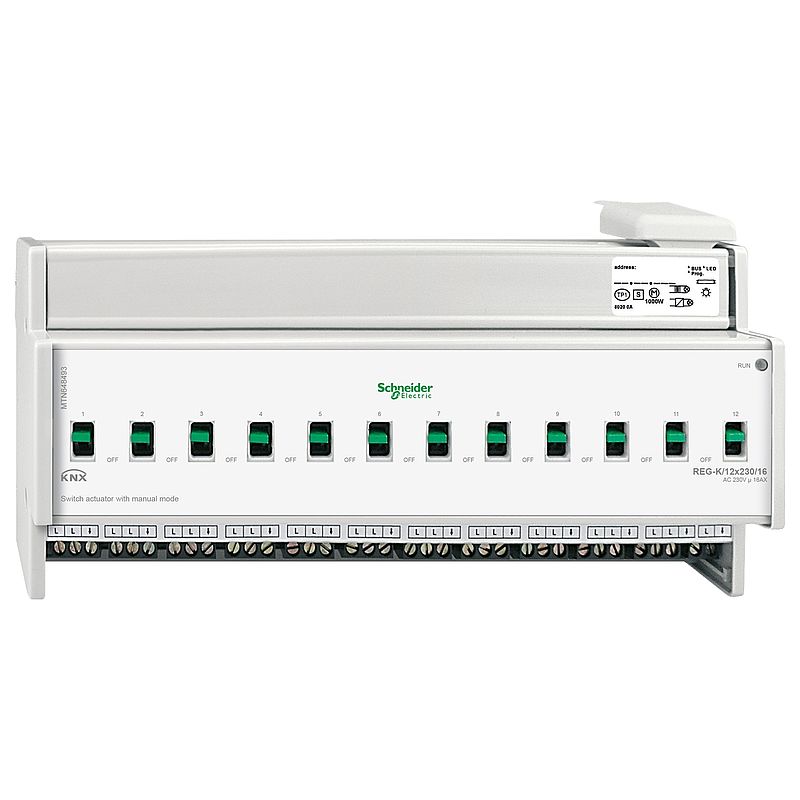

Schaltaktor REG-K/12x230/16 mit Handbetätigung, lichtgrau
MTN648493
Farbton: Hellgrau
Materialpreisgruppe
: G2
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Softwares: Kompatible Produkte
Softwares (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | KNX |
| Produkt- oder Komponententyp | Schaltaktor |
| Betriebsmodus | Manuell |
| Bustyp | KNX |
| Zusatzinfo Modulargerät | Anschließbar mit verschiedenen Phasen |
| Anzahl der Kontakte | 12 |
| Schaltstrom | 16 A |
| Farbton | Hellgrau |
| Stromversorgungs-Eingangsstrom | 10 mA | Zusatzmerkmale |
| Gesamtzahl der 18-mm-Module | 12 |
| Montagehalterung | DIN-Schiene |
| [Ue] Bemessungs-Betriebsspannung | 230 V |
| Netzwerkfrequenz | 50 - 60 Hz |
| [In] Bemessungsstrom | 16 A |
| Lasttyp | Glühlampen: <= 3.600 W, 230 V AC Halogenlampen: <= 2.500 W, 230 V AC Kapazitiv: , 16 A, 200 µF, 230 V AC Leuchtstofflampen: <= 2.500 VA, 230 V AC |
| Gehäusevariante | DIN-Schiene |
| Gerätedarstellung | Vollständiges Produkt |
| Hauptfarbton | Hellgrau | Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 890,000 g |
| VPE 1 Höhe | 8,000 cm |
| VPE 1 Breite | 12,300 cm |
| VPE 1 Länge | 28,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 6 |
| VPE 2 Gewicht | 5,800 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 21 |
| Total lifecycle Carbon footprint | 21 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 8.588637516848548 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 9 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 1.5693914157980016 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 2 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.27141306110367003 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.3 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 8.105474318908046 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 8 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 2.0487905249495775 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 2 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=MTN648493_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Halogenfreies Produkt |
| PVC-frei | Ja |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=MTN648493_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
