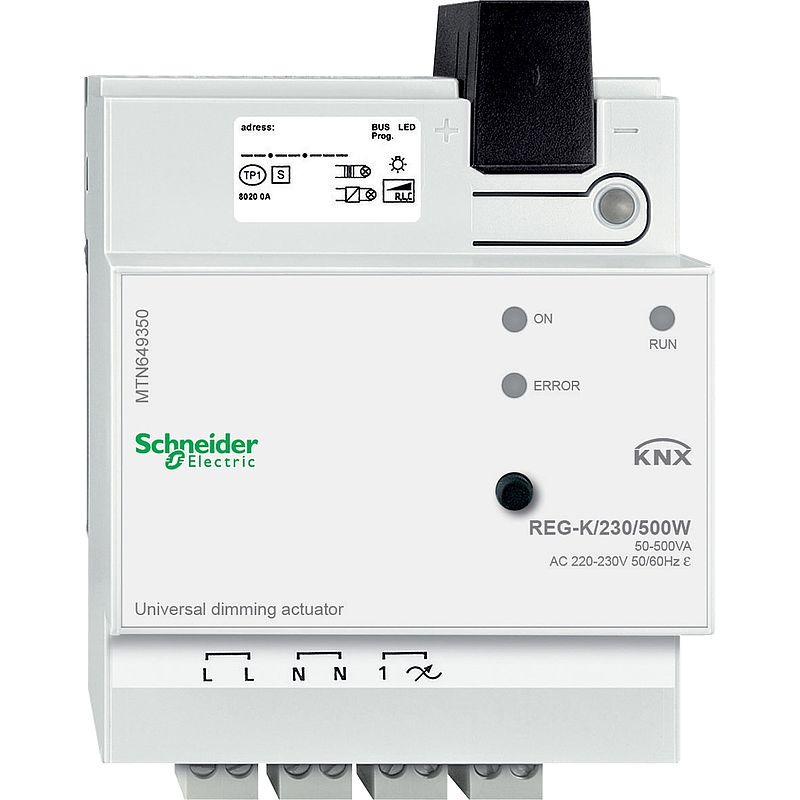

Universal-Dimmaktor REG-K/230/500 W, lichtgrau
MTN649350
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of conformity
|
Download |
|
Brochure
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
CAD
|
Download |
|
Certificate
|
Download |
|
Instruction sheet
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Softwares: Kompatible Produkte
Softwares (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produkt- oder Komponententyp | Dimmaktor |
| Betriebsmodus | KNX Bussystem Manuell |
| Bustyp | KNX | Zusatzmerkmale |
| Gesamtzahl 18-mm-TE | 4 |
| Montagehalterung | DIN-Schiene |
| [Ue] Bemessungs-Betriebsspannung | 220 - 230 V |
| Netzwerkfrequenz | 50 - 60 Hz |
| Eingangstyp | 1 x Drucktaster: 230 V AC 1 x elektronischer Drucktaster: 230 V AC |
| Anzahl der Ausgänge | 1 |
| Lokale Signalisierung | LED |
| Lasttyp | Glühlampen: 30 - 500 W bei 230 V AC Halogenlampen: 30 - 500 W bei 230 V AC NS Halogenlampen: 50 - 500 VA (gewickelter Transformator) NS Halogenlampen: 50 - 500 W (elektronischer Transformator) |
Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 273 g |
| VPE 1 Höhe | 8 cm |
| VPE 1 Breite | 12,4 cm |
| VPE 1 Länge | 15,8 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 10 |
| VPE 2 Gewicht | 3,06 kg |
| VPE 2 Höhe | 30 cm |
| VPE 2 Breite | 30 cm |
| VPE 2 Länge | 40 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=MTN649350_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Verpackung mit Recycling-Karton | Ja |
20 Dokumente
| MTN649350 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| SpaceLogic KNX, Dimming Master and Extension - Product Environmental Profile
15/03/25 · Environmental Disclosure |
0,4 MB | Download |
| SpaceLogic KNX, Dimming Master and Extension - Product End of life Instructions
15/03/25 · Circularity Profile |
0,4 MB | Download |
| EU-megfelelőségi nyilatkozat 15/03/25 · Declaration of conformity | 0,0 MB | Download |
| KNX MTN649350 Dimension/Wiring/Symbol -2D CAD Drawing
15/03/25 · CAD |
0,2 MB | Download |
| KNX- Atuador de regulação da iluminação universal REG-K-Instruções de utilização (PT) 15/03/25 · User guide | 1,1 MB | Download |
| KNX- Universal Dimming Actuator REG-K-Operating instructions (EN) 15/03/25 · User guide | 0,4 MB | Download |
| KNX- Universal-Dimmaktor REG-K-Gebrauchsanweisung (DE) 15/03/25 · User guide | 1,0 MB | Download |
| KNX- Universal-Dimmaktor REG-K-Gebrauchsanweisung (DE) 15/03/25 · User guide | 0,5 MB | Download |
| KNX- Universal Dimming Actuator-ETS Software Description (EN) 15/03/25 · User guide | 1,7 MB | Download |
| KNX Universal dimming actuator REG-K/230/500 W, light grey-Technical leaflet
15/03/25 · Other technical guide |
0,1 MB | Download |
| MTN649350-00 Software ETS4-ETS5.x (knxprod) 15/03/25 · Software - Data Library | 0,2 MB | Download |
| KNX Schneider Electric BIM data (Building Information Modeling)
15/03/25 · BIM Model |
67,4 MB | Download |
| KNX Dimmer Promo Flyer 15/03/25 · Brochure | 0,5 MB | Download |
| Universal dimming actuator REG-K 15/02/25 · Instruction sheet | 0,5 MB | Download |
| KNX- Actionneur de variation universel REG-K-Mode d'emploi (FR) 15/02/25 · User guide | 0,4 MB | Download |
| EU declaration of conformity 15/12/24 · Declaration of conformity | 0,2 MB | Download |
| MTN649350-00 Software ETS3d-ETS5.x (Vdx) 15/11/24 · Software - Data Library | 0,8 MB | Download |
| KNX Certificate 17/09/24 · Certificate | 0,1 MB | Download |
| KNX- Actionneur de variation universel REG-K-Mode d'emploi (FR) 12/09/24 · User guide | 0,4 MB | Download |
