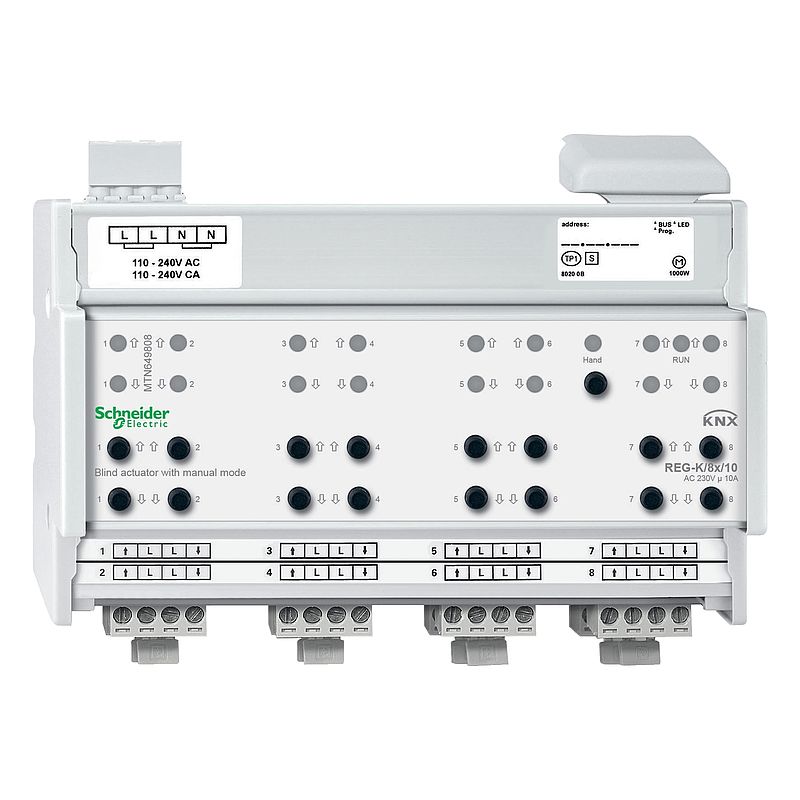

Jalousieaktor REG-K/8x/10 mit Handbetätigung, lichtgrau
MTN649808
Farbton: Hellgrau
Materialpreisgruppe
: G2
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Softwares: Kompatible Produkte
Softwares (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produkt- oder Komponententyp | Jalousieaktor |
| Betriebsmodus | Manuell KNX Bussystem |
| Bustyp | KNX |
| Baureihe | SpaceLogic KNX | Zusatzmerkmale |
| Gesamtzahl 18-mm-TE | 8 |
| Montagehalterung | DIN-Schiene |
| [Ue] Bemessungs-Betriebsspannung | 230 V AC 50/60 Hz |
| [In] Bemessungsstrom | 10 A |
| Anzahl der Ausgänge | 8 |
| Lasttyp | Motor: 1.000 VA, 230 V AC |
| Lokale Signalisierung | LED |
| Farbton | Hellgrau | Montage |
| Schutzart (IP) | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 708,000 g |
| VPE 1 Höhe | 8,200 cm |
| VPE 1 Breite | 12,700 cm |
| VPE 1 Länge | 28,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 6 |
| VPE 2 Gewicht | 4,644 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 | Materialien |
| Stromversorgungs-Eingangsstrom | 17,5 mA |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | Eacda3a5-c167-477b-9789-e360abe67cb6 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Total lifecycle Carbon footprint | 13 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 13 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 7.3705993186912115 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 7 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.2417733476031261 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.2 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 3.914703868592565 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 4 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1.2317099139461132 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 1 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=MTN649808_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Halogenfreies Produkt |
| PVC-frei | Ja |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=MTN649808_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
25 Dokumente
| Merten Katalog
15/09/25 · Catalog |
81,4 MB | Download |
| SpaceLogic KNX CAD Library-2D DWG
04/04/25 · CAD |
15,7 MB | Download |
| MTN649808 REACh-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| MTN649808 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Certificate for actuator Merten 15/03/25 · Certificate | 2,3 MB | Download |
| KNX Catalogue 05-2024
15/03/25 · Catalog |
84,5 MB | Download |
| EU-megfelelőségi nyilatkozat 15/03/25 · Declaration of conformity | 0,0 MB | Download |
| KNX MTN649808 Dimension/Wiring/Symbol -2D CAD Drawing
15/03/25 · CAD |
1,1 MB | Download |
| SpaceLogic KNX- Atuador de estores REG-K/8x/10-Instruções de utilização (PT) 15/03/25 · User guide | 0,3 MB | Download |
| SpaceLogic KNX- Actuador de persianas REG-K/8x/10 con accionamiento manual - ETS Descripción de la aplicación (ES) 15/03/25 · User guide | 1,5 MB | Download |
| SpaceLogic KNX- Blind Actuator REG-K/8x/10-Operating instructions (EN) 15/03/25 · User guide | 0,5 MB | Download |
| SpaceLogic KNX- Jalousieaktor REG-K/8x/10-Gebrauchsanweisung (DE) 15/03/25 · User guide | 0,3 MB | Download |
| KNX Blind actuator REG-K/8x/10 with manual mode, light grey-Technical leaflet
15/03/25 · Other technical guide |
0,1 MB | Download |
| MTN649808-00 Software ETS4-ETS5.x (knxprod) 15/03/25 · Software - Data Library | 0,6 MB | Download |
| MTN649808-00 Software ETS3d-ETS5.x (Vdx) 15/03/25 · Software - Data Library | 4,4 MB | Download |
| KNX Schneider Electric BIM data (Building Information Modeling)
15/03/25 · BIM Model |
67,4 MB | Download |
| SpaceLogic KNX- Blind actuator REG-K/x/10 with manual mode - ETS Application description (EN) 15/03/25 · User guide | 1,4 MB | Download |
| SpaceLogic KNX- Jalousieaktor REG-K/x/10 mit Handbetätigung - ETS Applikationsbeschreibung (DE) 15/03/25 · User guide | 1,4 MB | Download |
| SpaceLogic KNX- Actionneur de stores REG-K/x/10 à commande manuelle - ETS Description de l’application (FR) 15/02/25 · User guide | 1,5 MB | Download |
| EU declaration of conformity 15/11/24 · Declaration of conformity | 0,9 MB | Download |
| UK Declaration of Conformity 17/09/24 · Declaration of conformity | 0,4 MB | Download |
| KNX Certificate 17/09/24 · Certificate | 0,1 MB | Download |
| SpaceLogic KNX- Actionneur de volets/stores KNX REG-K 8x10A-Mode d'emploi (FR) 12/09/24 · User guide | 0,2 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 Circularity Profile | 0,0 MB | Download |
