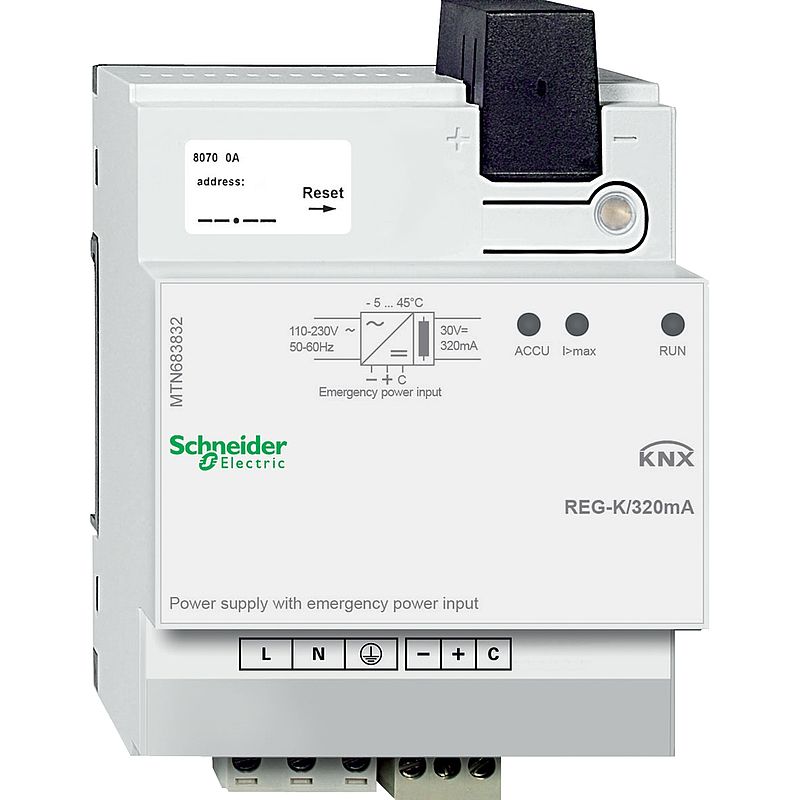

KNX Spannungsversorgung REG-K/320 mA mit Notstromeingang, lichtgrau
MTN683832
Farbton: Hellgrau
Materialpreisgruppe
: G2
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Specification guide
|
Download |
|
Declaration of conformity
|
Download |
|
BIM Model
|
Download |
|
Software - Data Library
|
Download |
|
Other technical guide
|
Download |
|
Application Notes
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produkt- oder Komponententyp | Netzteil |
| Bustyp | KNX |
| Zusätzliche Informationen | Mit integrierter Drossel |
| Baureihe | SpaceLogic KNX |
| Farbton | Hellgrau | Zusatzmerkmale |
| Gesamtzahl 18-mm-TE | 4 |
| Montagehalterung | DIN-Schiene |
| Netzwerkfrequenz | 50 - 60 Hz |
| Lokale Signalisierung | LED |
| Eingangstyp | Noteingang |
| Anzahl Klemmenaschluss-Module | 64 |
| Max. Ausgangsstrom | 320 mA |
| Bemessungsspannung | 110…230 V AC 50 - 60 Hz | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 322,000 g |
| VPE 1 Höhe | 8,200 cm |
| VPE 1 Breite | 13,400 cm |
| VPE 1 Länge | 15,900 cm |
| VPE 2 Art | CAR |
| VPE 2 Menge | 10 |
| VPE 2 Gewicht | 3,602 kg |
| VPE 2 Höhe | 19,900 cm |
| VPE 2 Breite | 30,800 cm |
| VPE 2 Länge | 40,600 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 7 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 6.260694268283408 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 6 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.04200198448934486 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.7496844356422337 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.7 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 7 |
| Recyclingfähigkeitspotential in % | 20 |
| SCIP-Nummer | 897d4381-fe04-48d3-8520-54fbf994a5af |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=MTN683832_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | Halogenfreies Produkt |
| PVC-frei | Ja |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=MTN683832_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
24 Dokumente
| Merten Katalog
15/09/25 · Catalog |
81,4 MB | Download |
| SpaceLogic KNX CAD Library-2D DWG
04/04/25 · CAD |
15,7 MB | Download |
| MTN683832 REACh-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| MTN683832 EU-RoHS-Erklärung
04/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| DoC for UPS HD 15/03/25 · Declaration of conformity | 1,0 MB | Download |
| KNX Catalogue 05-2024
15/03/25 · Catalog |
84,5 MB | Download |
| KNX MTN683832 Dimension/Wiring/Symbol -2D CAD Drawing
15/03/25 · CAD |
0,3 MB | Download |
| KNX- Fonte de alimentação com entrada de alimentação de emergência REG-K-Instruções de utilização (PT) 15/03/25 · User guide | 0,9 MB | Download |
| SpaceLogic KNX- Fonte de Alimentação de Emergência REG-K-Instruções de utilização (PT) 15/03/25 · User guide | 0,4 MB | Download |
| SpaceLogic KNX- Alimentation de secours REG-K-Mode d'emploi (FR) 15/03/25 · User guide | 0,2 MB | Download |
| Manage lighting and comfort in a hotel room based on occupancy 15/03/25 · Application Notes | 0,2 MB | Download |
| MTN683832-00 Software ETS4-ETS5.x (knxprod) 15/03/25 · Software - Data Library | 0,0 MB | Download |
| KNX Schneider Electric BIM data (Building Information Modeling)
15/03/25 · BIM Model |
67,4 MB | Download |
| EU declaration of conformity 15/03/25 · Declaration of conformity | 0,9 MB | Download |
| UK Declaration of Conformity 15/03/25 · Declaration of conformity | 0,5 MB | Download |
| LED Lighting technical guide - How to control and protect LED lighting circuits?
15/03/25 · Specification guide |
22,5 MB | Download |
| DoC UPS 15/02/25 · Declaration of conformity | 0,8 MB | Download |
| KNX- Alimentation électrique avec entrée d'alimentation de secours REG-K-Mode d'emploi (FR) 15/02/25 · User guide | 0,4 MB | Download |
| KNX power supply REG-K/320 mA with emergency power input, light grey-Technical leaflet
15/02/25 · Other technical guide |
0,1 MB | Download |
| MTN683832-00 Software ETS3d-ETS5.x (Vdx) 25/09/24 · Software - Data Library | 0,0 MB | Download |
| KNX Certificate 17/09/24 · Certificate | 0,1 MB | Download |
| Merten KNX megfelelőségi nyilatkozat 14/09/24 · Declaration of conformity | 0,0 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 Circularity Profile | 0,0 MB | Download |
