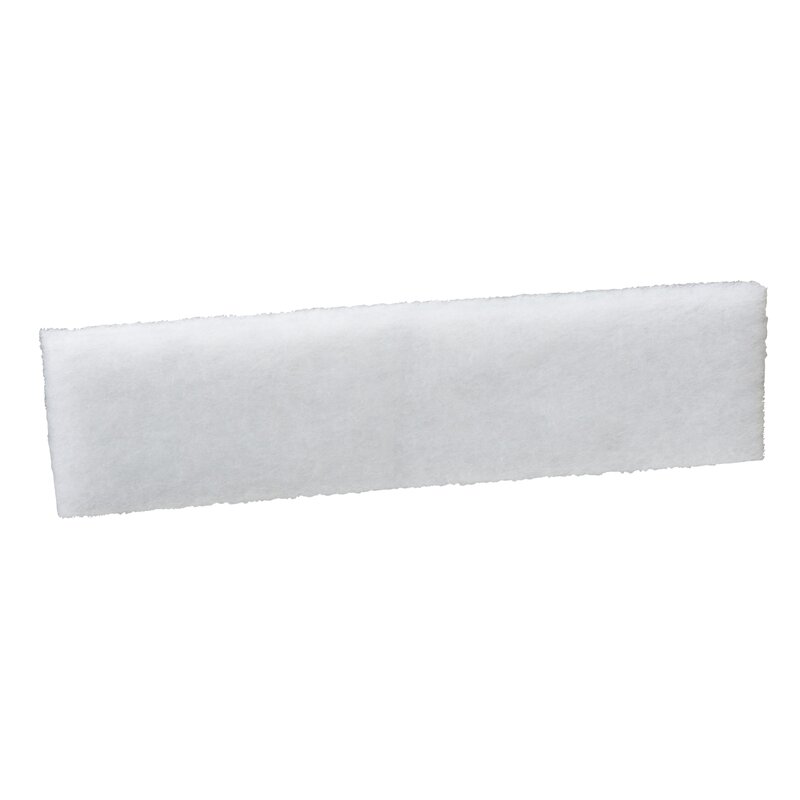

Filter f Dachausgangsgitter o Filterlüfter, Dach, IP54 f Ausschnitt 228x228mm
NSYCAF228R
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Environmental Disclosure
|
Download |
|
Other technical guide
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | ClimaSys |
| Produktname | ClimaSys CA |
| Produkt- oder Komponententyp | Filter |
| Kompatible Produktfamilie | ClimaSys ClimaSys CV Prisma Prisma P |
| Zubehör / Teilekategorie | Wärmemanagement-Zubehör | Zusatzmerkmale |
| Montageort | Auf Haubenvorrichtung |
| Zubehör / Zielkategorie | Haube für natürliche Belüftung IP54 |
| Menge pro Satz | Satz à 1 Stück |
| Dicke | 200 mm | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 20,000 cm |
| VPE 1 Breite | 30,000 cm |
| VPE 1 Länge | 8,000 cm |
| Verpackungsgewicht (Lbs) | 88,000 g |
| VPE 2 Art | CAR |
| VPE 2 Menge | 5 |
| VPE 2 Höhe | 20,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 2 Gewicht | 440,000 g |
| VPE 3 Art | P12 |
| VPE 3 Menge | 50 |
| VPE 3 Höhe | 53,000 cm |
| VPE 3 Breite | 80,000 cm |
| VPE 3 Länge | 120,000 cm |
| VPE 3 Gewicht | 17,000 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Circular Econmomy-Eignung | Keine besonderen Recycling-Verfahren erforderlich |
| SCIP-Nummer | 61d9d3f3-5a49-48f8-8056-1a5ad0ad4c76 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=NSYCAF228R_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=NSYCAF228R_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
