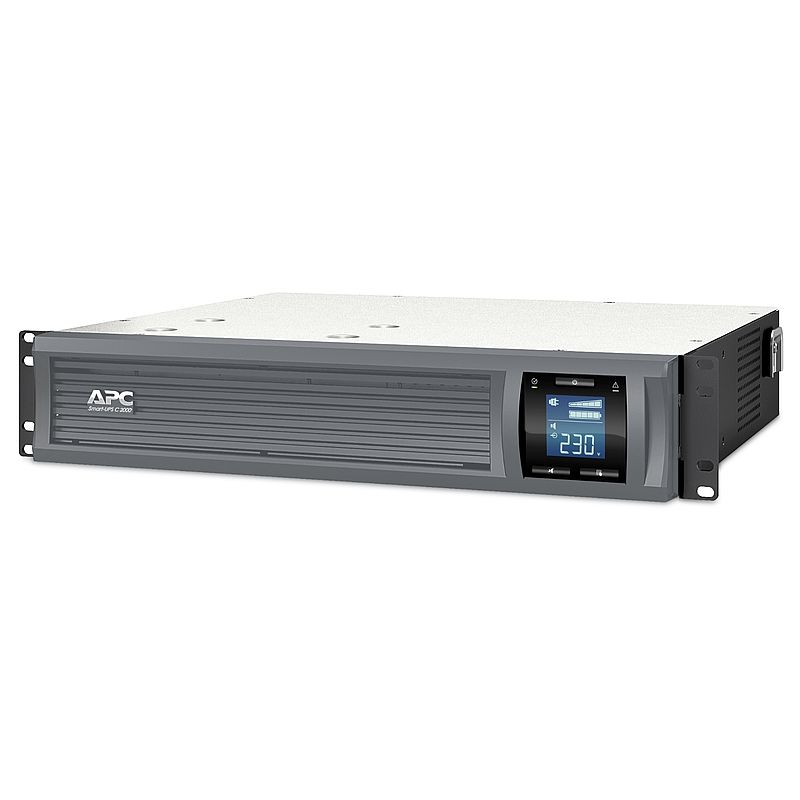

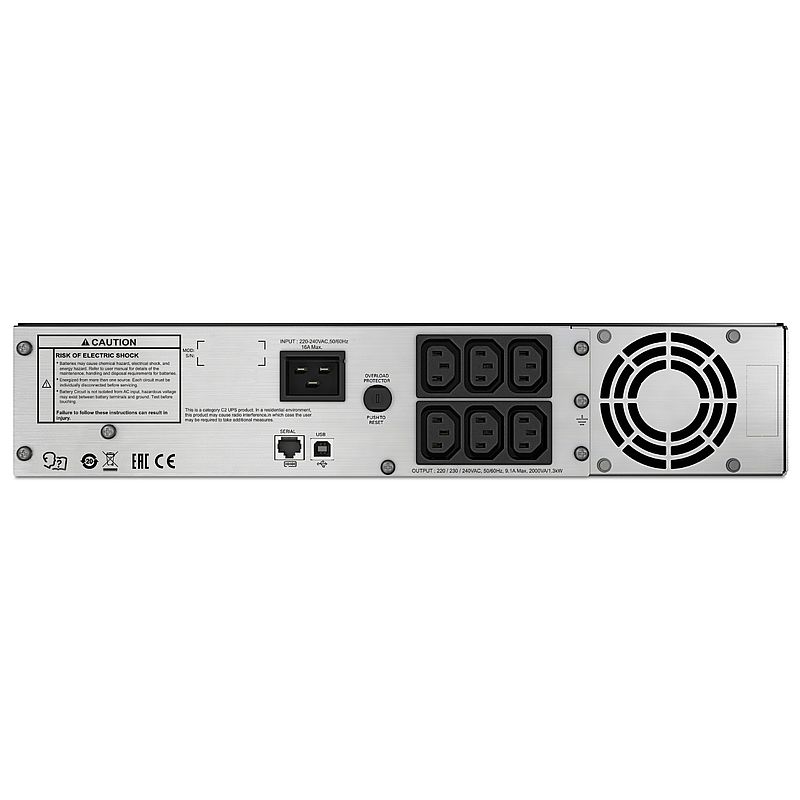

APC Smart-UPS C, Line Interactive, 2000VA, Rackmount 2U, 230V, 6x IEC C13 outlets, USB and Serial communication, AVR, Graphic LCD
SMC2000I-2URS
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Softwares Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (2)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 1300 W |
| Rated power in VA | 2000 VA |
| Input connection | IEC 60320 C20 |
| Output connection | 6 IEC 60320 C13 2 IEC-Steckbrücken |
| Efficiency at full load | 180 - 287 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1300 W |
| Transfer time | 8 ms typisch, 10 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 50 Hz Netzsynchronisation | Zusatzmerkmale |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Provided equipment | Installationsanleitung Rack-Montage-Halterungen |
| Additional specification | Entry level |
| Redundant | No |
| Color | Grau |
| Height | 89 mm |
| Width | 480 mm |
| Depth | 470 mm |
| Product weight | 26,2 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| Two post mountable | 1 |
| USB compatible | Yes |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Surge energy rating | 300 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Mounting mode | Aufbau with included kit |
| UPS connectivity | Serial port USB port |
| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 144 W bewertet | Montage |
| Product certification | EAC |
| Acoustic level | 42 dBA |
| Heat dissipation | 81 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 30,16 kg |
| VPE 1 Höhe | 25 cm |
| VPE 1 Breite | 60 cm |
| VPE 1 Länge | 59 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SMC2000I-2URS_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SMC2000I-2URS_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
