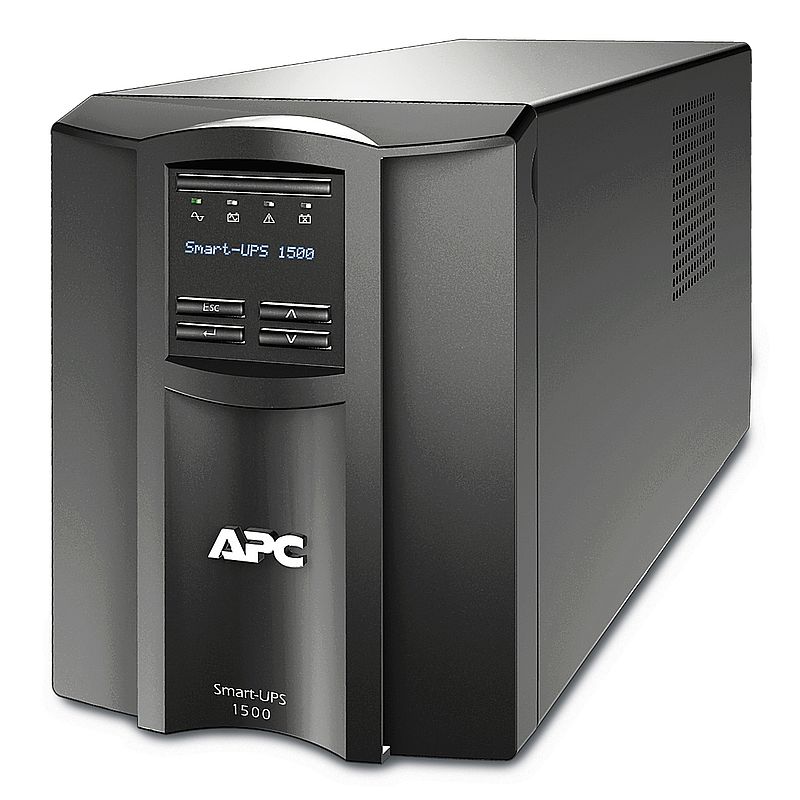

Smart-UPS, Line Interactive, 1500VA, Tower, 230V, 8 IEC C13-Stecker, SmartConnect Port+SmartSlot, AVR, LCD
SMT1500IC
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Brochure
|
Download |
|
Handout
|
Download |
|
Presentation
|
Download |
|
Certificate
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Quick start guide
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
User guide
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (1)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Smart Slots Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 1000 W |
| Rated power in VA | 1500 VA |
| Input connection | IEC 320 C14 |
| Output connection | 8 IEC 320 C13 2 IEC-Steckbrücken |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 1000 W |
| Transfer time | 6 ms typisch, 10 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation | Zusatzmerkmale |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Provided equipment | Installationsanleitung USB-Kabel |
| Additional specification | Cloud-enabled monitoring |
| Redundant | No |
| Color | Schwarz |
| Height | 219 mm |
| Width | 171 mm |
| Depth | 439 mm |
| Product weight | 24,09 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Free slot | 1 |
| Surge energy rating | 459 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Software package | SmartConnect Software für die Fernüberwachung der Stromversorgung Die Verfügbarkeit der Funktionen hängt von den Nutzungsbedingungen ab. |
| Communication port support | SmartConnect-Ethernet-Anschluss: für die Cloud-Überwachung Die Verfügbarkeit der Funktionen hängt von den Nutzungsbedingungen ab. |

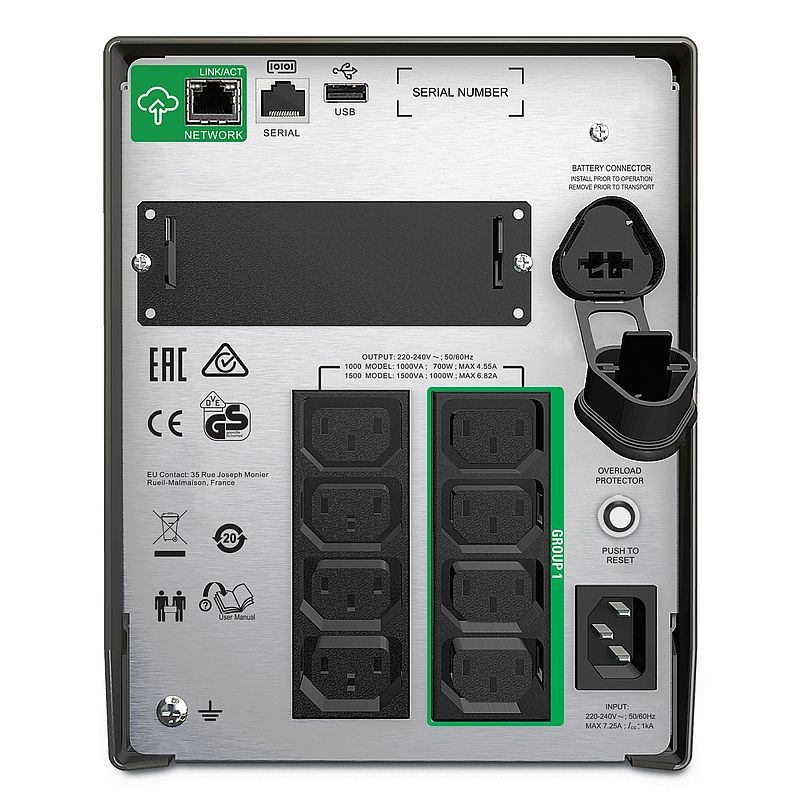

| UPS connectivity | Serial port USB port SmartConnect port Available expansion slot |
| Battery type | Lead-acid internal included |
| Mounting mode | Tower | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 136 W bewertet | Montage |
| Product certification | CE EAC RCM VDE UK PSTI |
| Acoustic level | 45 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 26,718 kg |
| VPE 1 Höhe | 32,800 cm |
| VPE 1 Breite | 32,500 cm |
| VPE 1 Länge | 59,000 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 2 Art | P12 |
| VPE 2 Menge | 12 |
| VPE 2 Höhe | 112,500 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 332,616 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 36 USV|24 Batterie |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 1073 |
| Total lifecycle Carbon footprint | 1 073 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 737.1370932953 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 737 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 17.6096436939 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 18 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 5.1192522898 |
| CO₂-Fußabdruck der Installationsphase [A5] | 5 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 286.0073629846 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 286 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 26.8515596944 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 27 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SMT1500IC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SMT1500IC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 51 |
