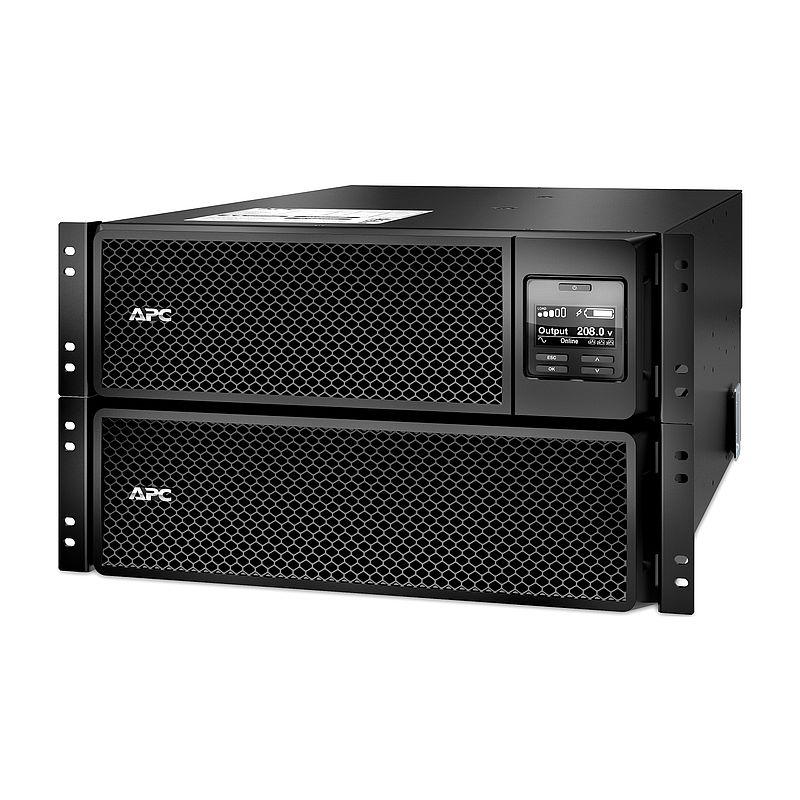

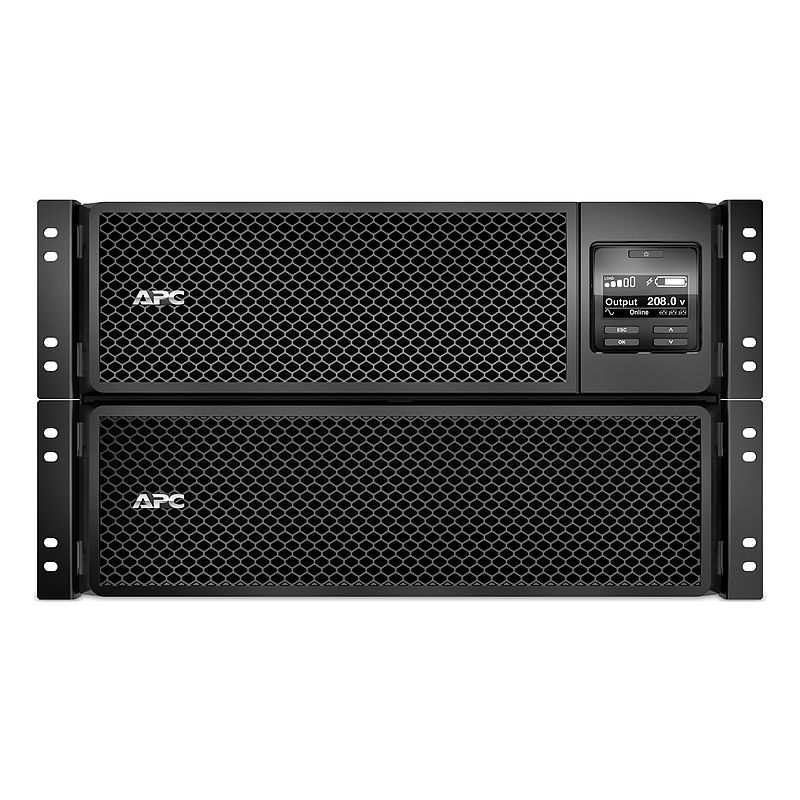

APC Smart-UPS SRT 10000 VA, RM, 208V
SRT10KRMXLT
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Certificate (Sustainability)
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Quick start guide
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Kabel: Kompatible Produkte
Kabel (1)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochleistungs-USV-Systeme mit Doppelwandler-Online-Technologie und skalierbarer Autonomiezeit | Hauptmerkmale |
| Main input voltage | 208 V AC 1 Phase 240 V AC 1 Phase |
| Other input voltage | 240 V |
| Output voltage | 208 V 1 Phase 240 V 1 Phase |
| Other output voltage | 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |

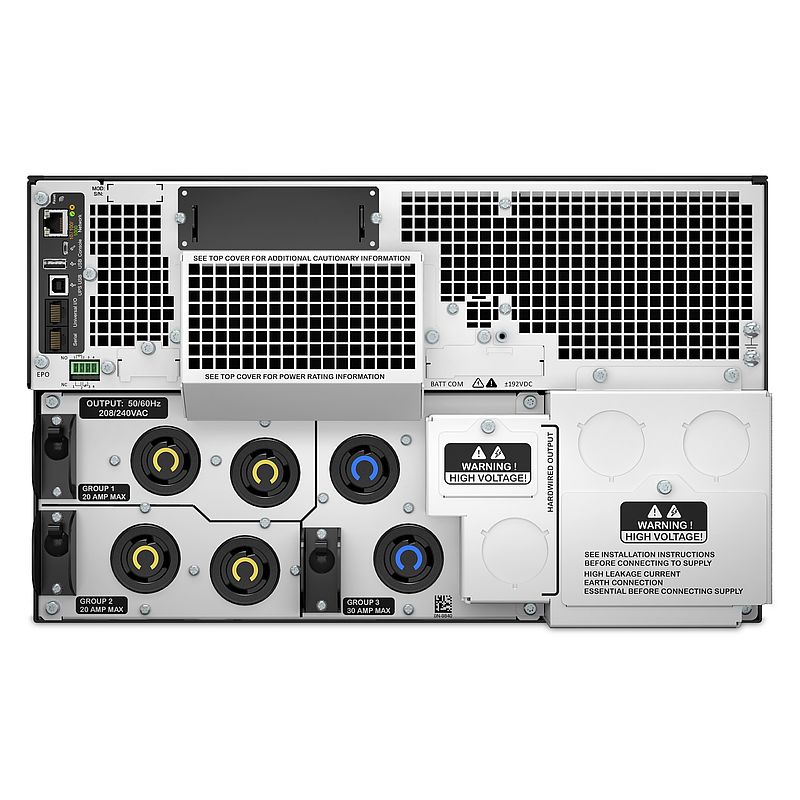

| Output connection | 4 NEMA L6-20R 2 NEMA L6-30R |
| Output connection | Fest verdrahtet 3-adrig (2PH + G) for 1 zone(s) |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (2PH + G) |
| Efficiency at full load | 100 - 275 V einstellbar (halbe Last) |
| Maximum configurable power in W | 10000 W |
| Harmonic distortion | Weniger als 2 % |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Maximum configurable power in VA | 10000 VA | Zusatzmerkmale |
| Number of rack unit | 6U |
| Provided equipment | CD mit Software Dokumentations-CD Installationsanleitung Rack-Montage-Hardware Rack-Montage-Halterungen Rack-Montage-Tragschienen Temperaturfühler USB-Kabel Garantiekarte Web/SNMP-Managementkarte |
| Additional specification | High density |
| Redundant | No |
| Color | Schwarz |
| Height | 263 mm |
| Width | 432 mm |
| Depth | 715 mm |
| Product weight | 111,58 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Aufbau |
| USB compatible | Yes |
| Free slot | 1 |
| Emergency power off | Ja |
| Surge energy rating | 480 J |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS On-Line |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port USB port Embedded network management card 3 Available expansion slot |
| Mounting mode | Aufbau with included kit | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 1,5 h |
| RBC quantity | 2 |
| Battery voltage | +/-192 V (geteilte Batterie bezogen auf den Nullleiter) |
| Battery charging power | 1191 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | ENERGY STAR V2.0 (USA) FCC Teil 15 Klasse A NOM UL 1778 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 2490 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 129,73 kg |
| VPE 1 Höhe | 46,1 cm |
| VPE 1 Breite | 100 cm |
| VPE 1 Länge | 60 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 36 USV|24 Batterie |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 20678 |
| Total lifecycle Carbon footprint | 20 678 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1633.2603292308 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 633 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 18.0798733154 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 18 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 19010.7273272098 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 19 011 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 15.9309149538 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 16 kg CO2 eq. |
| ENERGY STAR® | ENERGY STAR UPS V2.0 (USA) |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRT10KRMXLT_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRT10KRMXLT_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 65 |
42 Dokumente
| USV-Lösungen, Racks und PDUs - Katalog 2025
15/09/25 · Catalog |
8,6 MB | Download |
| UL and CSA Certificate of Compliance for APC Smart-UPS SRT 8kVA and 10kVA 208V
09/04/25 · Certificate |
0,5 MB | Download |
| APC Smart-UPS Firmware and Release Notes
02/04/25 · Firmware |
0,1 MB | Download |
| Network Management Card 2 (NMC2) Firmware for Smart-UPS with AP9630/31 15/03/25 · Firmware | 4,3 MB | Download |
| Network Management Card 3 (NMC3) Firmware for Smart-UPS (SU) with AP9640/41/43 15/03/25 · Firmware | 4,2 MB | Download |
| Certificate of Conformance - Energy Efficiency - Smart-UPS SRT 1kVA, 1.5k, 2.2k, 3k, 5k, 6k, 8k and 10kVA 15/03/25 · Certificate | 0,2 MB | Download |
| Office of Statewide Health Planning and Development (OSHPD) Preapproval for Smart-UPS Online SRT Products with accessories in commercial and seismic rack applications 15/03/25 · Certificate | 6,9 MB | Download |
| Smart-UPS On-Line SRT 2.2 kVA - 10 kVA Brochure 120V and 208V Models 15/03/25 · Catalog | 19,0 MB | Download |
| Guía de seguridad de Smart-UPS RT/cableados/superiores a 1,5 kVA
15/03/25 · User guide |
0,1 MB | Download |
| Guide de sécurité RT/Câblé/Smart-ups supérieur à 1,5 kVA
15/03/25 · User guide |
0,4 MB | Download |
| Smart-ups guida di sicurezza RT/Cablaggio/oltre 1,5 kVA
15/03/25 · User guide |
0,4 MB | Download |
| Guide d'installation Smart-ups On-liaison SRTRK3
15/03/25 · User guide |
1,2 MB | Download |
| Guía de instalación de Smart-UPS On-line SRTRK3
15/03/25 · User guide |
1,3 MB | Download |
| Guida di installazione Smart-ups On-line SRTRK3
15/03/25 · User guide |
1,3 MB | Download |
| Guía de instalación de Smart-UPS On-Line SRT8K/SRT10K Montaje en torre/Bastidor 6U 15/03/25 · User guide | 2,0 MB | Download |
| Guida di installazione di Smart-UPS On-Line SRT8K/SRT10K Montaggio a Rack/Torre 6U 15/03/25 · User guide | 2,0 MB | Download |
| Guide d’installation du Smart-UPS On-Line SRT8K/SRT10K Montage en Tour/ en Rack 6U 15/03/25 · User guide | 2,0 MB | Download |
| Funcionamiento Smart-UPS On-Line 8/10 kVA, 208/220/230/240 Vac TWR/RM 6U 15/03/25 · User guide | 1,5 MB | Download |
| Funzionamento Smart-UPS On-Line 8/10 kVA, 208/220/230/240 Vac TWR/RM 6U 15/03/25 · User guide | 1,5 MB | Download |
| Fonctionnement Smart-UPS On-Line 8/10 kVA, 208/220/230/240 Vac TWR/RM 6U 15/03/25 · User guide | 1,5 MB | Download |
| Office of Statewide Health Planning and Development (OSHPD) Preapproval for Smart-UPS Online SRT Products with accessories in commercial and seismic rack applications
15/03/25 · Certificate |
3,4 MB | Download |
| FCC Certificate of Compliance for APC Smart-UPS SRT 8kVA and 10kVA 208V
15/03/25 · Certificate |
0,2 MB | Download |
| UL certificate for UPS SRT10KXLJ
15/03/25 · Certificate |
0,2 MB | Download |
| Smart-UPS On-Line SRT 1 kVA - 10 kVA Brochure 120V and 208V Models 15/03/25 · Catalog | 7,7 MB | Download |
| Operation Smart-UPS On-Line 8/10 kVA, 208/220/230/240 Vac TWR/RM 6U 15/03/25 · User guide | 1,2 MB | Download |
| Addendum EPO/Firmware SRT 5/6/8/10 kVA TWR/RM
15/03/25 · Instruction sheet |
0,0 MB | Download |
| Installation Guide Smart-UPS On-Line SRT8K/SRT10K Tower/Rack-Mount 6U 15/03/25 · Instruction sheet | 1,3 MB | Download |
| Installationsanleitung Smart-UPS On-Line SRT8K/SRT10K Turm/Rack - Montage 6U 15/03/25 · User guide | 2,0 MB | Download |
| Installationsanleitung Smart-ups Online SRTRK3
15/03/25 · User guide |
1,2 MB | Download |
| Betrieb Smart-UPS On-Line 8/10 kVA, 208/220/230/240 VAC TWR/RM 6U 15/03/25 · User guide | 1,5 MB | Download |
| Sicherheitshandbuch Smart-ups RT/Hardwire/über 1,5 kVA
15/03/25 · User guide |
0,4 MB | Download |
| Addendum - California Proposition 65 Warning Statement
15/03/25 · Certificate (Sustainability) |
0,1 MB | Download |
| SRT10KRMXLT EU-RoHS-Erklärung
15/02/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| SRT10KRMXLT REACh-Erklärung
15/02/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| NOM (Mexico) certification for APC Smart-UPS On-Line SRT 10 kVA XLT
20/01/25 · Certificate |
0,9 MB | Download |
| 01/01/70 Instruction sheet | 0,0 MB | Download |
| 01/01/70 Instruction sheet | 0,0 MB | Download |
| 01/01/70 Quick start guide | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
