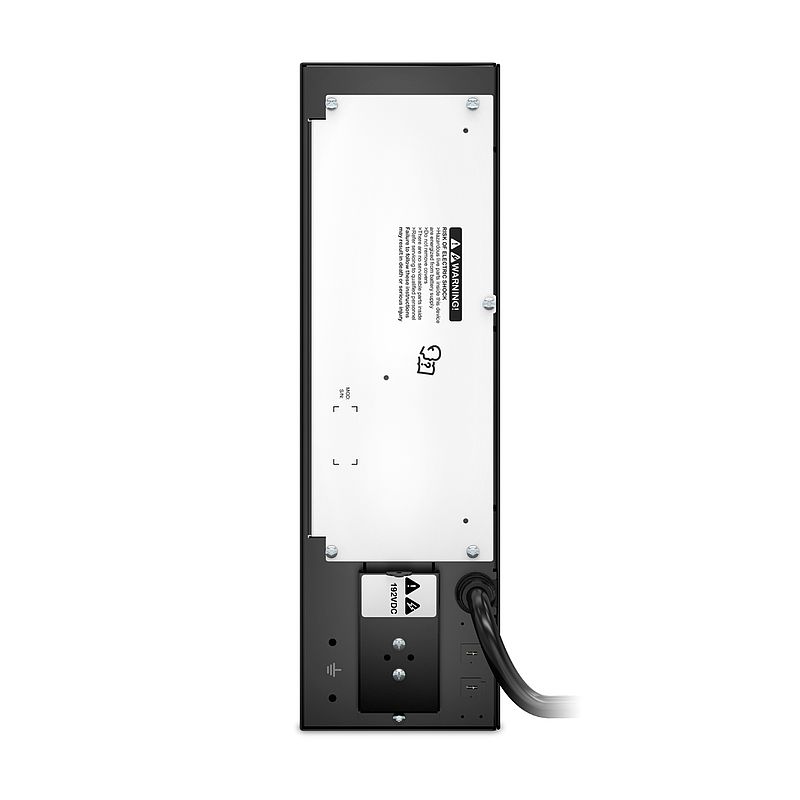

Batteriemodul für APC Smart-UPS SRT, 192 V, 5 und 6 kVA
SRT192BP
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Technical Drawing
|
Download |
|
Circularity Profile
|
Download |
|
Certificate (Sustainability)
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
|
Information label
|
Download |
|
Declaration of conformity
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
UPS-Artikel: Kompatible Produkte
UPS-Artikel (2)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Lieferzeit | Normalerweise auf Lager | Hauptmerkmale |
| Batterietyp | Bleisäurebatterie |
| Geliefertes Zubehör | Dokumentations-CD Installationsanleitung Garantiekarte |
| Produkt- oder Komponententyp | External battery pack |
| Baureihe | Smart-UPS Battery Systems |
| Anzahl der Rack-Einheiten | 3U | Abmessungen |
| Farbe | Schwarz |
| Höhe | 432 mm |
| Breite | 130 mm |
| Tiefe | 682,7 mm |
| Produktgewicht | 91 kg |
| Montagemodus | Rack-montiert mit Bausatz | Umgebung |
| Umgebungstemperatur bei Betrieb | 0…40 °C |
| Betriebshöhe | 0 - 10.000 ft |
| Relative Luftfeuchtigkeit | 0…95 % nicht kondensierend |
| Umgebungstemperatur bei Lagerung | -15…45 °C |
| Aufbewahrungshöhe | 0…4572 m |
| Relative Feuchtigkeit bei Lagerung | 0…95 % nicht kondensierend | Batterien und Überbrückungszeit |
| Gehäusevariante | Eigenständiger Batteriespeicher |
| Batteriespannung | 192 V |
| Anzahl der Ersatzbatterien | 2 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 101,500 kg |
| VPE 1 Höhe | 42,000 cm |
| VPE 1 Breite | 60,000 cm |
| VPE 1 Länge | 100,000 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Ausgang |
| Batteriekapazität | 10 AH | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 488c31fb-3af8-42cf-9558-1362d000a07e |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 749 |
Quecksilberfrei
|
Ja |
| Total lifecycle Carbon footprint | 749 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 375.51 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 376 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 25.163 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 25 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 28.55 |
| CO₂-Fußabdruck der Installationsphase [A5] | 29 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 284.63 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 285 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 35.541 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 36 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Recyclingfähigkeitspotential in % | 48 |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=SRT192BP_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=SRT192BP_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
