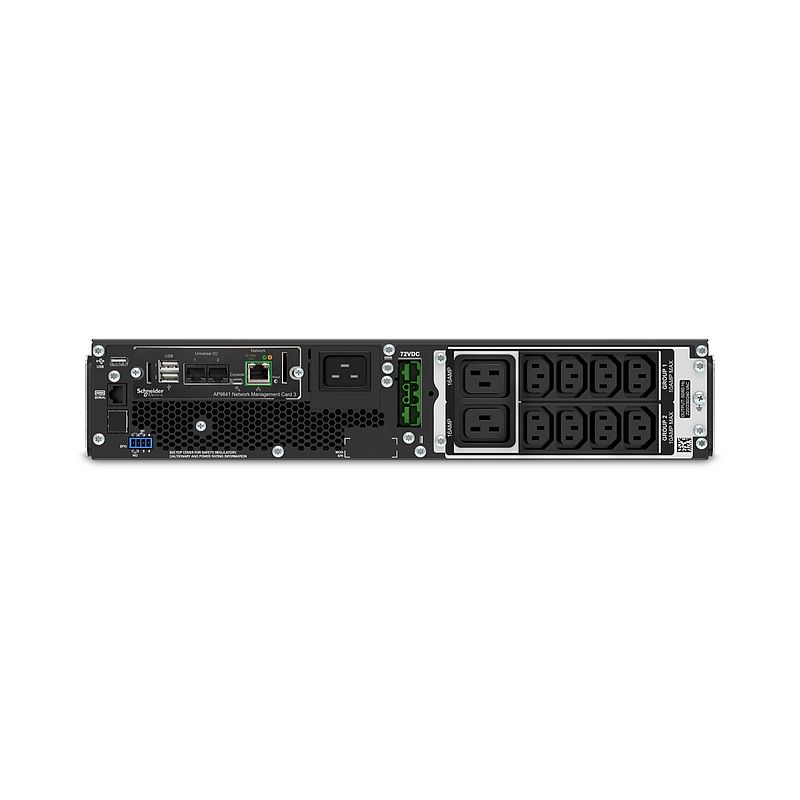

APC Smart-UPS SRT, 2200 VA, Rackmontage, 230 V, Netzwerkkarte
SRT2200RMXLI-NC
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Quick start guide
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Softwares Smart Slots: Kompatible Produkte
Smart Slots (5)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (2)
Sensoren: Kompatible Produkte
Sensoren (2)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
Kabel: Kompatible Produkte
Kabel (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochleistungs-USV-Systeme mit Doppelwandler-Online-Technologie und skalierbarer Autonomiezeit | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| Input connection | BS1363A Britisch IEC 60320 C20 Schuko CEE 7 / EU1-16-polig |
| Output connection | 8 IEC 60320 C13 2 IEC-Steckbrücken 2 IEC 60320 C19 |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Efficiency at full load | 100 - 275 V einstellbar (halbe Last) |
| Maximum configurable power in W | 1980 W |
| Harmonic distortion | Weniger als 2 % |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Integrierter Bypass |
| Maximum configurable power in VA | 2200 VA | Zusatzmerkmale |
| Number of rack unit | 2U |
| Cable length | 2,4 m |
| Number of cables | 1 |
| Provided equipment | CD mit Software Länderspezifisches, abnehmbares Netzanschlusskabel Dokumentations-CD Installationsanleitung Netzwerkmanagement-Karte Rack-Montage-Hardware Rack-Montage-Halterungen Rack-Montage-Tragschienen USB-Kabel Garantiekarte |
| Additional specification | High density |
| Number of power modules | 1400 |
| Redundant | No |
| Color | Schwarz |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 584 mm |
| Product weight | 25 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Free slot | 1 |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Emergency power off | Ja |
| Surge energy rating | 340 J |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS On-Line |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port USB port Pre-installed network management card 3 |
| Mounting mode | Aufbau with kit sold separately | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Included battery module | 1 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery voltage | 72 V |
| Battery charging power | 122 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | CE EAC RCM VDE UK PSTI |
| Marking | CE-Kennzeichnung |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 535 Btu/h |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 33,105 kg |
| VPE 1 Höhe | 24,5 cm |
| VPE 1 Breite | 60 cm |
| VPE 1 Länge | 81,5 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 2 Art | P12 |
| VPE 2 Menge | 3 |
| VPE 2 Höhe | 90,000 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 111,315 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 36 USV|24 Batterie |
Nachhaltigkeit
Nachhaltigkeit
| Bleifrei | Ja |
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 6765 |
| Total lifecycle Carbon footprint | 6 765 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 399.46552 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 399 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 4.4220054 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 4 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 6357.1587830392 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 6 357 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 3.8964096 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 4 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRT2200RMXLI-NC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRT2200RMXLI-NC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 65 |
