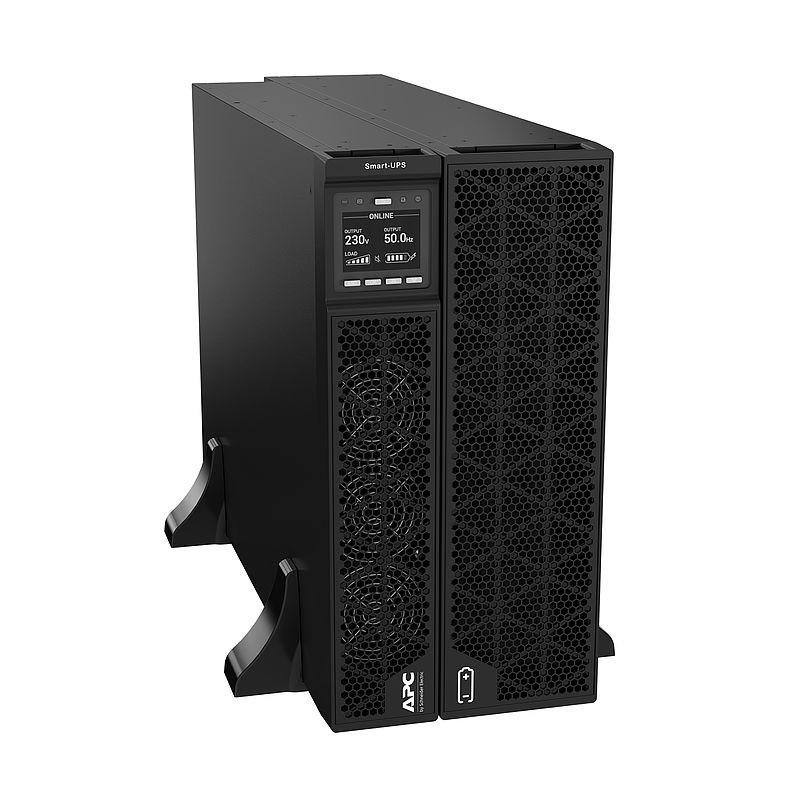

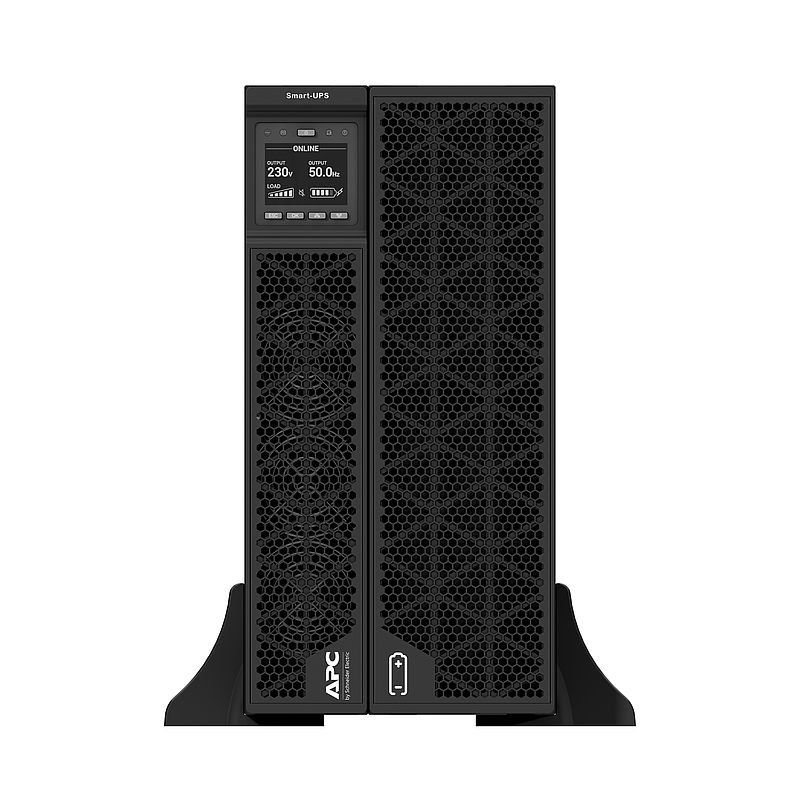

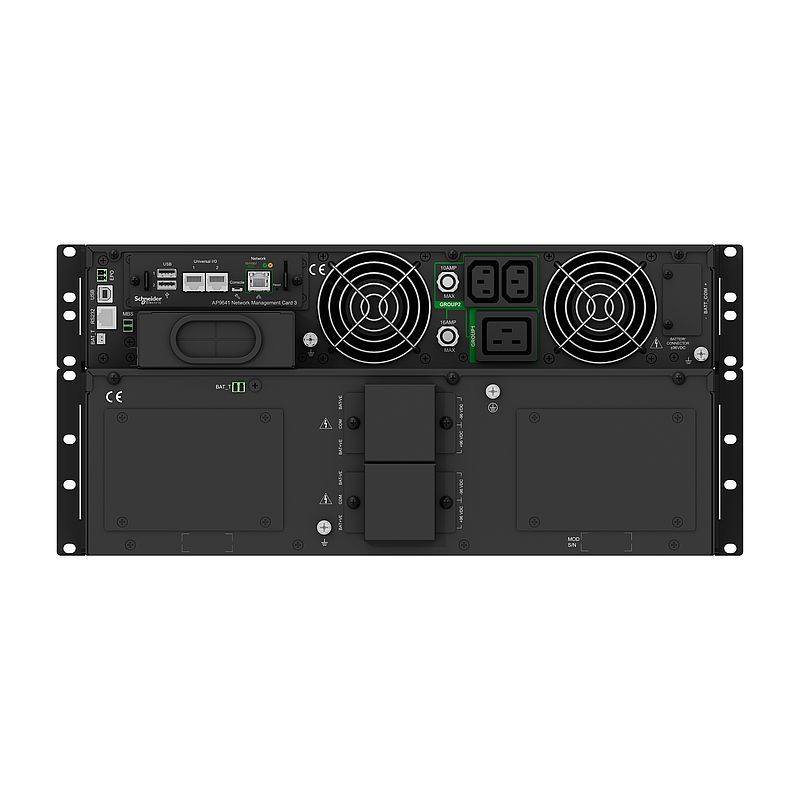

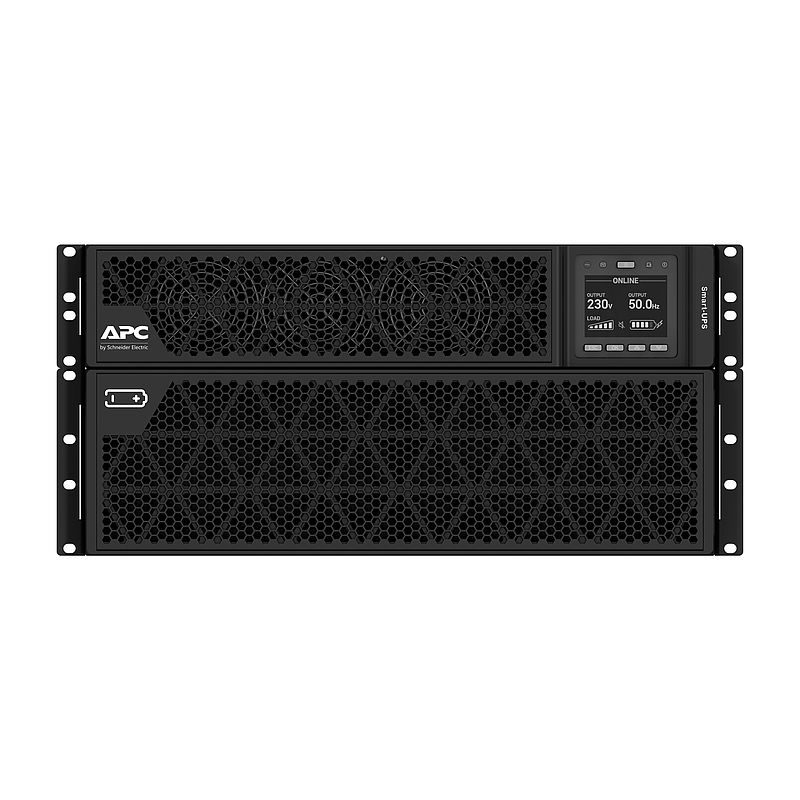

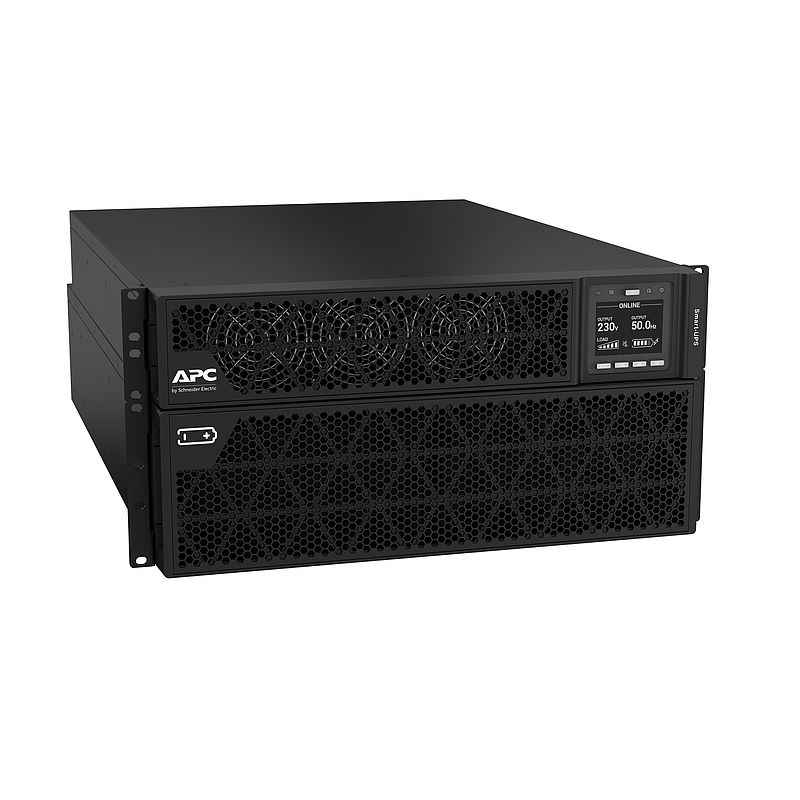

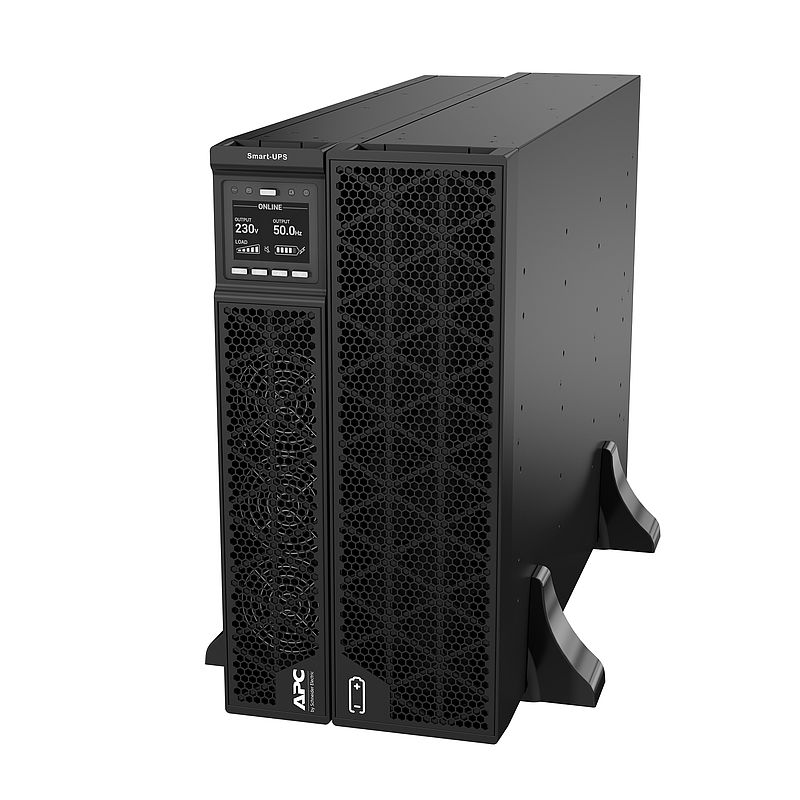

Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+ Festverdrahtung 3-adrig (1P+N+E) Ausg., Netzwerkkarte, ohne Rack-Einbausatz
SRTG8KXLI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Brochure
|
Download |
|
Certificate
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Firmware
|
Download |
|
Declaration of conformity
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Smart Slots Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 8000 W |
| Rated power in VA | 8000 VA |
| Output connection | 2 IEC 60320 C13 1 IEC 60320 C19 |
| Output connection | Fest verdrahtet 3-adrig (1PH + N + G) for 1 zone(s) |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) |
| Efficiency at full load | 160 - 285 V Volllast 100...285 V Halblast |
| Maximum input current | 30 A |
| Switching current capacity | 40 A |
| Maximum configurable power in W | 8000 W |
| Harmonic distortion | Weniger als 2 % |
| Output frequency | 50/60 Hz +/- 4 Hz Netzsynchronisation |
| UPS topology | On-Line |
| Maximum configurable power in VA | 8000 VA |
| Waveform type | Sinuswelle |
| Efficiency | 93,5 % |
| Crest factor | 3:1 |
| Bypass type | Interner Bypass (automatisch und manuell) | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Included battery module | 2 |
| Typical recharge time | 4 h |
| Battery voltage | +/-96 V |
| Battery charging power | 392 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 |
| RBC quantity | 2 | Zusatzmerkmale |
| Provided equipment | 1 x USB-Kabel 1 x RJ45-Kabel 2 x Rack-Montage-Halterungen 2 x Stabilisierung/Wandmontagefüße 2 x Installationshandbuch 1 x C13-C14 Netzanschlusskabel 1 x externer Akkupack 1 x Batteriekabel |
| Redundant | No |
| Height | 217 mm |
| Width | 440 mm |
| Depth | 680 mm |
| Product weight | 101,5 kg |
| Mounting preference | Niedriger |
| Mounting mode | Rack-montiert mit Bausatz |
| USB compatible | Yes |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Emergency power off | Ja |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Number of rack unit | 5U |
| Range of product | Smart-UPS On-Line |
| Color | Schwarz (RAL 9005) |
| Mounting position | Horizontal |
| Surge energy rating | 600 J |
| Battery type | Lead-acid external included |
| UPS connectivity | Serial port USB port Pre-installed network management card 3 |
| Mounting mode | Aufbau with included kit | Montage |
| Product certification | CE UKCA TISI |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1774 Btu/h |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 124,5 kg |
| VPE 1 Höhe | 68,5 cm |
| VPE 1 Breite | 59,4 cm |
| VPE 1 Länge | 79,4 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 Batterie|36 USV |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | A64c500c-f72a-458b-8faa-8175a94429fe |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 31 871 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 785.784 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 786 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 37.8972 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 38 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 26.185066666666668 |
| CO₂-Fußabdruck der Installationsphase [A5] | 26 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 118.784 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 119 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 31871 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRTG8KXLI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRTG8KXLI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 31 |
