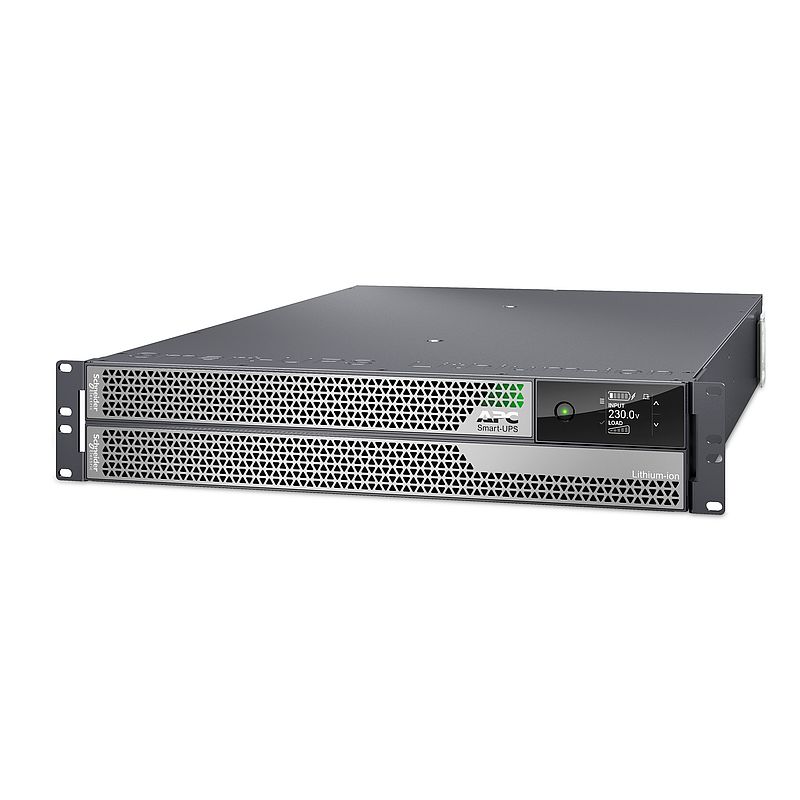

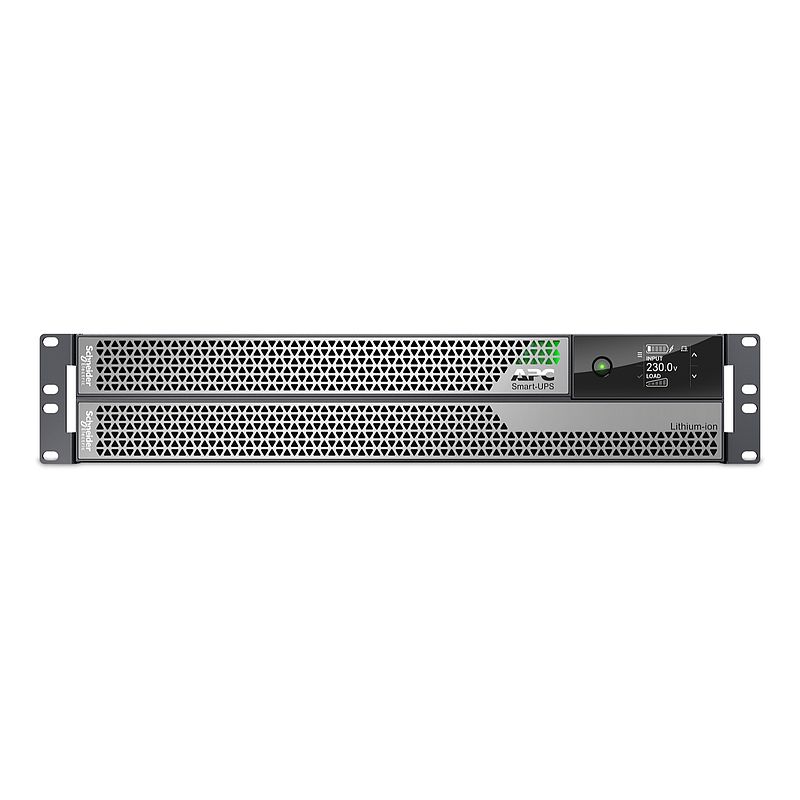

APC Smart-UPS Ultra On-Line Lithium-Ionen, 5KVA/5KW, 2HE Rack/Tower, 230V
SRTL5KRM2UI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
System user guide
|
Download |
|
Quick start guide
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
How to video
|
Video anzeigen |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Brochure
|
Download |
|
Certificate
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (3)
Sensoren: Kompatible Produkte
Sensoren (2)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Kabel: Kompatible Produkte
Kabel (1)
Battery Modules: Kompatible Produkte
Battery Modules (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V |
| Rated power in W | 5000 W |
| Rated power in VA | 5000 VA |

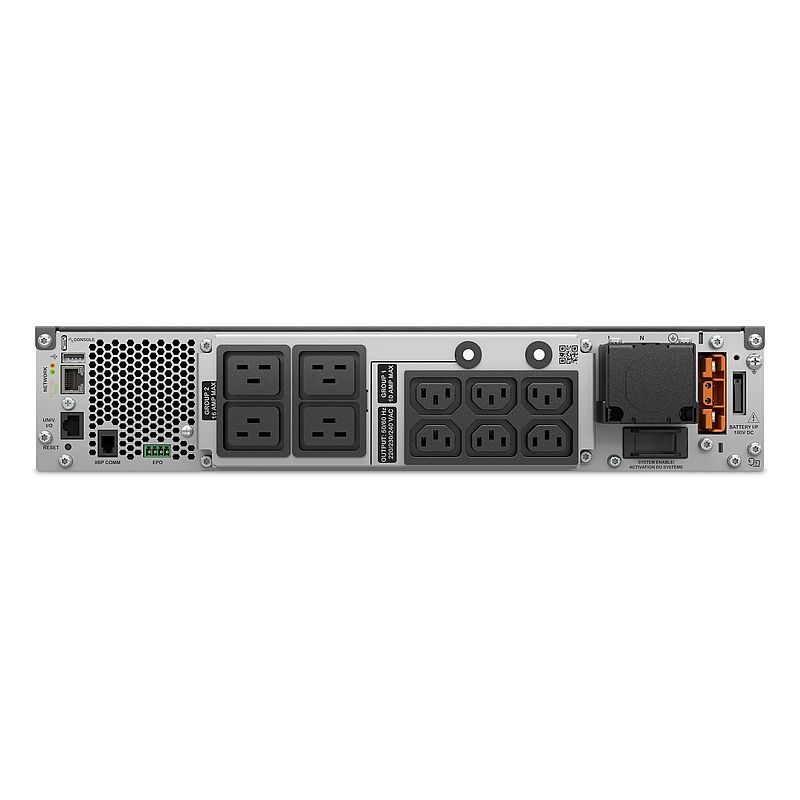

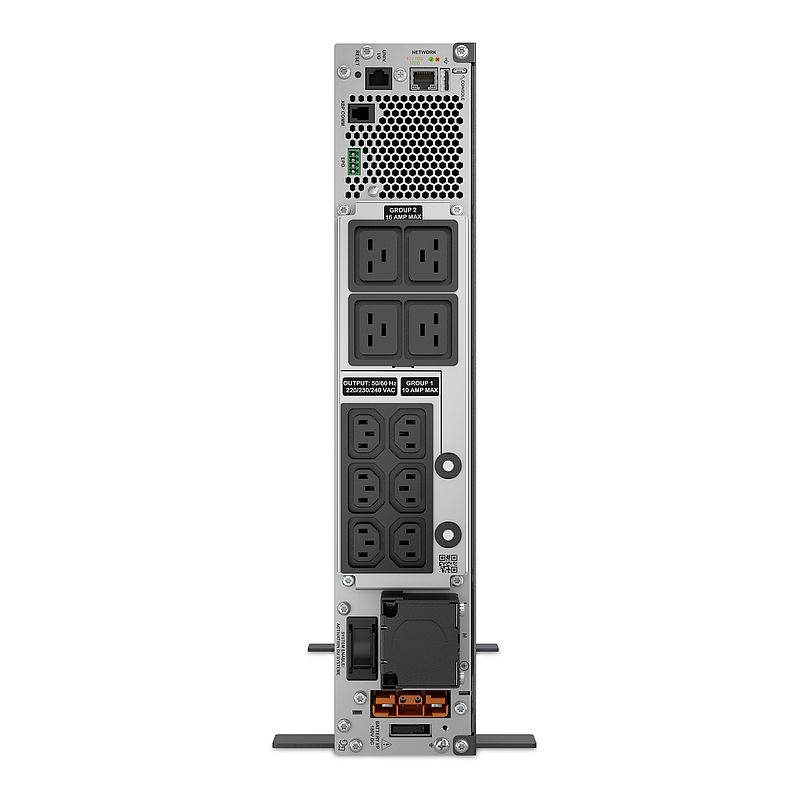

| Output connection | 6 IEC 60320 C13 4 IEC 60320 C19 |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) |
| Efficiency at full load | 180 - 275 V einstellbar (halbe Last) |
| Maximum configurable power in W | 5000 W |
| Harmonic distortion | Weniger als 2 % |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Full load runtime | 00:05:00 5.000 W |
| Half load runtime | 00:12:00 2.500 W |
| Maximum configurable power in VA | 5000 VA | Zusatzmerkmale |
| Number of rack unit | 2U |
| Provided equipment | 1 CD (Software und Dokumentation) USB-Kabel Vordere Abdeckung Erdungsklemmleiste Temperatursensor Stabilisierungsfüße Rack-Montage-Hardware 2P-3P connector 2 x C13-C14 Netzanschlusskabel Abschraubplatte Schienenstoß |
| Additional specification | High density |
| Redundant | No |
| Color | Silbergrau |
| Height | 86 mm |
| Width | 432 mm |
| Depth | 701 mm |
| Product weight | 29,2 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Rack-montiert mit Bausatz Mastmontage mit Bausatz |
| USB compatible | Yes |

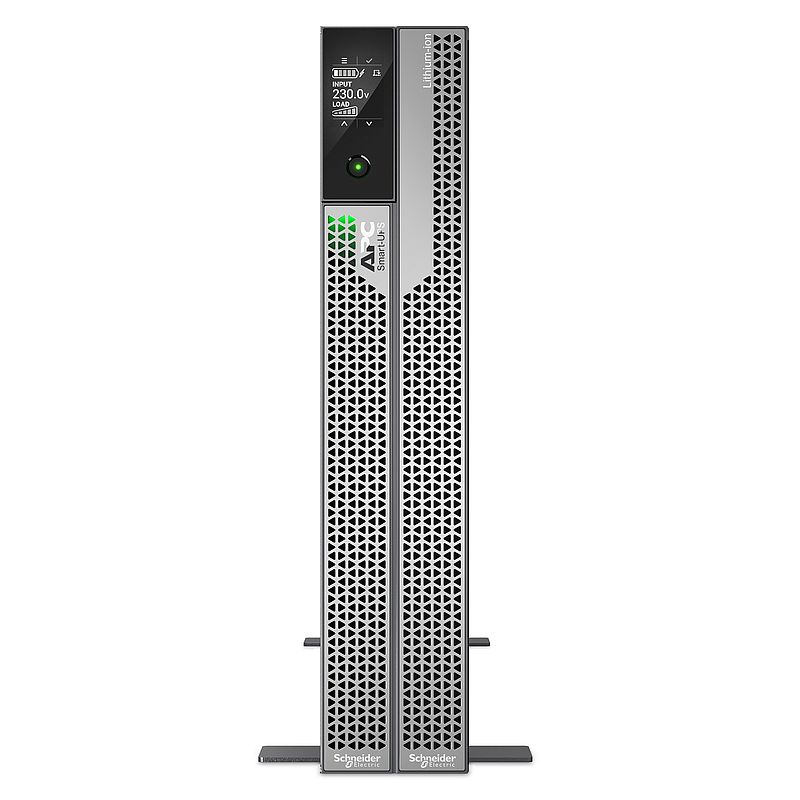

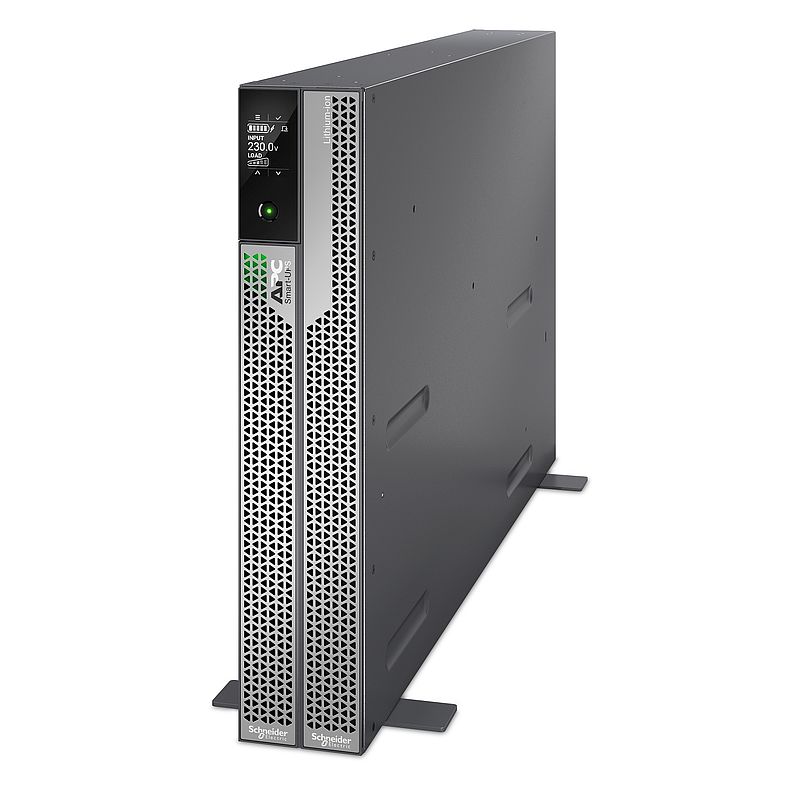

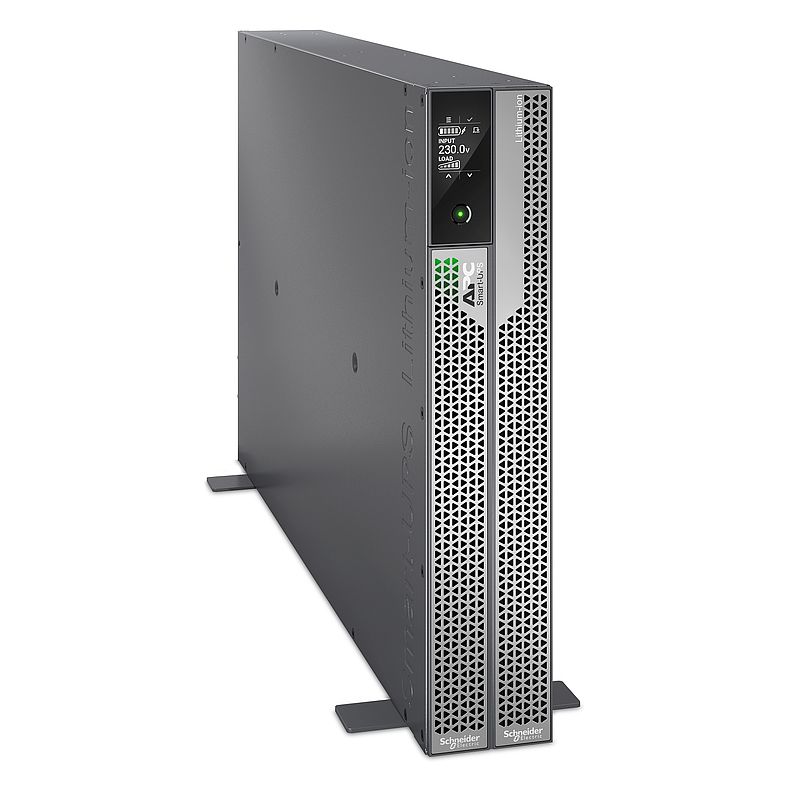

| Mounting position | Horizontal Vertikal |
| Emergency power off | Ja |
| Surge energy rating | 1260 J |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Cable length | 3,05 m |
| Range of product | Smart-UPS Ultra |
| Battery type | Li-Ion (Lithium-Ionen) internal included |
| UPS connectivity | Serial port USB port Embedded network management card 3 |
| Mounting mode | Rack/tower convertible with included kit | Batterien und Überbrückungszeit |
| Battery type | Li-Ion (Lithium-Ionen) |
| Typical recharge time | 1,5 h |
| RBC quantity | 1 |
| Battery voltage | 180 V |
| Battery charging power | 600 W bewertet |
| Battery life | 5…10 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | CE UKCA EN/IEC 62040-1 |
| Marking | CE-Kennzeichnung UKCA |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 931 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 39,2 cm |
| VPE 1 Breite | 58,5 cm |
| VPE 1 Länge | 98,4 cm |
| Verpackungsgewicht (Lbs) | 38,5 kg |
| SCC14 | 10731304435754 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 60 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 5ee38369-4dfb-4636-ab65-b08aa3242891 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Eingesparte und vermiedene Produktbeiträge | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 9690 |
| Total lifecycle Carbon footprint | 9 690 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1990.4525882111423 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 990 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 10.879590327078484 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 11 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 14.173545861035487 |
| CO₂-Fußabdruck der Installationsphase [A5] | 14 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 7624.2260061919515 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 7 624 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 49.837798532774116 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 50 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Recyclingfähigkeitspotential in % | 52 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRTL5KRM2UI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRTL5KRM2UI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
