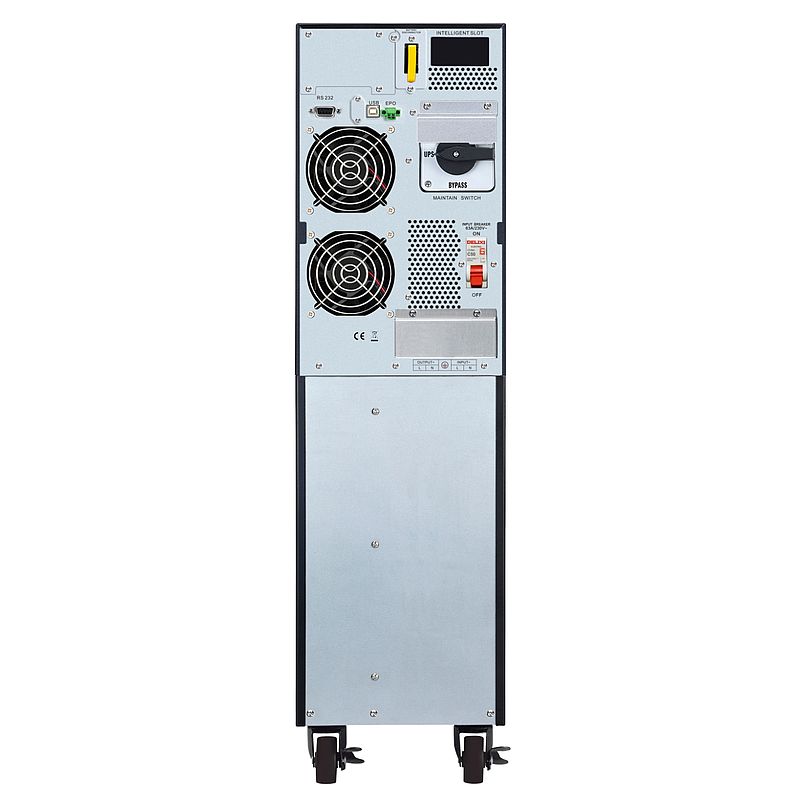

Easy UPS 1Ph On-Line, 10kVA/10kW, Tower, 230V, Festverdrahteter 3-adriger (1P+N+E) Ausgang, Intelligenter Kartensteckplatz, LCD
SRVS10KI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Firmware
|
Download |
Dieses Produkt ist kompatibel mit
Communication Options: Kompatible Produkte
Communication Options (3)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Easy UPS 1 Ph On-Line zur Sicherungstellung der Stromversorgung bei instabilen Netzbedingungen | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connection | Fest verdrahtet 3-adrig (1PH + N + G) for 1 zone(s) |
| Efficiency at full load | 110 - 300 V Halblast 176 - 300 V Volllast |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Maximum configurable power in VA | 10000 VA |
| Maximum configurable power in W | 10000 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Efficiency | 94 % (Volllast) |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Crest factor | 3:1 | Zusatzmerkmale |
| Redundant | No |
| Color | Schwarz (RAL 7010) |
| Height | 685 mm |
| Width | 190 mm |
| Depth | 447 mm |
| Product weight | 65 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Mounting position | Vertikal |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Free slot | 1 |
| Surge energy rating | 600 J |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Easy UPS 1Ph On-Line |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port USB port Available expansion slot |
| Mounting mode | Tower | Montage |
| Product certification | CE UKCA |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dBA |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Heat dissipation | 2128 Btu/h | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Battery voltage | 192 V |
| Typical recharge time | 5 h |
| Battery life | 3…5 Jahre |
| Battery charging power | 235 W bewertet |
| Battery power in VAh | 1.599 VAh Laufzeit | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 77,000 kg |
| VPE 1 Höhe | 32,000 cm |
| VPE 1 Breite | 58,000 cm |
| VPE 1 Länge | 91,000 cm | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Frei von giftigen Schwermetallen | Ja |
| SCIP-Nummer | 8c493f2b-82c6-495f-a54a-f7d594e2b537 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 15 218 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 605.9738866034699 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 606 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 6.707029153997496 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 7 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 9539.7295431472 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 9 540 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 5.908245394383831 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 6 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 15218 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRVS10KI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRVS10KI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 65 |
