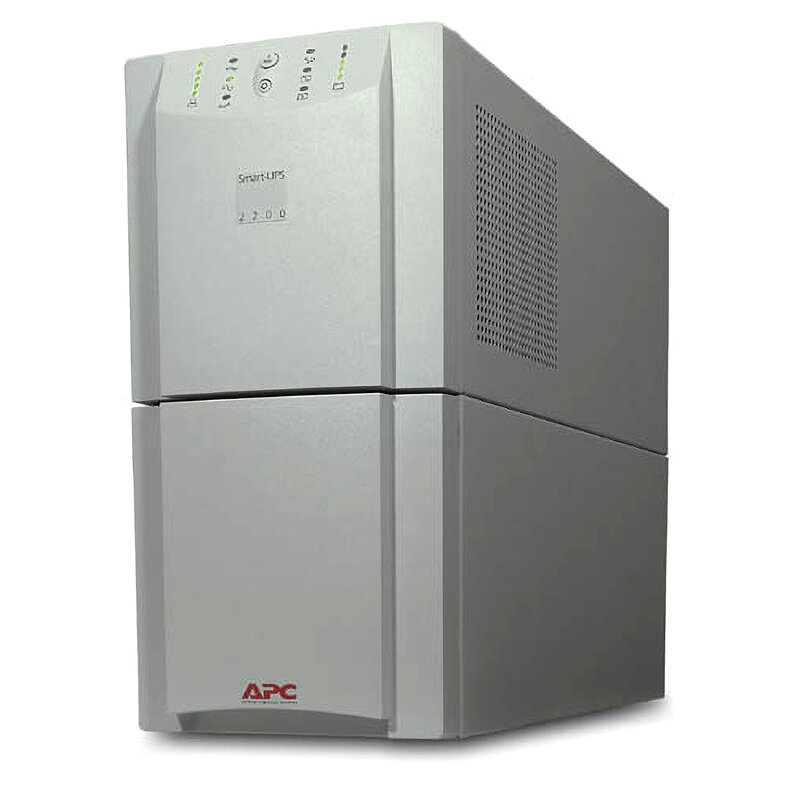

APC Smart-UPS 2200 VA, 230V
SU2200INET
Hauptdokumente
 Produktdatenblatt |
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
Dieses Produkt ist kompatibel mit
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (8)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Output voltage | 230 V |
| Rated power in W | 1600 W |
| Rated power in VA | 2200 VA |
| Input connection | IEC 60320 C20 Schuko CEE 7 / EU1-16-polig BS1363A Britisch |
| Output connection | 8 IEC 60320 C13 3 IEC-Steckbrücken 1 IEC 60320 C19 |
| Efficiency at full load | 168 - 302 V einstellbar 174 - 286 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Crest factor | Bis zu 5:1 |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1600 W |
| Transfer time | 2 ms typisch |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 57 - 63 Hz für 60 Hz Nominal Netzsynchronisation |
Zusatzmerkmale |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Provided equipment | CD mit Software Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch |
| Redundant | No |
| Color | Beige |
| Height | 43,18 cm |
| Width | 19,56 cm |
| Depth | 54,61 cm |
| Product weight | 50,91 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: und Überlastanzeige |
| Emergency power off | Optional |
| Free slot | 1 |
| Surge energy rating | 480 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 271 W bewertet | Montage |
| Product certification | C-Tick CE GOST VDE |
| Acoustic level | 45 dBA |
| Heat dissipation | 275 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 60,782 kg |
| VPE 1 Höhe | 55,88 cm |
| VPE 1 Breite | 38,1 cm |
| VPE 1 Länge | 76,2 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Sustainable packaging | Nein |
