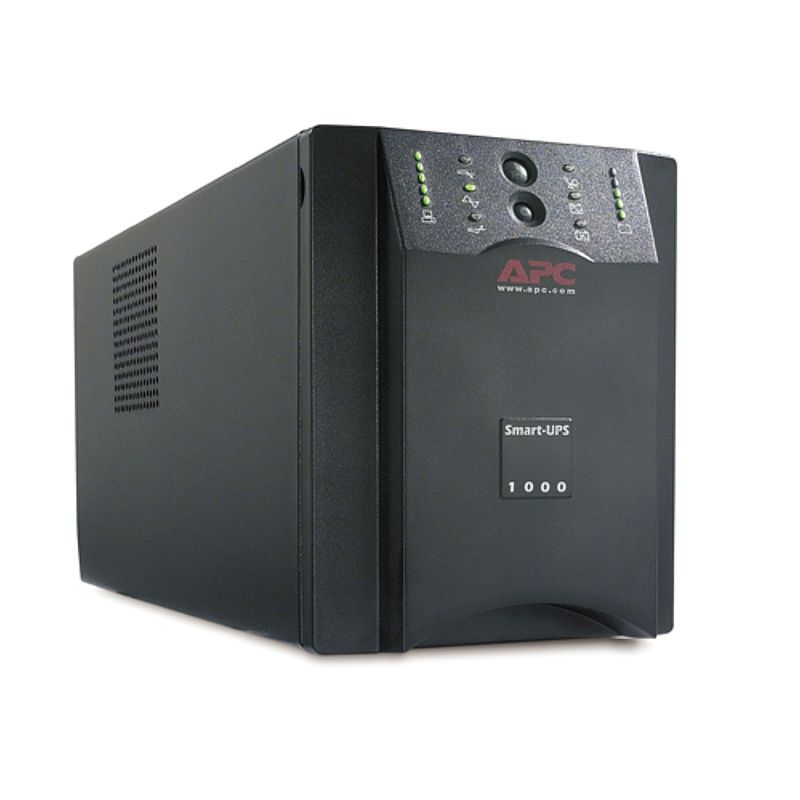

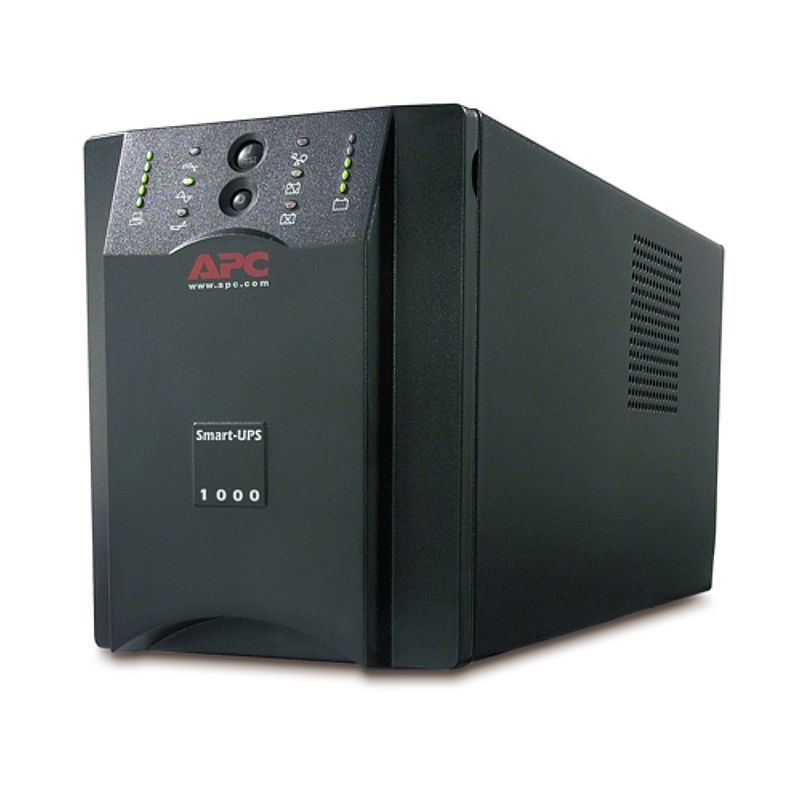

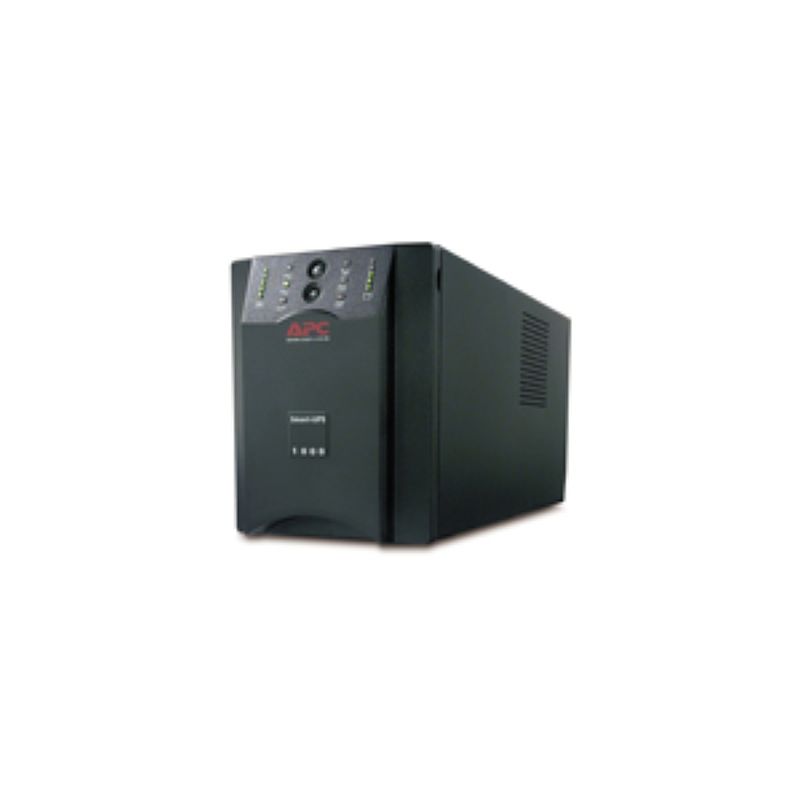

APC Smart-UPS 1000VA, USB & serieller Anschluss, 230 V
SUA1000XLI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Smart Slots: Kompatible Produkte
Smart Slots (3)
Softwares Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (8)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 800 W |
| Rated power in VA | 1000 VA |
| Input connection | IEC 320 C14 |

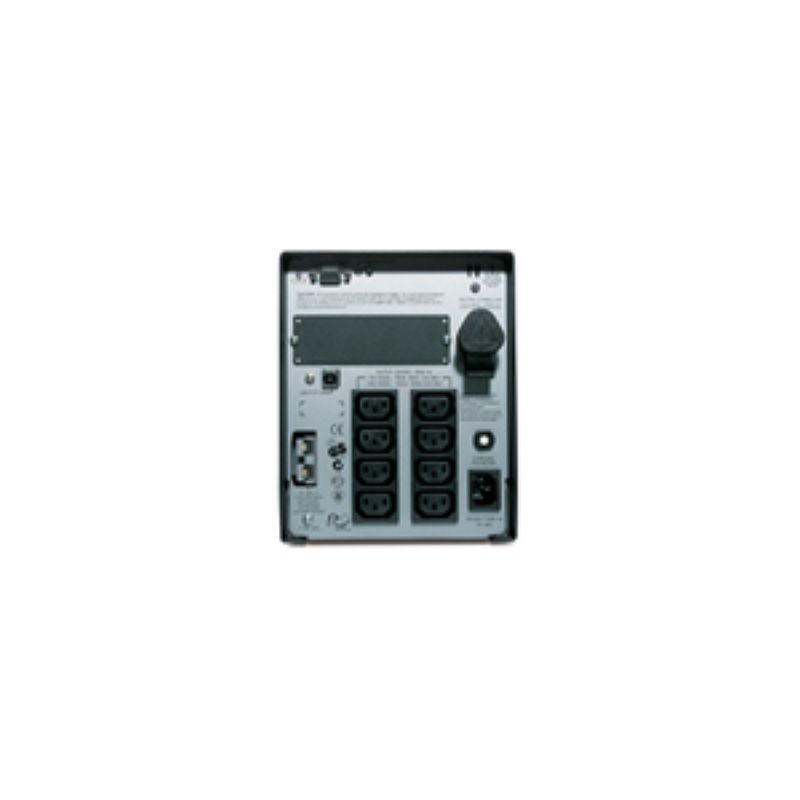

| Output connection | 8 IEC 320 C13 2 IEC-Steckbrücken |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Crest factor | Bis zu 5:1 |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 800 W |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 57 - 63 Hz für 60 Hz Nominal Netzsynchronisation |
Zusatzmerkmale |
| Number of rack unit | 0U |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Provided equipment | CD mit Software Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch USB-Kabel |
| Additional specification | Verlängerte Laufzeit |
| Redundant | No |
| Color | Schwarz |
| Height | 216 mm |
| Width | 170 mm |
| Depth | 439 mm |
| Product weight | 27,27 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: und Überlastanzeige |
| Emergency power off | Optional |
| Free slot | 1 |
| Surge energy rating | 320 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Mounting mode | Tower |
| UPS connectivity | Serial port USB port Available expansion slot |
| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Extendable runtime | 1 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 136 W bewertet | Montage |
| Product certification | C-Tick CE GOST VDE |
| Acoustic level | 42 dBA |
| Heat dissipation | 120 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 29,55 kg |
| VPE 1 Höhe | 38,7 cm |
| VPE 1 Breite | 59,1 cm |
| VPE 1 Länge | 32 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Nein |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 1806 |
| Total lifecycle Carbon footprint | 1 806 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 816.1365869259 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 816 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 19.4968814242 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 19 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 5.6678861089 |
| CO₂-Fußabdruck der Installationsphase [A5] | 6 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 935.0473062103 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 935 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 29.7292599735 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 30 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SUA1000XLI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SUA1000XLI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
