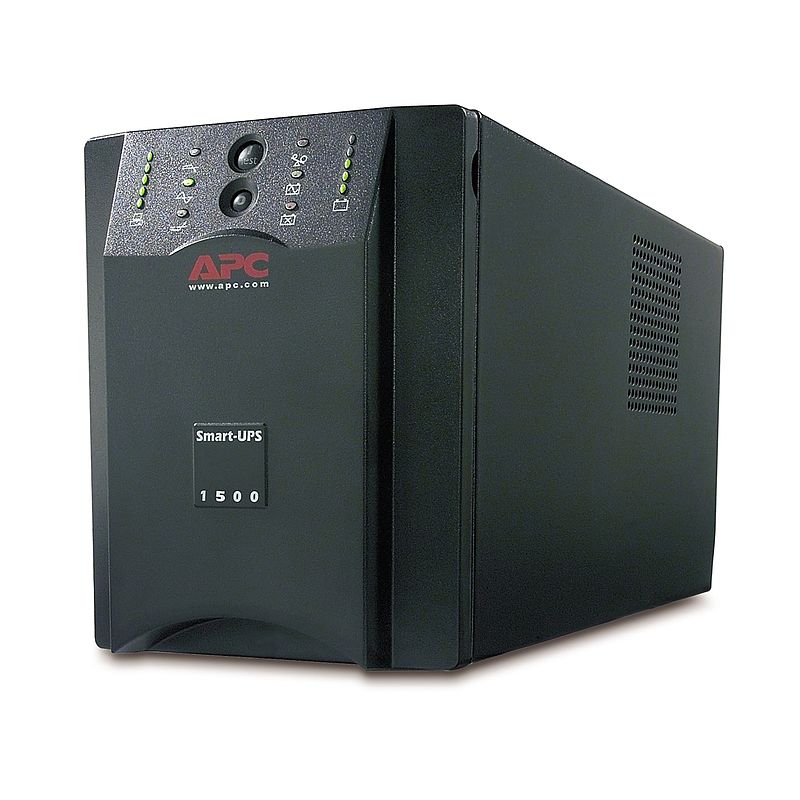

APC Smart-UPS 1500 VA, 230 V, UL-zertifiziert
SUA1500IX38
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (8)
Smart Slots: Kompatible Produkte
Smart Slots (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligente und effiziente USV-Systeme für den multiregionalen Einsatz. | Hauptmerkmale |
| Main input voltage | 230 V |
| Output voltage | 230 V |
| Rated power in W | 980 W |
| Rated power in VA | 1500 VA |
| Input connection | IEC 320 C14 |
| Output connection | 8 IEC 320 C13 2 IEC-Steckbrücken |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Bypass type | Optionaler externer Bypass |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 980 W |
| Transfer time | 2 ms typisch, 4 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 57 - 63 Hz für 60 Hz Nominal Netzsynchronisation |
Zusatzmerkmale |
| Cable length | 2 m |
| Provided equipment | CD mit Software Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch USB-Kabel |
| Redundant | No |
| Height | 216 mm |
| Width | 170 mm |
| Depth | 439 mm |
| Product weight | 24,09 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: und Überlastanzeige |
| Emergency power off | Optional |
| Free slot | 1 |
| Surge energy rating | 480 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 136 W bewertet | Montage |
| Product certification | C-Tick CE CSA GOST UL-gelistet VDE |
| Acoustic level | 45 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 27 kg |
| VPE 1 Höhe | 37 cm |
| VPE 1 Breite | 59 cm |
| VPE 1 Länge | 33 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SUA1500IX38_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SUA1500IX38_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
