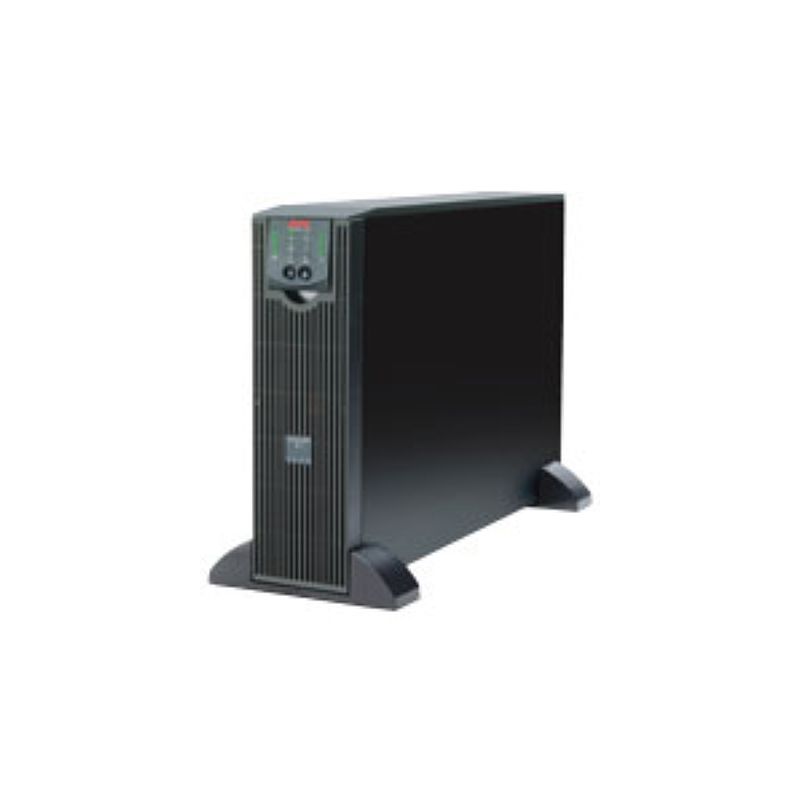

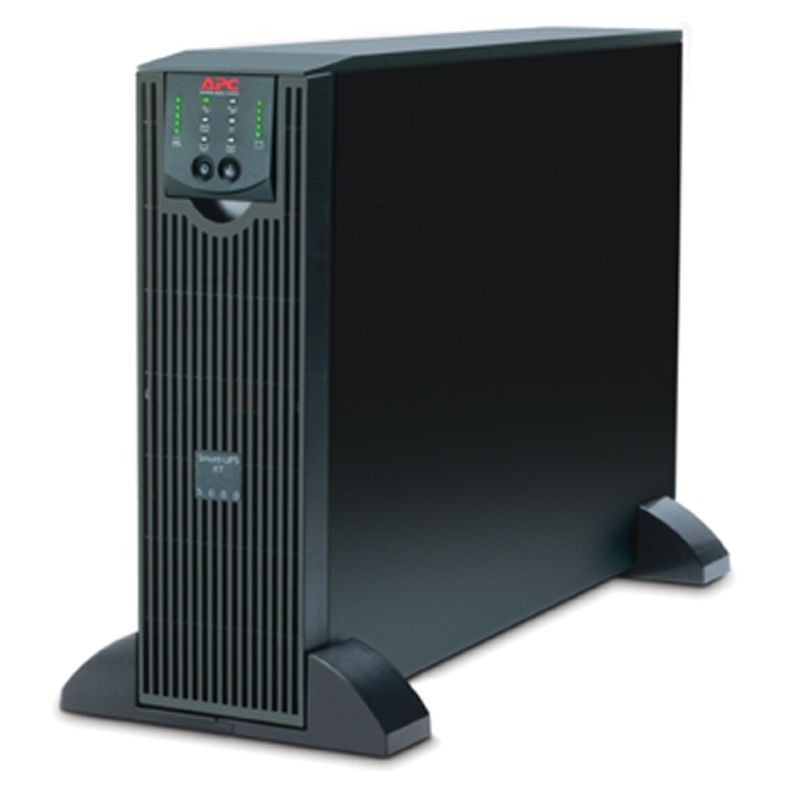

APC Smart-UPS RT 5000 VA, 230 V, mit SURT007, AP9610 und Long-Life-Batterien
SURT5000XLIX438
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Brochure
|
Download |
|
Certificate
|
Download |
|
Circularity Profile
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Racks: Kompatible Produkte
Racks (5)
Smart Slots Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (8)
Batterien: Kompatible Produkte
Batterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochleistungs-USV-Systeme mit Doppelwandler-Online-Technologie und skalierbarer Autonomiezeit | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 3500 W |
| Rated power in VA | 5000 VA |
| Output connection | Fest verdrahtet 3-adrig (H N + E) for 1 zone(s) |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig |
| Efficiency at full load | 160 - 280 V |
| Maximum configurable power in W | 3500 W |
| Harmonic distortion | Weniger als 3 % |
| Output frequency | 50/60 Hz +/-3 Hz benutzerdefinierbar +/-0,1 Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Efficiency | 92 % (Volllast) |
| Maximum configurable power in VA | 5000 VA | Zusatzmerkmale |
| Number of rack unit | 3U |
| Provided equipment | Relaisplatine Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch |
| Redundant | No |
| Variant option | Firmware |
| Color | Schwarz |
| Height | 432 mm |
| Width | 130 mm |
| Depth | 660 mm |
| Product weight | 54,55 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | No |
| Additional information | Konfigurierbar für eine Nennausgangsspannung von 220 oder 230 V |
| Surge energy rating | 480 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Let through voltage rating | 300 V |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS On-Line |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port USB port |
| Mounting mode | Aufbau | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Included battery module | 2 |
| Typical recharge time | 2,5 h |
| RBC quantity | 1 |
| Battery charging power | 341 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | cUL-gelistet CE FCC Teil 15 Klasse A VDE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1040 Btu/h |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 63,64 kg |
| VPE 1 Höhe | 47,4 cm |
| VPE 1 Breite | 97,2 cm |
| VPE 1 Länge | 60,3 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 409c68a1-39a6-4e5f-b080-12befe783ad8 |
| Rücknahme | Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 12160 |
| Total lifecycle Carbon footprint | 12 160 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 799.9462861538 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 800 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 8.8552493769 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 9 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 11343.7090002462 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 11 344 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 7.8027219692 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 8 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SURT5000XLIX438_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SURT5000XLIX438_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 58 |
