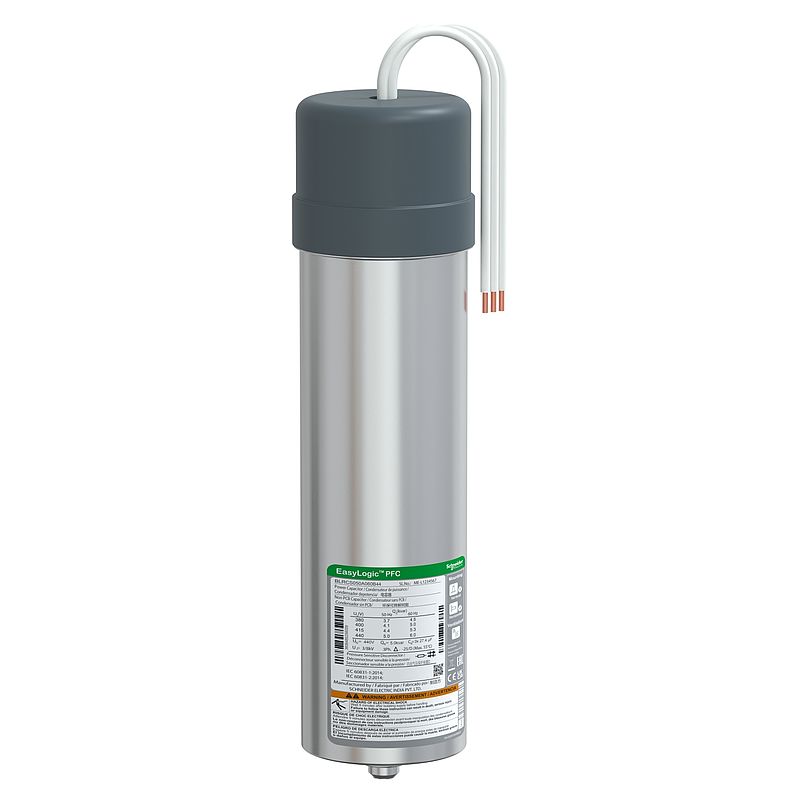

VarplusCan SDuty-Kondensator, 5/6 kvar, 440V, 50/60Hz

BLRCS050A060B44

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Declaration of conformity Download
Technical Drawing Download
Instruction sheet Download
Catalog Download
CAD Download
Circularity Profile Download
Environmental Disclosure Download
Certificate Download

Spezifikationen

Hauptmerkmale
Baureihe EasyLogic
Produktname EasyLogic PFC Capacitor
Produkt- oder Komponententyp Standardbetriebskondensator
Netzwerkfrequenz 50/60 Hz
Name der Reihe EasyLogic PFC-Kondensator
Oberschwingungsgehalt im Netz <= 10 %
Elektrische Parameter 5 kvar 440 V 50 Hz
6 kvar 440 V 60 Hz
Max. zulässige Spannung 1,1 x Un (8 Stunden über 24 Stunden)
Dauerüberstromfestigkeit 1,5 x In
Bemessungsspannung 440 V AC 50/60 Hz
Zusatzmerkmale
Dielektrische Verluste < 0,2 W/kvar
Leistungsverluste < 0,5 W/kVAr
Kondensator-Toleranz -5 % bis 10 %
Spannungsprüfung 2,15 x Un AC zwischen den Klemmen für 10 s
<= 660 V - 3 kV AC zwischen Klemme und Behälter für 10 s
>= 660 V - 6 kV AC zwischen Klemme und Behälter für 10 s
Einschaltstrom 200 x In
Max. Schaltvorgang pro Jahr 5000
Lebensdauer in Stunden 100000 h
Dielektrisches Material Metallisierte Polypropylenfolie mit Zn/Al-Legierung,
Imprägnierungsmaterial Nicht-PCB weiches PUR-Harz
Biologisch abbaubar
Installationstyp Innenmontage
Anschlüsse - Klemmen Doppelte Faston-Klemme
Montagemodus Vertikal
Durchmesser 50 mm
Höhe 245 mm
Produktgewicht 0,7 kg
Montage
Normen IEC 60831-2
IEC 60831-1
Schutzart (IP) IP20
Betriebshöhe 2.000 m
Temperaturklasse D
Umgebungstemperatur bei Betrieb -25…55 °C
Relative Luftfeuchtigkeit 95 %
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Höhe 11,000 cm
VPE 1 Breite 12,000 cm
VPE 1 Länge 28,500 cm
VPE 1 Gewicht 1,009 kg
VPE 2 Art S04
VPE 2 Menge 15
VPE 2 Höhe 30,000 cm
VPE 2 Breite 40,000 cm
VPE 2 Länge 60,000 cm
VPE 2 Gewicht 15,785 kg
VPE 3 Art P06
VPE 3 Menge 60
VPE 3 Höhe 75,000 cm
VPE 3 Breite 60,000 cm
VPE 3 Länge 80,000 cm
VPE 3 Gewicht 71,141 kg
Vertragliche Gewährleistung
Gewährleistung 18 months

Nachhaltigkeit

Environmental data
REACh frei von SVHC Ja
EU-RoHS-Richtlinie Konform
EU-RoHS-Deklaration
WEEE Das Symbol der durchgestrichenen Mülltonne weist darauf hin, dass Elektro- bzw. Elektronik(alt)geräte nicht im Hausmüll entsorgt werden dürfen, sondern vom Besitzer einer getrennten Sammlung für Elektro- und Elektronikaltgeräte zugeführt werden müssen.
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Ja
Rücknahme No
Eingesparte und vermiedene Produktbeiträge Yes
CO2-Bilanz (kg CO2 eq.) 88
Nachhaltige Verpackung Ja
Global warming ; Total life cycle​ 88 kg CO2 eq.
