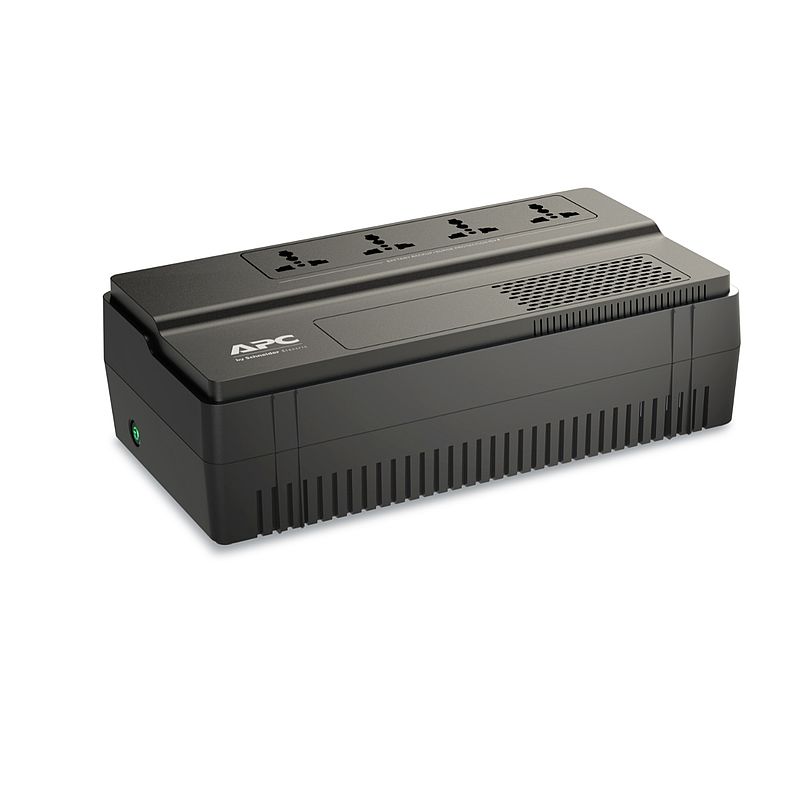

APC EASY UPS BV 500 VA, AVR, Universalausgang, 230 V
BV500I-MSX
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 300 W |
| Rated power in VA | 500 VA |
| Input connection | BS1363A Britisch |
| Output connection | 4 universal receptacle |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Efficiency at full load | 170 - 280 V |
| Maximum configurable power in W | 300 W |
| Output frequency | 50/60 Hz +/-1 Hz nicht synchronisiert |
| UPS topology | Line Interactive |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Maximum configurable power in VA | 500 VA |
| Transfer time | 6 ms typisch, 10 ms max. | Zusatzmerkmale |
| Cable length | 1,50 m |
| Number of cables | 1 |
| Provided equipment | Benutzerhandbuch |
| Redundant | No |
| Color | Schwarz |
| Height | 92,5 mm |
| Width | 160,5 mm |
| Depth | 305 mm |
| Product weight | 3,9 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | No |
| Control panel | LED Statusanzeige mit On-Line: Batteriebetrieb |
| Surge energy rating | 156 J |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Easy UPS |
| Battery type | Lead-acid internal included |
| Mounting mode | Aufputzmontage compact | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Battery life | 3…5 Jahre | Montage |
| Product certification | CE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…90 % |
| Operating altitude | 0 - 6.667 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…90 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 40 dBA |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 4,2 kg |
| VPE 1 Höhe | 23,7 cm |
| VPE 1 Breite | 37,3 cm |
| VPE 1 Länge | 14,3 cm |
| SCC14 | 10731304344060 |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Austauschbare Batterie | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BV500I-MSX_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BV500I-MSX_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
12 Dokumente
| USV-Lösungen, Racks und PDUs - Katalog 2025
15/09/25 · Catalog |
8,6 MB | Download |
| BV500I-MSX REACh-Erklärung
07/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| BV500I-MSX EU-RoHS-Erklärung
07/04/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| EASY UPS BV Family Overview Brochure - 230V
15/03/25 · Catalog |
0,7 MB | Download |
| BACK-UPS BV500I/650I/800I/1000I-MSX
15/03/25 · User guide |
0,7 MB | Download |
| End of Life instructions for BACK UPS _EN 15/03/25 · Circularity Profile | 0,5 MB | Download |
| CE DOC Easy UPS
15/03/25 · Declaration of conformity |
0,2 MB | Download |
| RBC GEWÄHRLEISTUNGSGARANTIE Dokumentieren
15/03/25 · Warranty |
0,3 MB | Download |
| RBC GARANTIE
15/03/25 · Warranty |
0,3 MB | Download |
| BACK-UPS BV500I/650I/800I/1000I-MSX 15/02/25 · User guide | 0,7 MB | Download |
| BACK-UPS BV500I/650I/800I/1000I-MSX 20/01/25 · User guide | 0,7 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
