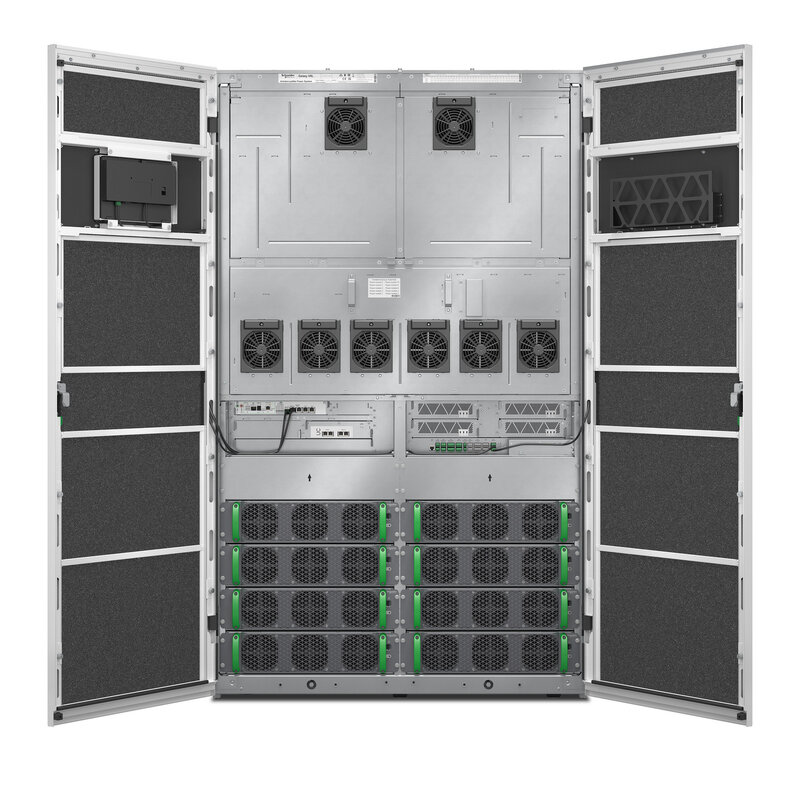

Galaxy VXL USV 1000 kW skalierbar bis 1250 kW, 400 V, Start-up 5x8
GVXL1000K1250HS
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Brochure
|
Download |
|
Circularity Profile
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Certificate of Origin
|
Download |
|
Promotional video
|
Video anzeigen |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Zubehörteile: Kompatible Produkte
Zubehörteile (2)
Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
Kommunikations-Artikel: Kompatible Produkte
Kommunikations-Artikel (4)
Battery Accessories: Kompatible Produkte
Battery Accessories (6)
Batterien: Kompatible Produkte
Batterien (4)
: Kompatible Produkte
(1)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 380 V AC 3 Phasen 400 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 400 V 415 V 380 V |
| Output voltage | 380 V AC 3 Phasen 400 V AC 3 Phasen 415 V AC 3 Phasen |
| Other output voltage | 400 V |
| Rated power in W | 1000 kW |
| Rated power in VA | 1000 kVA |
| Input frequency | 40 - 70 Hz |
| Efficiency at full load | 340 - 460 V 400 V |
| Maximum input current | 1824 A |
| Max short time withstand current | 100 kA |
| Input harmonic distortion | Weniger als 3 % bei Volllast |
| Load power factor | 0,5 voreilend bis 0,5 nacheilend ohne Leistungsminderung |
| Maximum configurable power in W | 1250 kW |
| Harmonic distortion | < 3 % |
| Output frequency | 50...60 Hz |
| Crest factor | 3 |
| UPS topology | Online-Doppelwandlung |
| Output harmonic distortion | < 1% linear load and < 5% non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Bypass type | No bypass |
| Maximum configurable power in VA | 1250 VA |
| Waveform type | Sinuswelle | Batterien und Überbrückungszeit |
| Battery type | VRLA Li-Ion (Lithium-Ionen) |
| Battery voltage | 480 - 576 V DC |
| Discharge battery voltage | 384 V DC |
| Battery charging power | 200 kW Volllast | Zusatzmerkmale |
| Maximum short-circuit current | 100 kA |
| Max bypass input current | 1458 A |
| Bypass current protection | 1458 A |
| Number of power modules | 8 |
| Number of power module free slots | 2 |
| Redundant | Yes |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Color | Weiß |
| Height | 1970 mm |
| Width | 1200 mm |
| Depth | 1000 mm |
| Product weight | 1063 kg |
| Control panel | LCD-Benutzeroberfläche mit Touchscreen |
| Range of product | Galaxy VXL |
| Battery type | Li-Ion (Lithium-Ionen) external sold separately Lead-acid external sold separately |
| UPS connectivity | Embedded network management card 4 | Montage |
| Product certification | IEC 62040-1-1 IEC 62040-2 IEC 62040-3 VFI-SS-111 RoHS |
| Standard | IEC 60721-4-2 Level 2M2 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 5…90 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -25…55 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Heat dissipation | 102389 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 215 cm |
| VPE 1 Breite | 141 cm |
| VPE 1 Länge | 116 cm |
| Verpackungsgewicht (Lbs) | 926 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| Verpackung mit Recycling-Karton | Ja |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| Eingesparte und vermiedene Produktbeiträge | Ja |
| CO2-Bilanz (kg CO2 eq.) | 739429 |
Quecksilberfrei
|
Ja |
| Total lifecycle Carbon footprint | 739 ton CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 15691.618172613997 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 15 692 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 566.3910278235745 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 566 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 376.0659408153084 |
| CO₂-Fußabdruck der Installationsphase [A5] | 376 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 720326.6078887399 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 720 ton CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 2467.9938927964345 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 2 468 kg CO2 eq. |
| Verpackung ohne Kunststoff | Nein, wir haben den Einsatz von Kunststoff in der Verpackung gemäß den Vorschriften und unter Berücksichtigung von Qualitäts- und Sicherheitsstandards minimiert |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Recyclingfähigkeitspotential in % | 65 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=GVXL1000K1250HS_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=GVXL1000K1250HS_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
29 Dokumente
