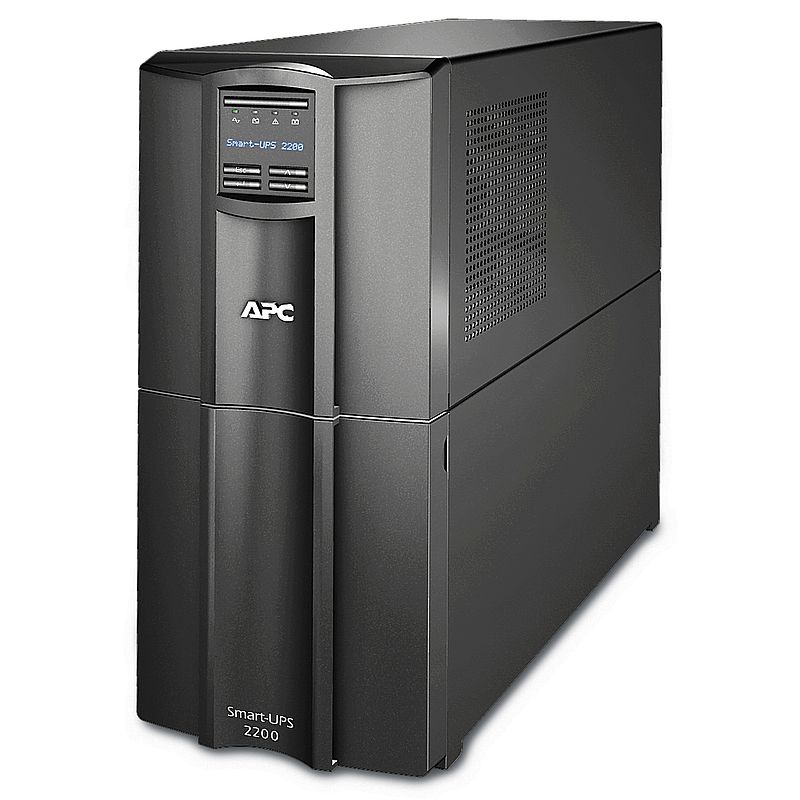

APC Smart-UPS, Line Interactive, 2200VA, Tower, 120V, 8 NEMA 5-15R und 2 NEMA 5-20R-Stecker, SmartConnect Port+SmartSlot, AVR, LCD
SMT2200C
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Brochure
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Promotional video
|
Video anzeigen |
|
Technical illustration
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
Quick start guide
|
Download |
|
User guide
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Subscriptions: Kompatible Produkte
Subscriptions (6)
Smart Slots Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 120 V AC 1 Phase |
| Other input voltage | 110 V 125 V |
| Output voltage | 120 V AC 1 Phase |
| Other output voltage | 110 V 125 V |
| Rated power in W | 1920 W |
| Rated power in VA | 1920 VA |
| Input connection | NEMA 5-20-polig |

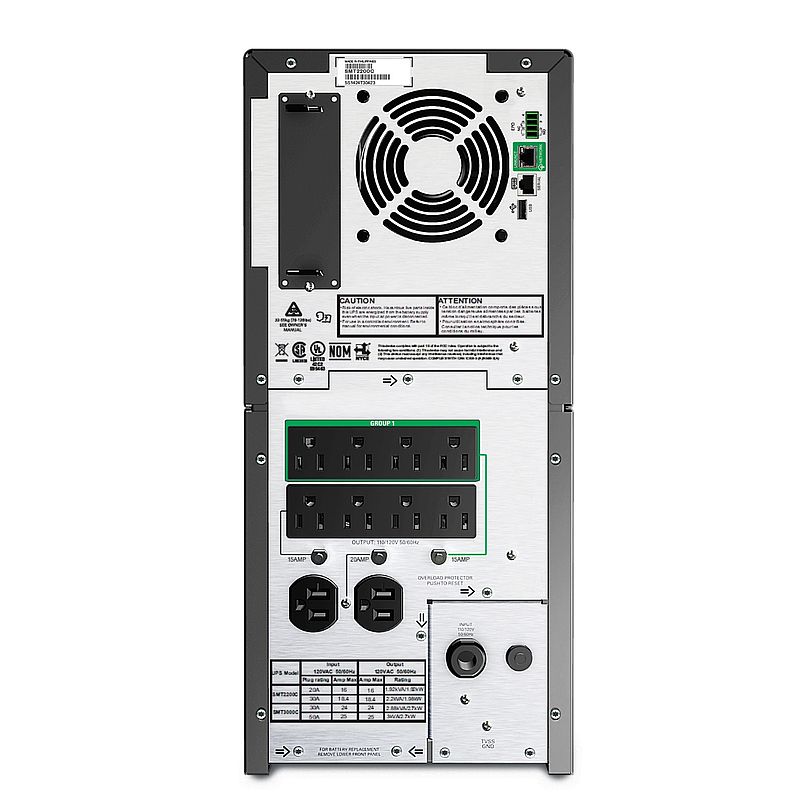

| Output connection | 8 NEMA 5-15R 2 NEMA 5-20R |
| Efficiency at full load | 75 - 154 V einstellbar 82 - 144 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 6 ms typisch, 10 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation | Zusatzmerkmale |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Provided equipment | Smart UPS Signalisierungskabel RS-232 USB-Kabel |
| Additional specification | Cloud-enabled monitoring |
| Redundant | No |
| Color | Schwarz |
| Height | 435 mm |
| Width | 196 mm |
| Depth | 544 mm |
| Product weight | 50,91 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Free slot | 1 |
| Surge energy rating | 530 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Software package | SmartConnect Software für die Fernüberwachung der Stromversorgung Die Verfügbarkeit der Funktionen hängt von den Nutzungsbedingungen ab. |
| Communication port support | SmartConnect-Ethernet-Anschluss: für die Cloud-Überwachung Die Verfügbarkeit der Funktionen hängt von den Nutzungsbedingungen ab. |
| UPS connectivity | Serial port USB port SmartConnect port Available expansion slot |
| Battery type | Lead-acid internal included |
| Mounting mode | Tower | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 271 W bewertet | Montage |
| Product certification | cULus ENERGY STAR V2.0 (USA) |
| Equipment protection policy | Kompletter Nutzungszeitraum: 150.000 USD |
| Acoustic level | 45 dBA |
| Heat dissipation | 275 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 60,91 kg |
| VPE 1 Höhe | 55,9 cm |
| VPE 1 Breite | 76,2 cm |
| VPE 1 Länge | 38,1 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 Batterie|36 USV |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 2843 |
| Total lifecycle Carbon footprint | 2 843 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1998.2586188935 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 998 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0208126365 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 23.6483369982 |
| CO₂-Fußabdruck der Installationsphase [A5] | 24 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 815.1638680519 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 815 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 5.5405466274 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 6 kg CO2 eq. |
| ENERGY STAR® | ENERGY STAR UPS V2.0 (USA) |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SMT2200C_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SMT2200C_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 58 |
